OPERATION
Depth control
Operation_Pic_number:1
Depth control (O) for setting the working depth.
Direction of rotation for depth control.
right = Raise
left = Lowering
Lift height limiting
Operation_Pic_number:1
Text-module
Rotary control (P3) for setting the lift height limit.
The lift height limit can be set steplessly from left
to right.
right = Maximum lift
left = min. lift
Bar indicator (A1) from 30% - 100%.

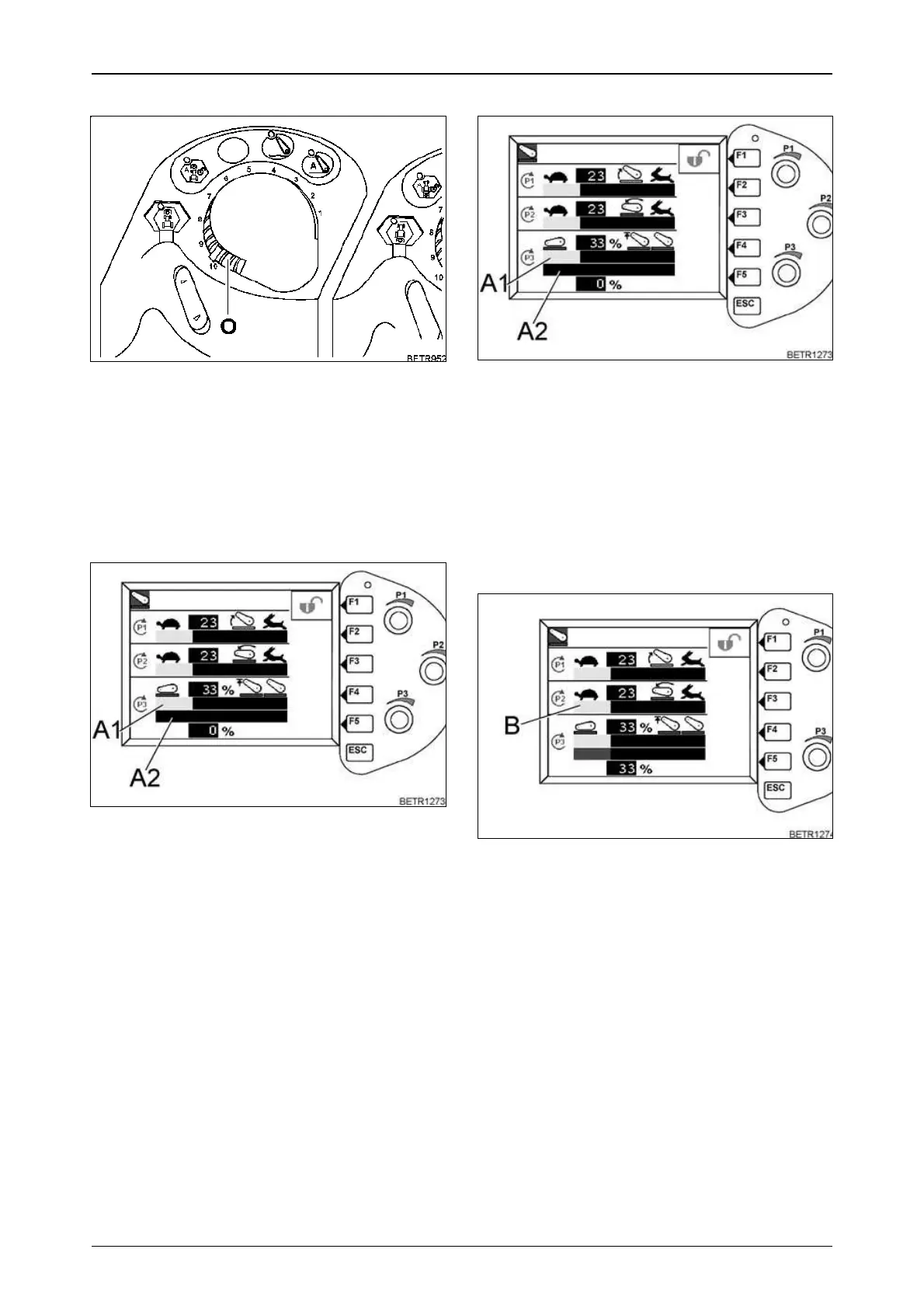

Fig.206
Fig.207
Position of the power lift
Operation_Pic_number:1
Text-module
Use rotary control (P3) to set the position of the
power lift.
The position of the power lift can be readjusted
steplessly from left to right.
right = all the way up.
left = all the way down.
Indicator bar (A2) from 0% - 100%.
Lowering speed
Operation_Pic_number:1
Rotary switch (P2) for selecting the lowering
speed.
Positions of bar indicator (B).
right = Max. lowering speed.
left = no lowering.
Lowering speed can be adjusted steplessly bet-
ween the two positions.
Fig.208
Fig.209
