Festo control block CPX-CEC
3. Select the relevant interfaces.

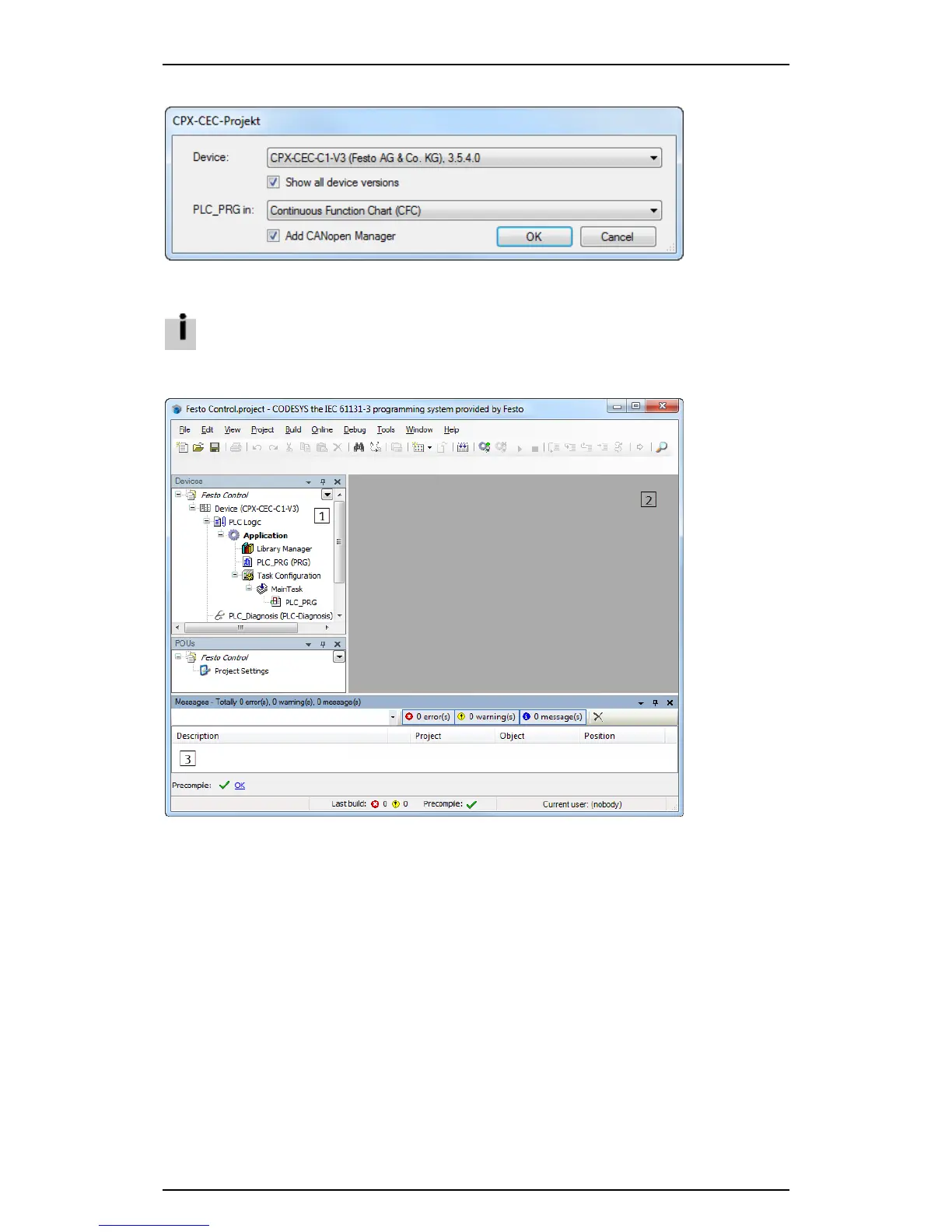

Figure: "New Project" dialog – selecting the interfaces
Options not supported by the respective device are inactive (shown in grey) and cannot be
selected.
The Codesys program window opens with the newly created project.
1
Device window with CPX-CEC-...-V3, its interfaces and PLC logic
2
Editing window with tabs for the objects activated in the device window
3
Message window with information about the CPX-CEC-...-V3 as well as error messages and
warnings
Figure: Codesys program window with selected CPX-CEC-...-V3
22
