Festo control block CPX-CEC
4.14.2 Starting and monitoring the application
The application can be started on the CPX-CEC-...-V3 if error-free data has been transferred.
Use one of the following commands to start the application:
– Click the icon in the toolbar of the Codesys program window
– Menu command [Debug] [Start]
– Function key F5.
The entries for the CPX-CEC-...-V3 as well as its application are shown against a green background in the
device window; [run] appears after the application "CPX-CEC-...-V3_Code". The circular arrows in front of
the various devices of the CPX-CEC-...-V3 light up green.
The application on the CPX-CEC-...-V3 is running, the "Run" status LED lights up green.

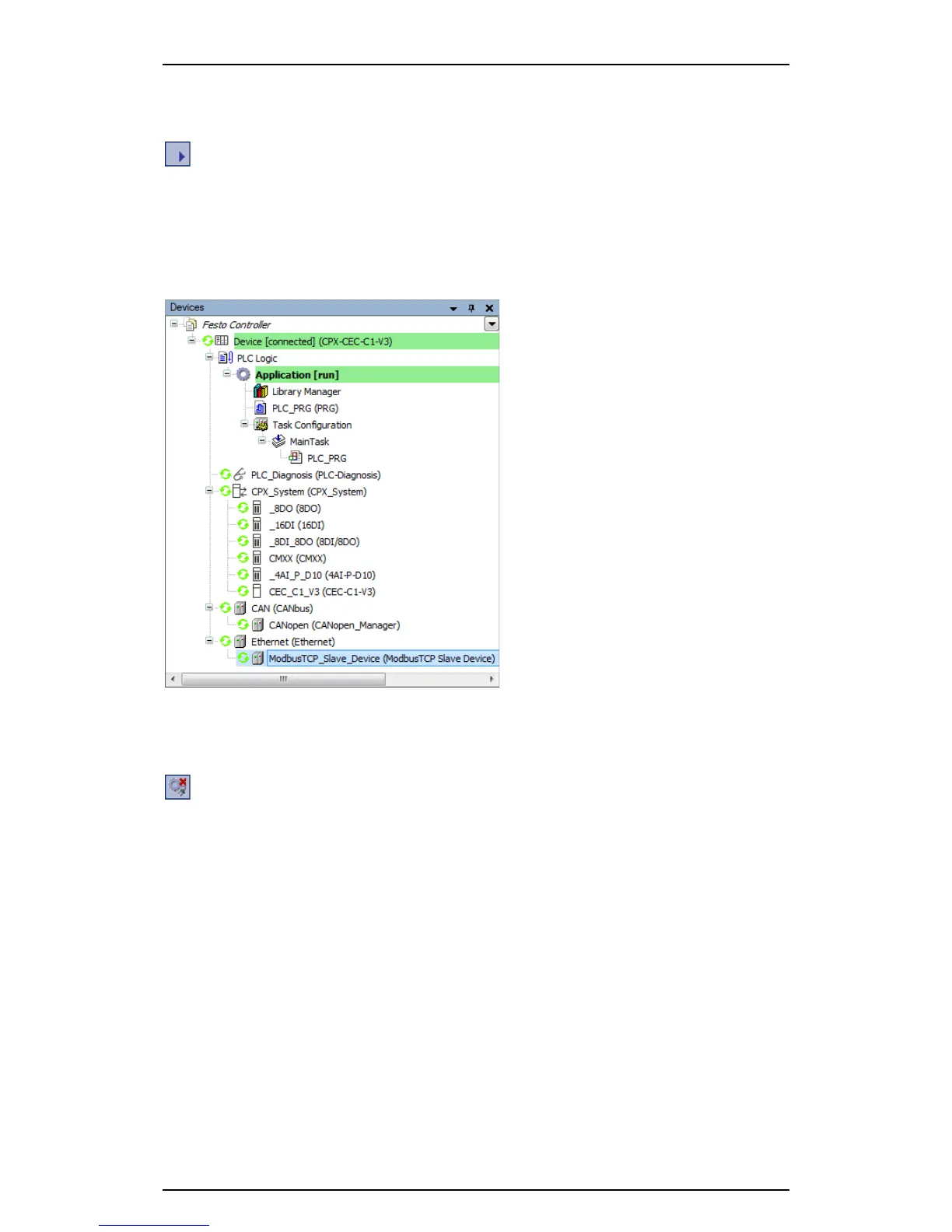

Figure: Device window with CPX-CEC-...-V3 in debug mode
4.14.3 Logout
Use one of the following commands for logout:
– Click the icon in the toolbar of the Codesys program window
– Menu command [Online] [Logout]
– Key combination CTRL+F8.
Further information on monitoring and controlling the application can be found in the online Help for
Codesys.
