Festo CPX-CEC-S1-V3 User Manual

Festo control block CPX-CEC
4.13.2 CPX-CEC-…-V3 as Modbus TCP slave device

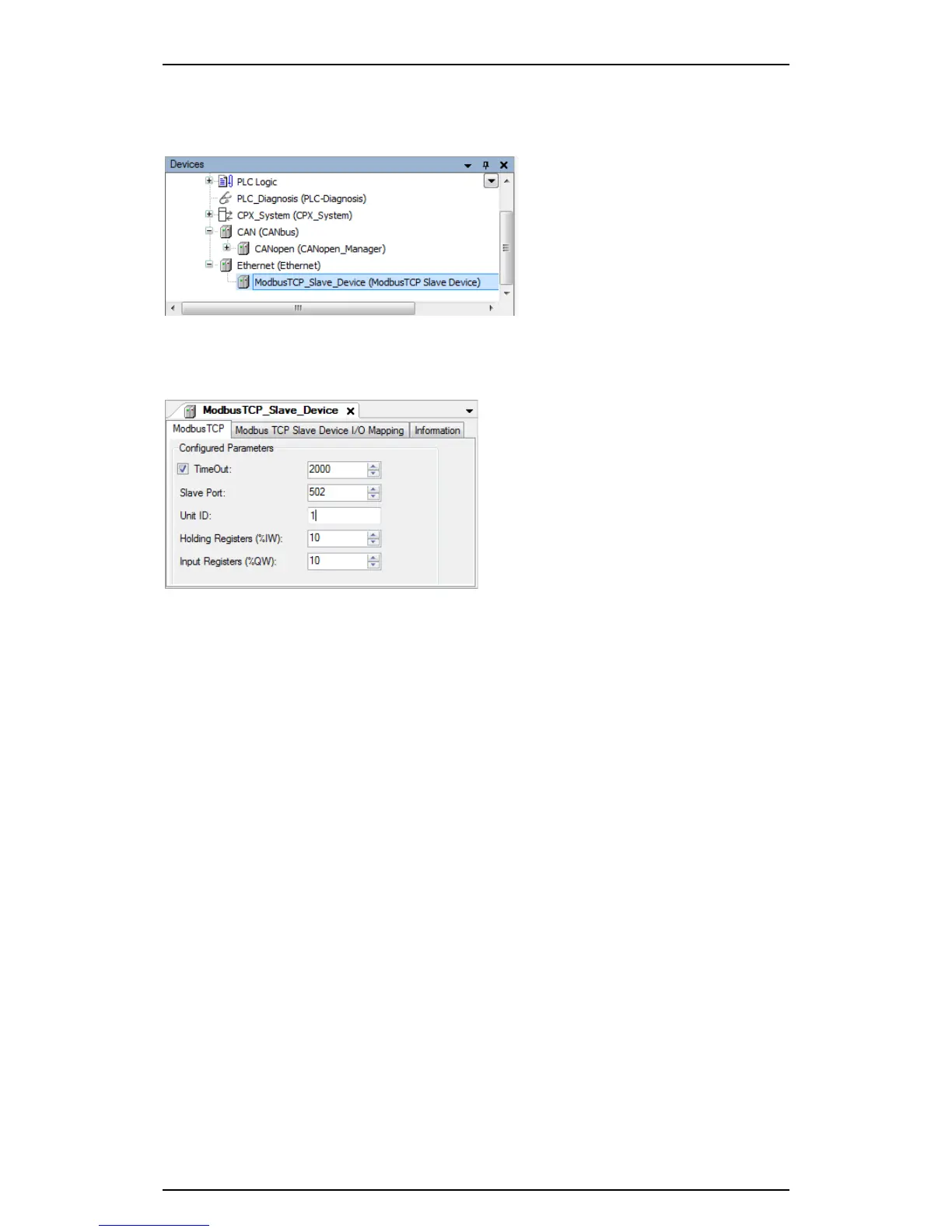

1. Highlight the "Ethernet" branch and add the module "Modbus TCP Slave Device" via the context
menu.
Figure: Selecting "Modbus TCP Slave" in the "Ethernet" branch
2. Highlight the branch of the device being parameterised as a "Modbus TCP Slave Device".
Several tabs for parameterising the selected "Modbus TCP Slave Device" are displayed in the workspace.
Figure: [Modbus TCP] tab
3. Enter the IP address for the Modbus TCP slave device.
4. Enter the unit ID for the Modbus TCP slave device.
5. Enter the port for the Modbus TCP slave device.
