Festo control block CPX-CEC
The "PLC-Diagnosis" dialog provides the following functions:
– Updating the diagnostic information
– Graphical overview of PLC diagnosis
– Exporting all messages to a CSV file
– Selection filter for displaying the diagnostic messages:
– Error
– Warning
– Information
– Error number
– Application
5.3.2 Diagnostic messages on the [Log] tab
Diagnostic information is displayed on the [Log] tab.
• Select the logger: "FestoLog".

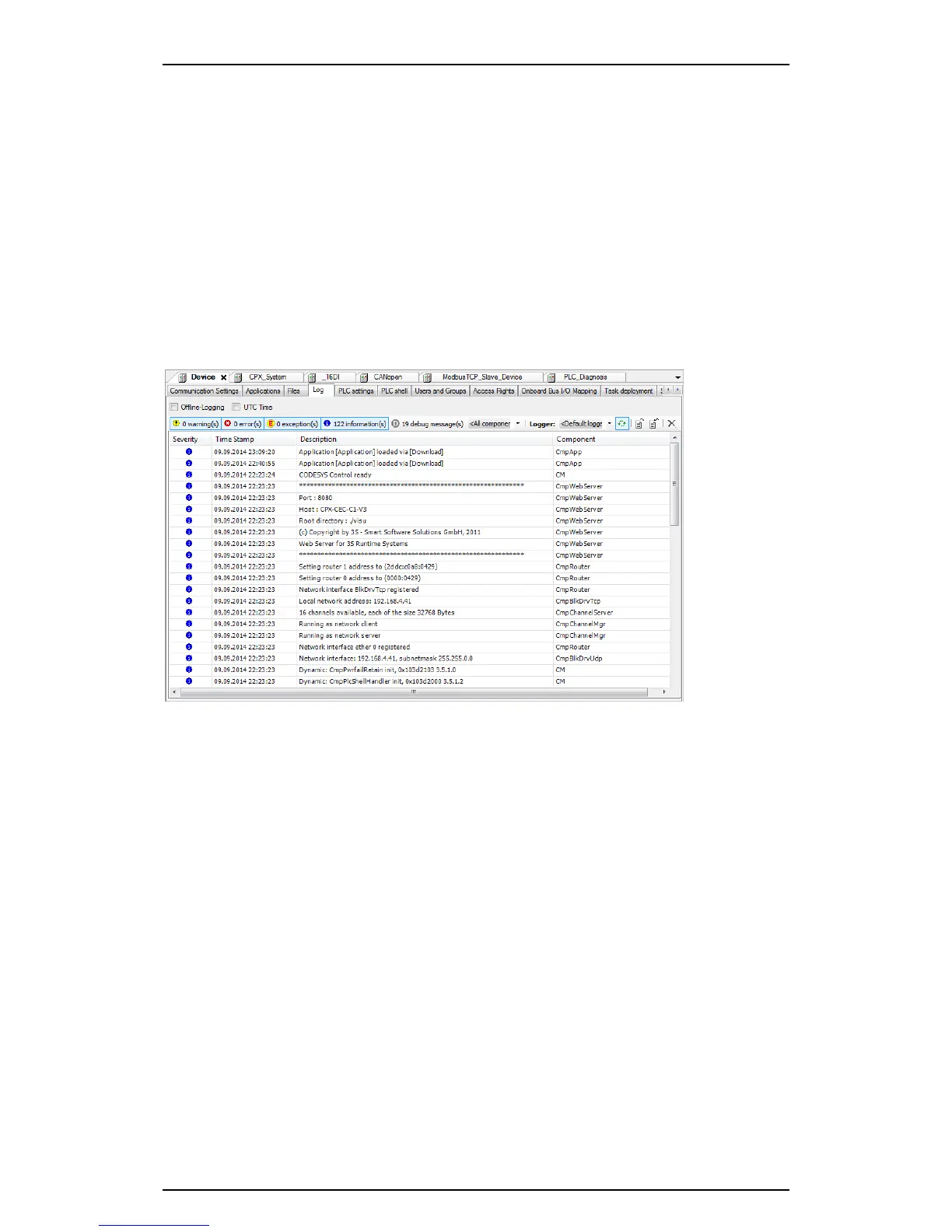

Figure: Diagnostic display on the [Log] tab with the "FestoLog" logger.
61
