Festo EMCS-ST - LED Display Parameter

Festo — EMCS-ST — 2021-03b
Diagnostics and malfunctions
81
Function LED Meaning
"Reference"
blue light
–
"Reference" menu selected
–
Drive system referenced
–
Homing stopped
blue flashing
–
"Reference" menu activated
–
Reference end position configurable
–
Start homing with end position determination
"Start Press"
blue light
–
"Start Press" menu selected
blue flashing
–
"Start Press" menu activated
–
Start "Start Press" motion
"Demo"
blue light
–
"Demo" menu selected
blue flashing
–
"Demo" menu activated
–
Start "Demo" motion

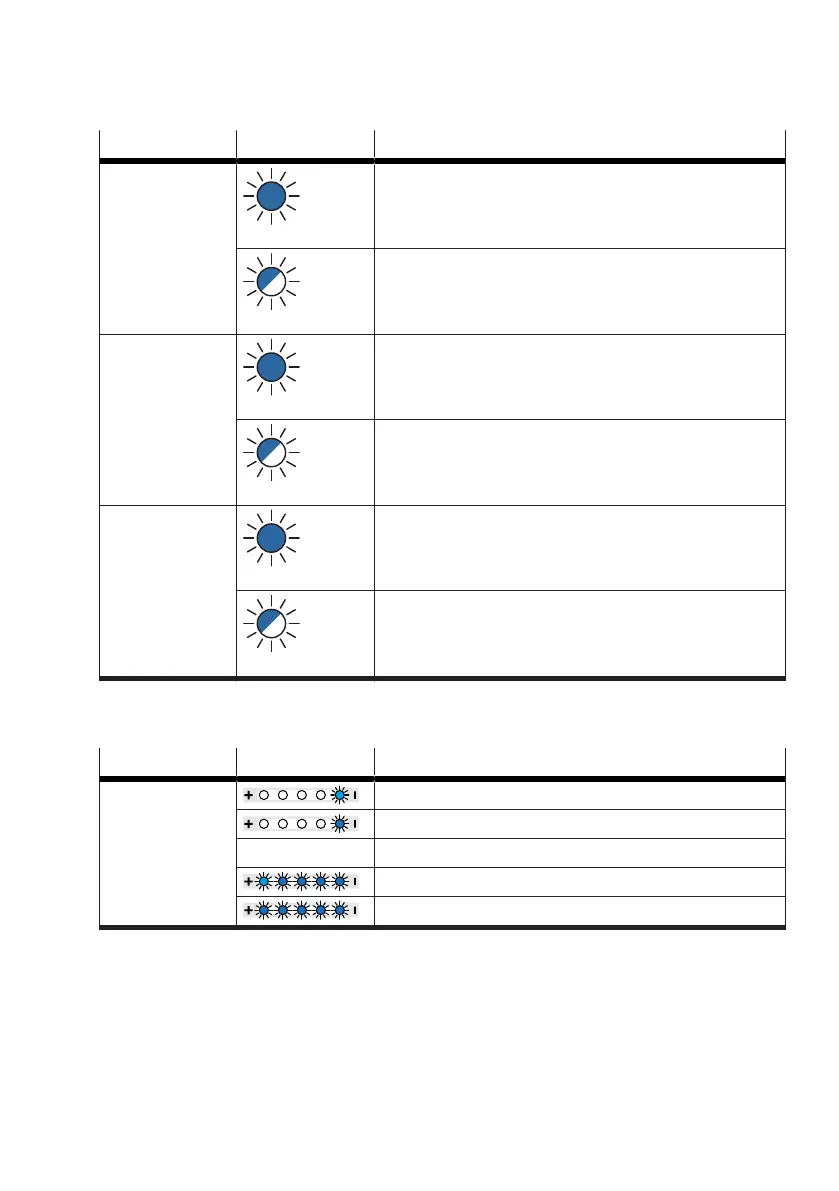

Tab. 39: "Menu" LED display
12.1.3
LED display "Parameter"
Function LEDs Meaning
"Speed Out"
"Speed In"
"Force"
1)
10% of maximum value
20% of maximum value
… …
90% of maximum value
100% of maximum value
1) The force is controlled and evaluated by regulating the motor current. A torque level or a linear force can be determined from the
level of current measured depending on the mechanism of the drive. The target is set as a percentage of the rated motor current and
may deviate from the actual force on the drive unit. If force levels are set low, the influence of friction in the system on the running
behaviour and the actual force on the drive unit must also be taken into account.
Tab. 40: LED display "Parameter"
