Example of addressing type 03 MIDI/MAXI valves
Please note
If a valve location occupies two addresses, the assignment is as follows:
• low value addresses ⇒ pilot solenoid coil 14
• higher value addresses ⇒ pilot solenoid coil 12
4-input module
8-input module
4-output module
4-output module
Single sub-base
Double sub-base
Round up
Double sub-base Double sub-base
Double sub-base
Double sub-base

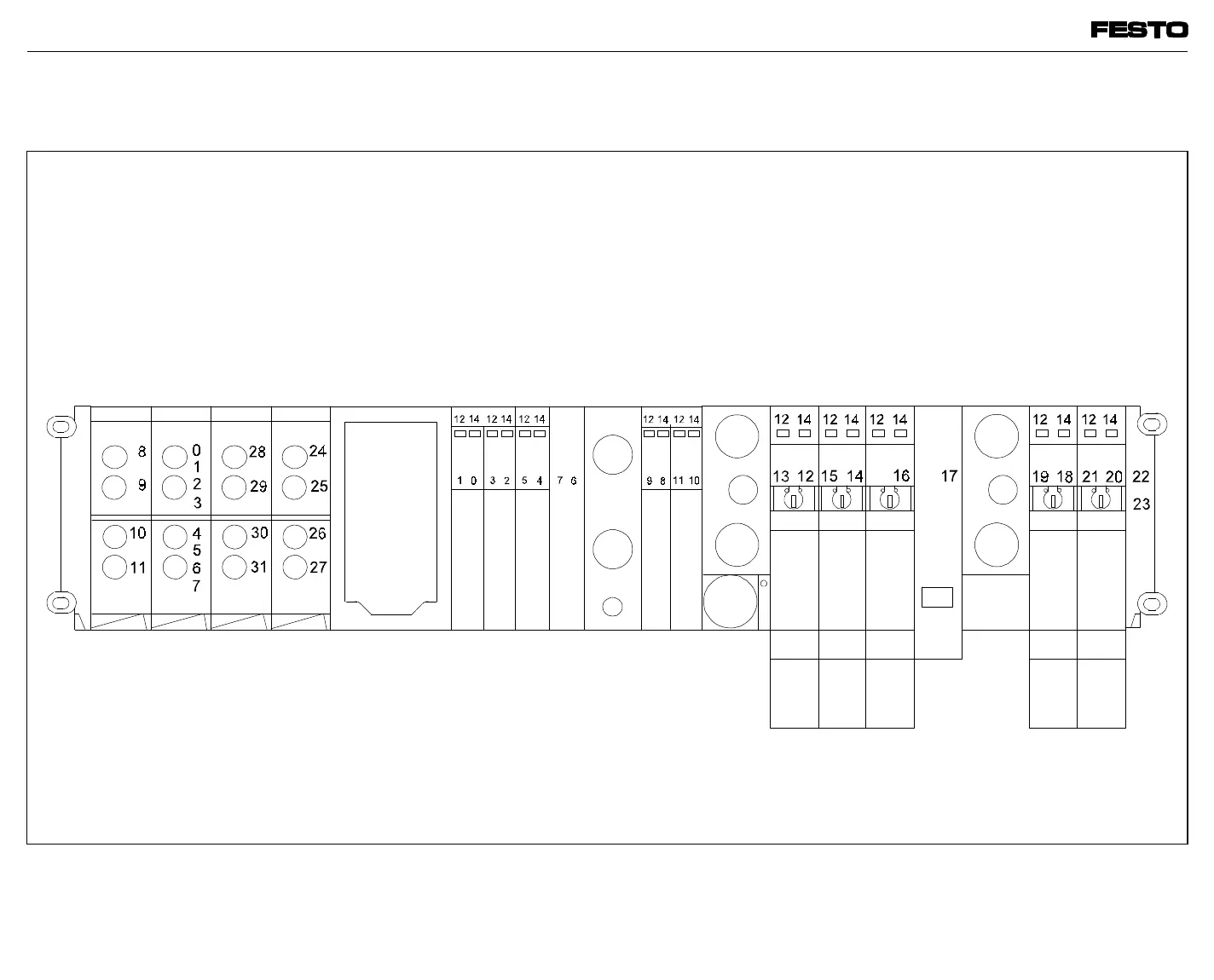

Fig. 4/6: Address assignment of a valve terminal type 03 (MIDI/MAXI valves)
