Example of addressing type 05 ISO valves
Please note
If a valve location occupies two addresses, the assignment is as follows:
• low value addresses ⇒ pilot solenoid coil 14
• higher value addresses ⇒ pilot solenoid coil 12
4-input module 8-input module 4-output module 4-output module Single solenoid valve
Double solenoid valve
Do not round up Double solenoid valve
Double solenoid valve Double solenoid valve
Double solenoid valve Single solenoid valve Double solenoid valve

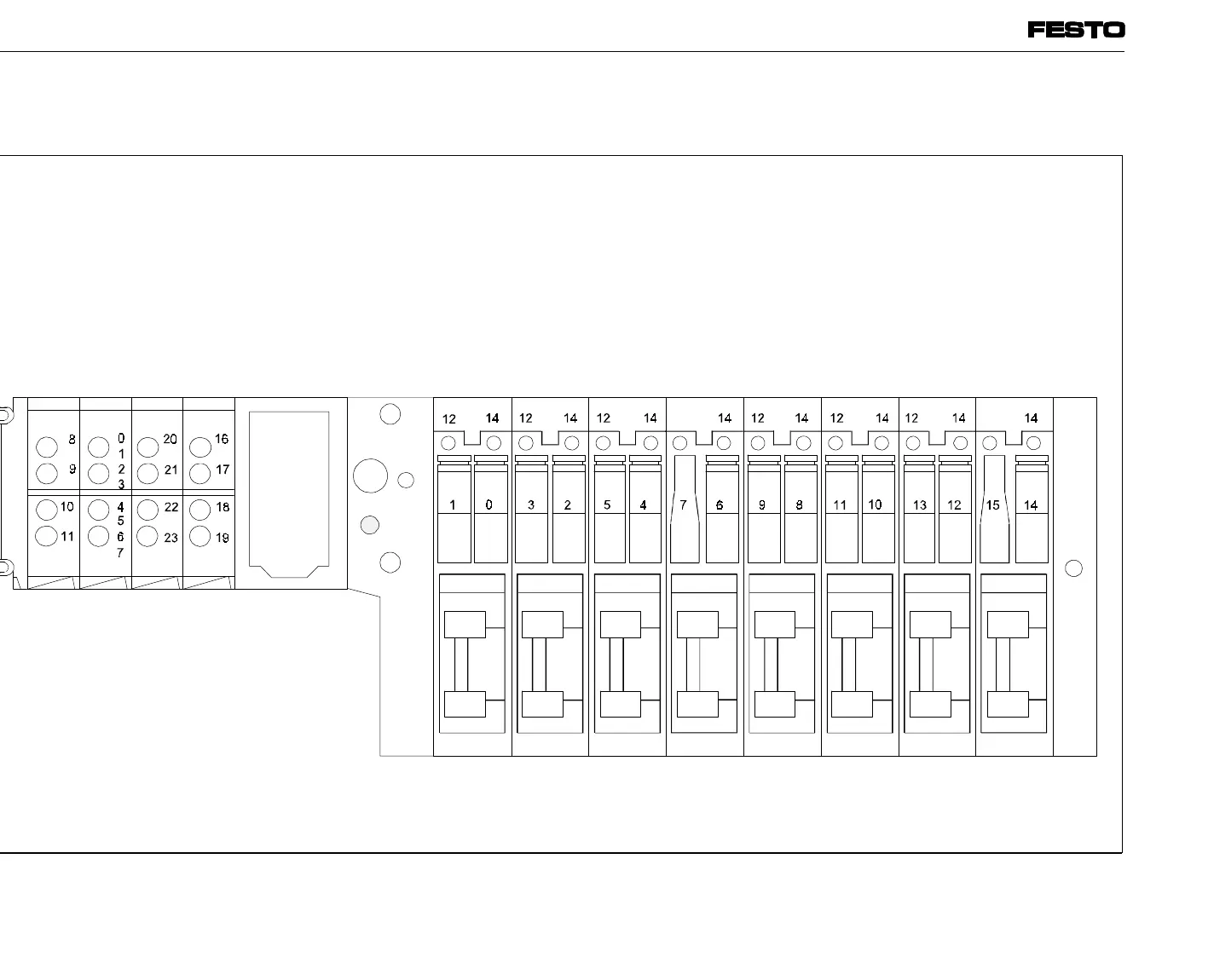

Fig. 4/7: Address assignment of a valve terminal type 05 (ISO-valves)
