Valves
There is a yellow LED for each valve solenoid
coil on the valve bridges. This LED shows the
switching status of the valve solenoid coil.
LED Switching position of
valve solenoid coil
Meaning
Yellow out Basic position Logic 0 (no signal)
Yellow alight Switch position
or
basic position
Logic 1 (signal applied)
Logic 1 but:
Operating voltage of outputs is
below permitted tolerance range
(< 21.6V)
or
compressed air supply not correct
or
pilot exhaust blocked
or
Service case

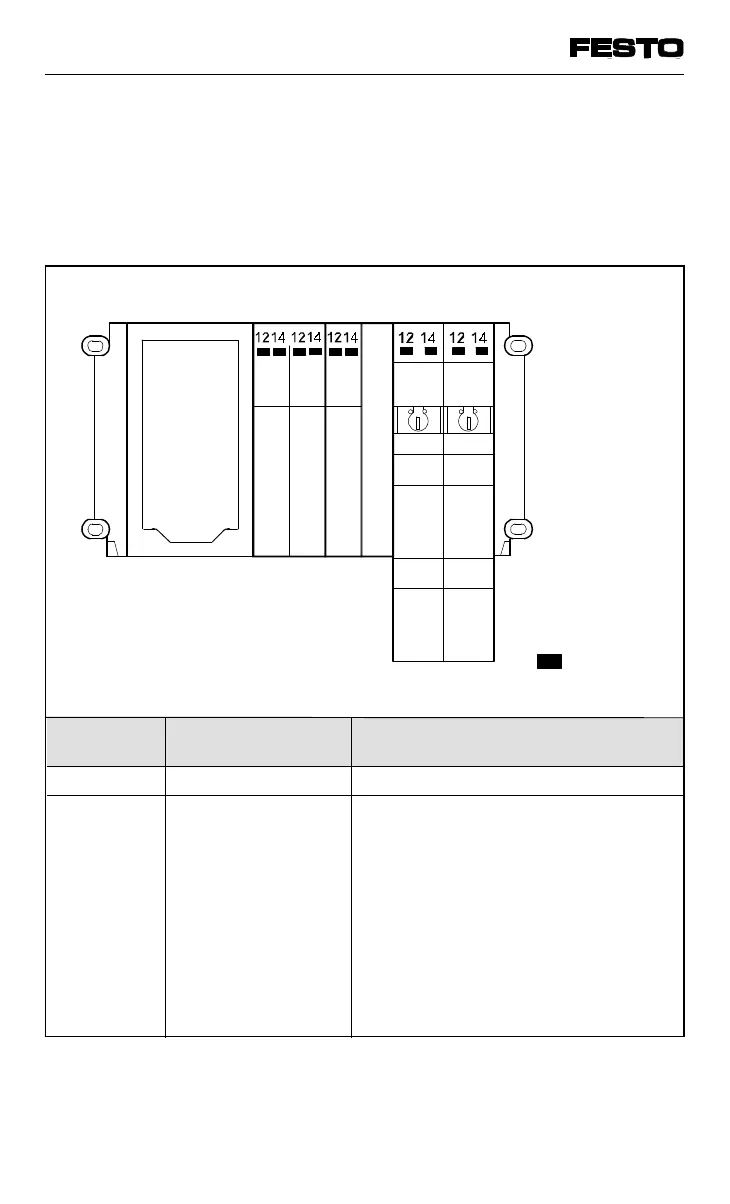

Fig. 5/4: LED display – switching status of solenoid valve coil
yellow LEDs
VIFB13 - 03/05 5. Diagnosis/error treatment
5-6
9701 NH
