Hat rail clamping unit (type 03)
The hat rail clamping unit is required if the
terminal is to be fitted onto a hat rail (support rail
as per EN 50022). The hat rail clamping unit is
fastened to the back of the end plates as shown
in the following diagram:
Before fitting ensure that:
• the fastening surfaces are clean (cleaned with
spirit)
• the flat head screws are tightened (6)
After fitting ensure that:
• the levers are secured with a retaining screw
(7).
1 Rubber foot, self-adhesive
2 Clamping elements
3 Left-hand lever *)
4 Right-hand lever *)
5 O ring
6 Flat head screw
7 Retaining screw
*) Levers differ in length for MIDI or MAXI

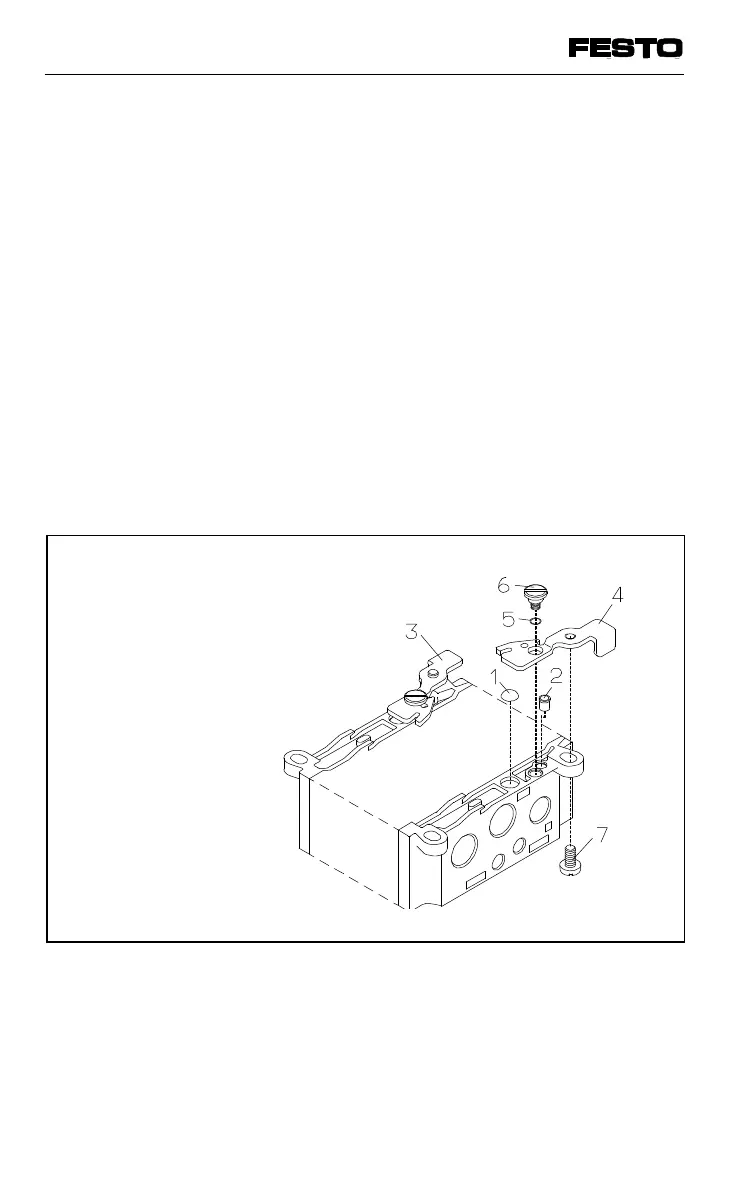

Fig. 2/3: Fitting the hat rail clamping unit
VIFB13 - 03/05 2. Fitting
2-8
9701 NH
