2.2 TYPE 03: FITTING THE VALVE TERMINAL
Wall fitting (type 03)
WARNING
With long terminals use additional supporting
brackets every 200 mm. This is to avoid the
following:
•
overloading the fastening eyes on the
left-hand end plate
•
the terminal sagging
•
natural resonances
Proceed as follows:
• Calculate the weight of the terminal (weigh or
estimate). General rule:
• Make sure that the fastening surface can car-
ry this weight.
• Fasten the terminal with four M6 screws as
shown below (fitting position as desired). Use
washers if necessary.
7.6 mm
M6

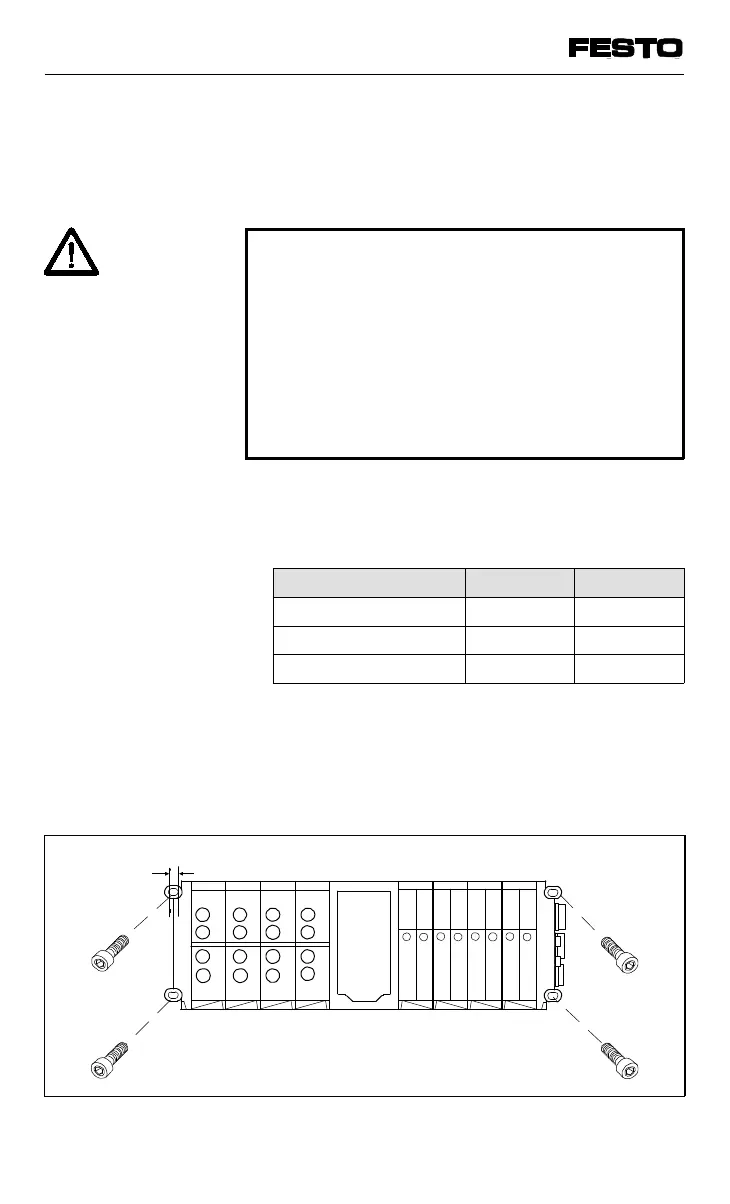

Fig. 2/4: Fitting terminal type 03 onto a wall
MIDI MAXI
per pneumatic module 800 g 1200 g
per node 1000 g 1000 g
per electronic module 400 g 400 g
VIFB13 - 03/05 2. Fitting
9701 NH 2-9
