• Make sure that the fastening surface can
carry this weight.
• Fit a hat rail (support rail EN 50022 - 35x15;
width 35 mm, height 15 mm).
• Fasten the hat rail to the mounting surface at
least every 100 mm.
• Hang the terminal onto the hat rail. Secure
the terminal on both sides against tilting or
slipping with the hat rail clamping unit (see
diagram below).
• If the terminal is fitted in a sloping position or
at a point subjected to vibration, use two
screws (7) to protect the hat rail clamping unit
against unintentional loosening/opening.
Hat rail clamping unit
locked
Retaining screw (7)
Valve terminal
type 03

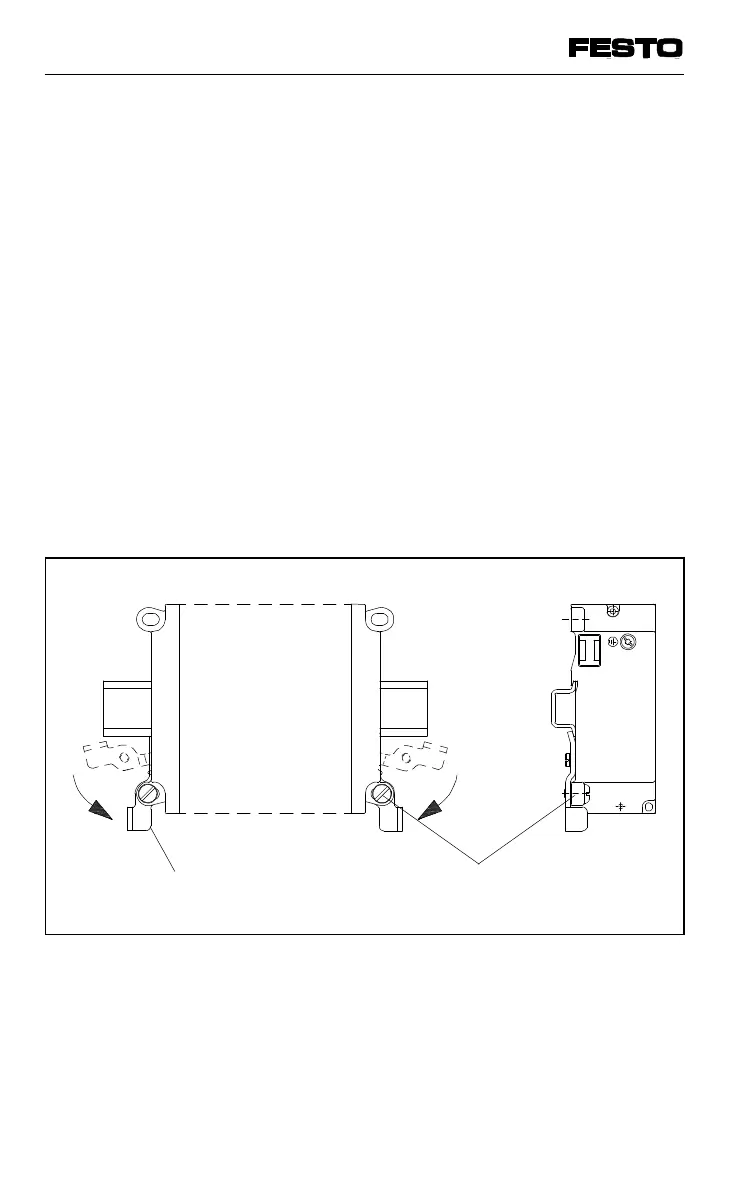

Fig. 2/5: Fitting the valve terminal type 03 onto a hat rail
