3. Installation
3-8
Festo P.BE-SPC11-SYS-ASI -EN en 0203NH
Proportional directional control valv e ( 5 )
Arrange the tubing between the val ve (MPYE-5-...) and the
drive symmetrically.
Recommendation for linear drives and drives with piston rod:
tubing length = cylinder length.
The diagram below shows as an example the tubing of a cylin-
derwithanMPYE-5-...whenanSPC11isusedwithoutan
emergency stop circuit.
1
2
1 Proportional directional control val ve type MPYE-5-...-...
2 Service unit with 5 µm filter without lubricator

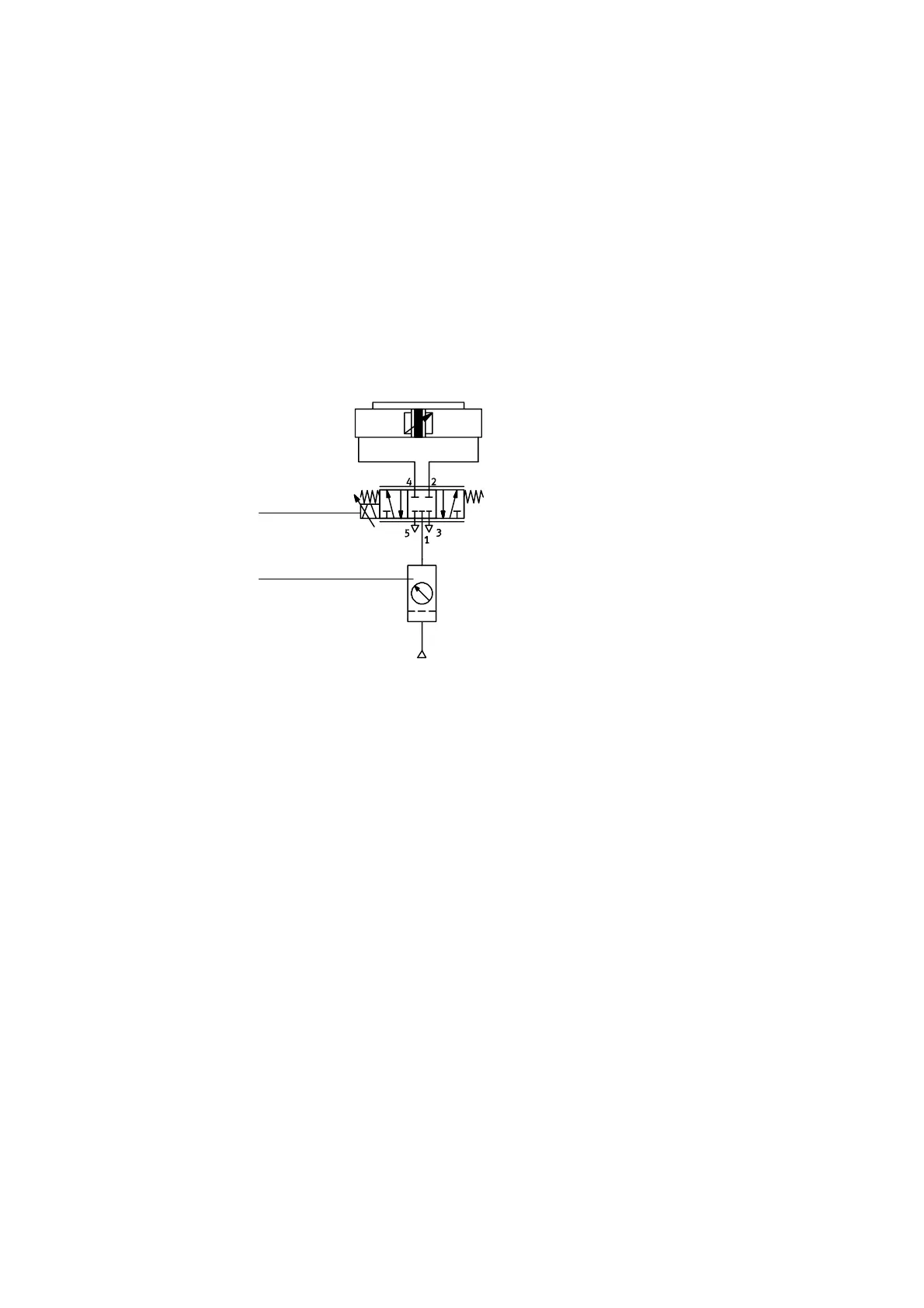

Fig. 3/2: Pneumatic circuit diagram
Fit the valve in accordance with the operating instructions
supplied with the valve.
