3. Installation
3-9
Festo P.BE-SPC11-SYS-ASI-EN en 0203NH
S If the proportional directional control valve is to be used
in an environment subjected to heavy electrical interfer-
ence, it should be electrically isolated from the mounting
surface.
Fitting onto moving parts:
S If fitted to moving parts, the proportional directional con-
trol valve must be mounted at right-angles to the direc-
tion of movement. Acceleration forces then have no influ-
ence on the valve slide setting.
12
3
1

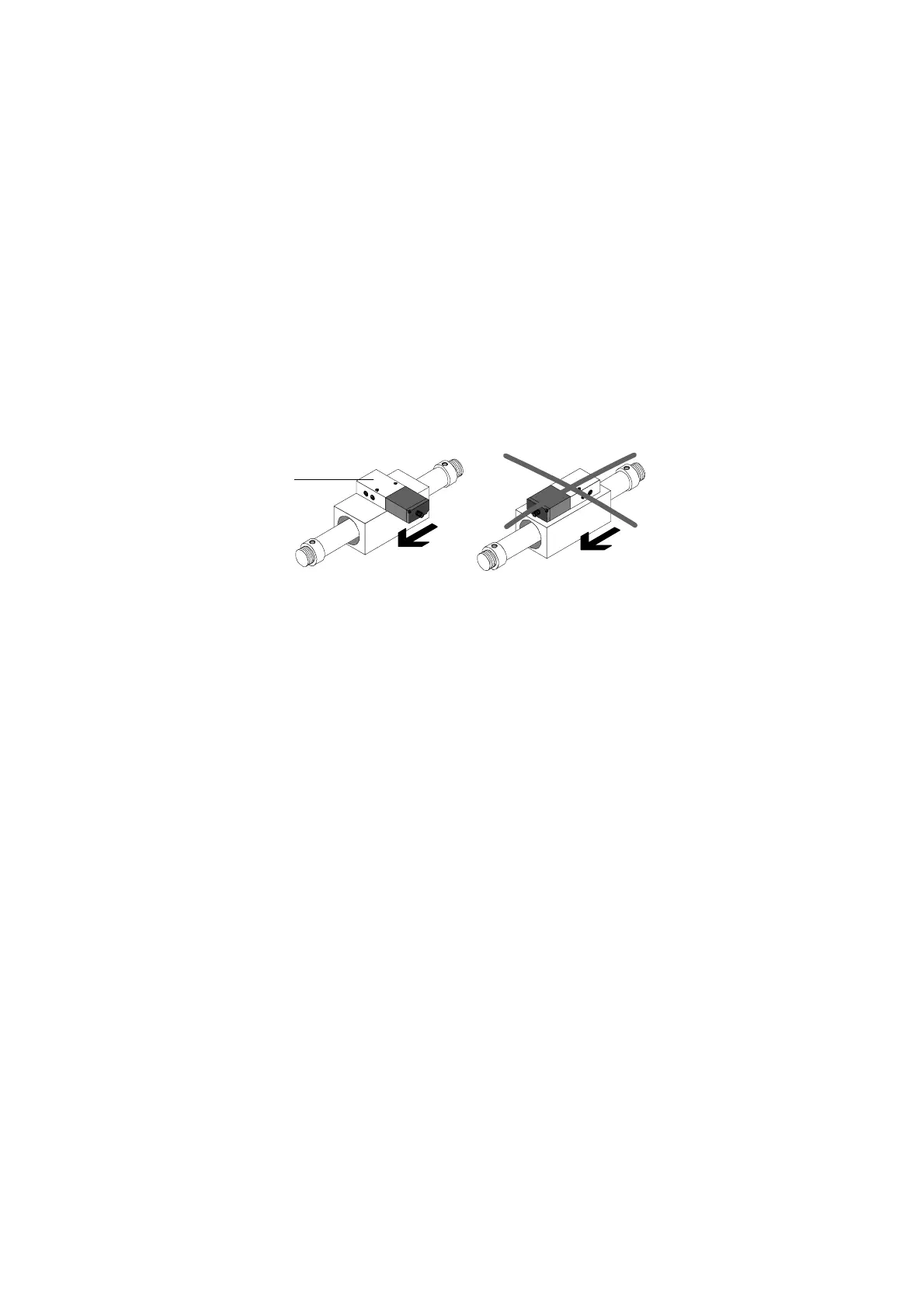

Fitting at right angles to the direction of movement
2 Not permitted
3 Proportional directional control valve type
MPYE-5-...-...-
Fig. 3/3: Fitting to moving parts
Use silencers with a large flow rate UC-M5, U-1/8, U-1/4 or
U-3/8.
