3. Installation
3-13
Festo P.BE-SPC11-SYS-ASI-EN en 0203NH
With type MME-MTS-...-AIF:
Please note
The mechanical work path (possible slide path) of measur-
ing system type MME-MTS-...-AIF is longer than the electri-
cal work path (usuable strok e leng th).
Fit measuring system type MME-MTS-...-AIF so that the elec-
trical work path (see type designation MME-MTS-...-AIF) of the
measuring system is symmetrical to the complete cylinder
stroke.
1 Remaining slide
path
2 Electrical work
path (usable
stroke length)
3 Mechanical work
path (possible
slide path)
1
1
2
3

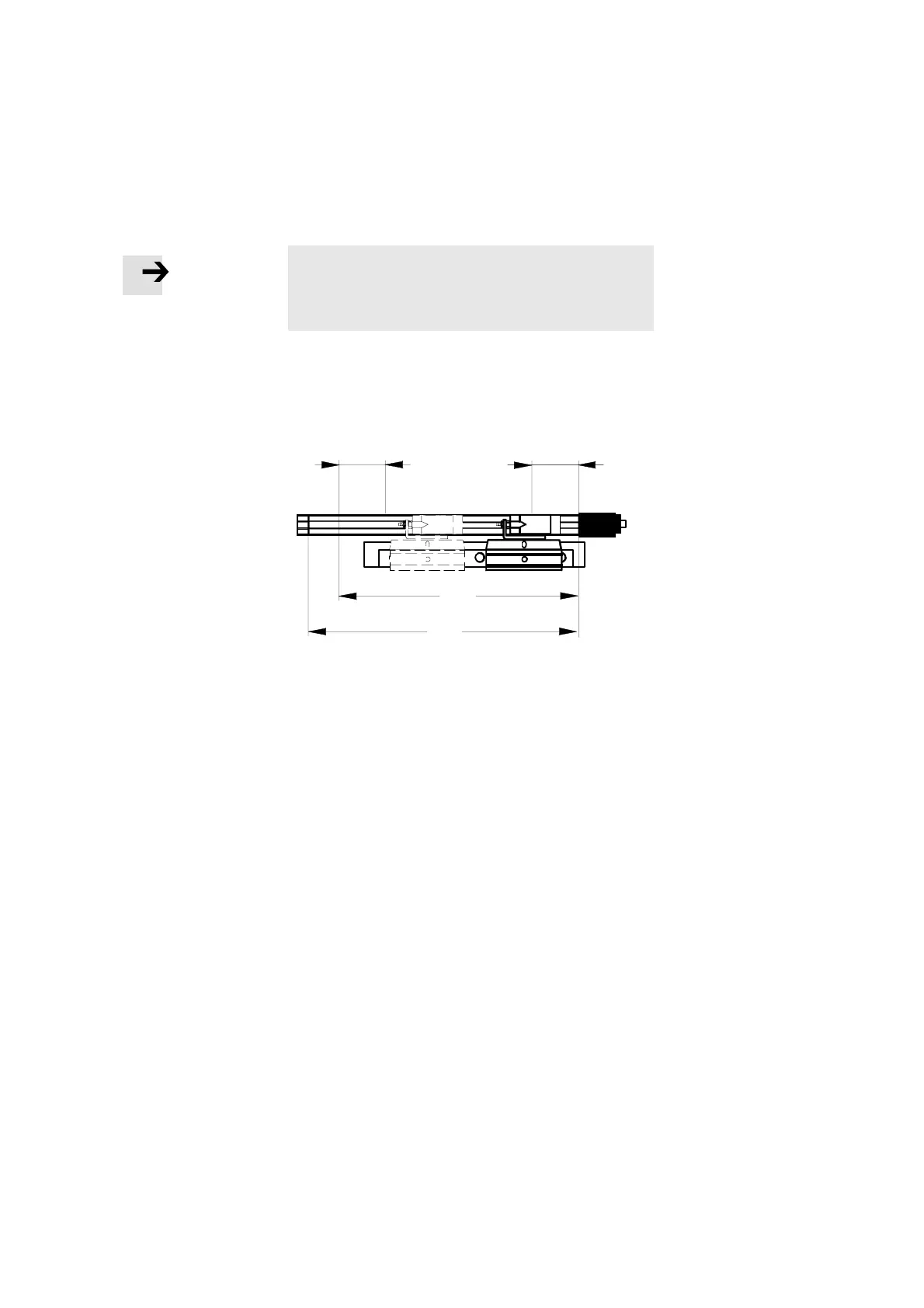

Fig. 3/6: Usable stroke length with type MME-MTS-...-AIF
