USING THE E-41 39
Network Status LEDs
Two LEDs next to the Ethernet connector indicate the network speed. When a data transfer
occurs between the E-41 and the network, the appropriate LED(s) blink to indicate network
activity. For additional network information, see Configuration and Setup on the
User Documentation CD.
Make sure that you connect the cable to the correct RJ-45 port (see Figure 6 on page 28 and
Figure 7 on page 29). The network and copier/printer interface cables look similar but are not
interchangeable. The network cable at the customer site is a straight-through Ethernet cable
that connects to the upper RJ-45 port on the E-41 back panel. The copier/printer interface
cable included with the E-41 is a 39.3 ft. Ethernet crossover cable that connects to the lower
RJ-45 port on the E-41 back panel.

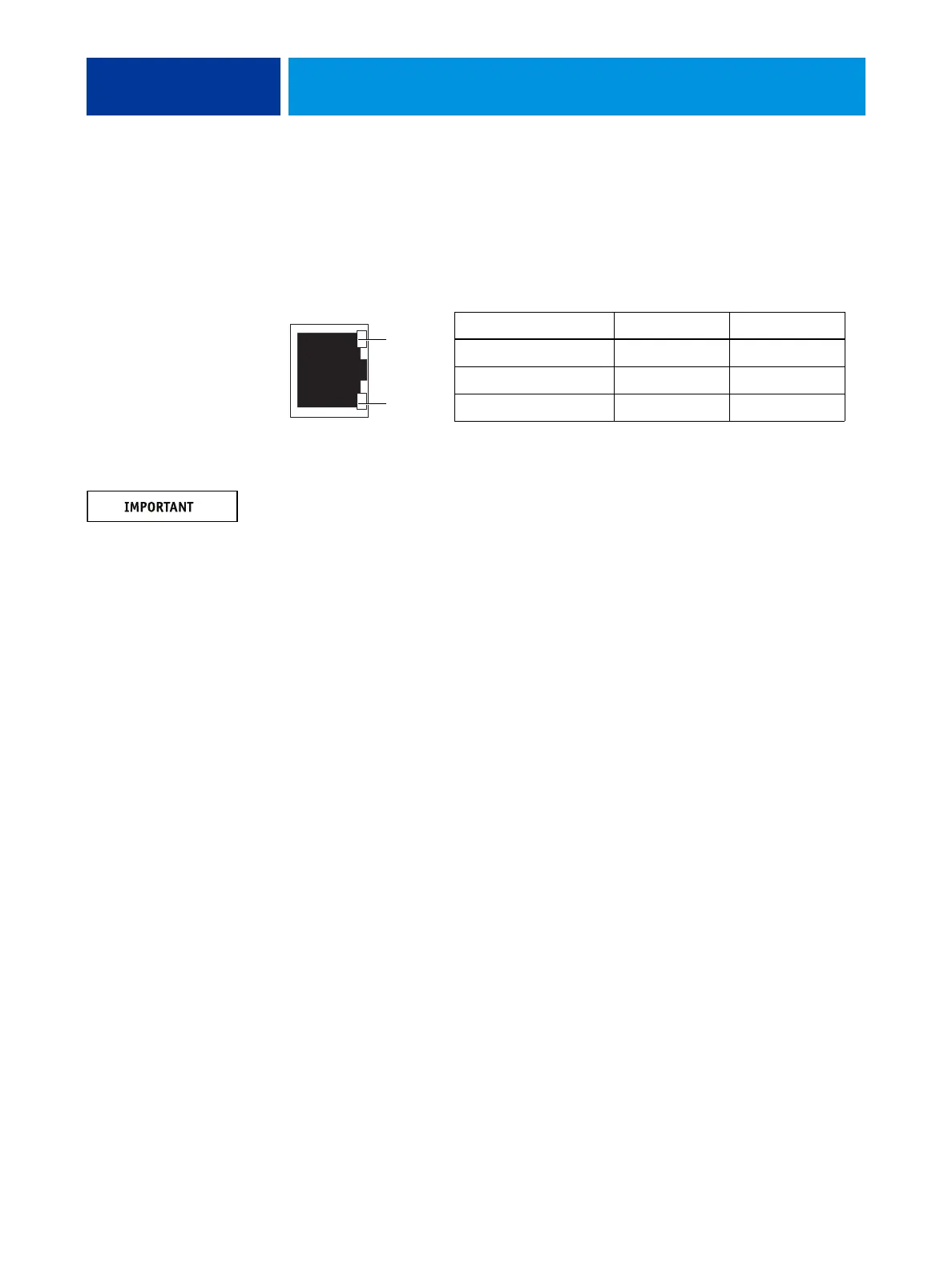

Network link speed LED 1 LED 2
10 Megabits/second Off Green
100 Megabits/second Green Green
1000 Megabits/second Amber Green
LED 2
LED 1
Ethernet network port
(Upper RJ-45)
