E-41 overview diagrams
The following figures provide an overview of E-41 components.

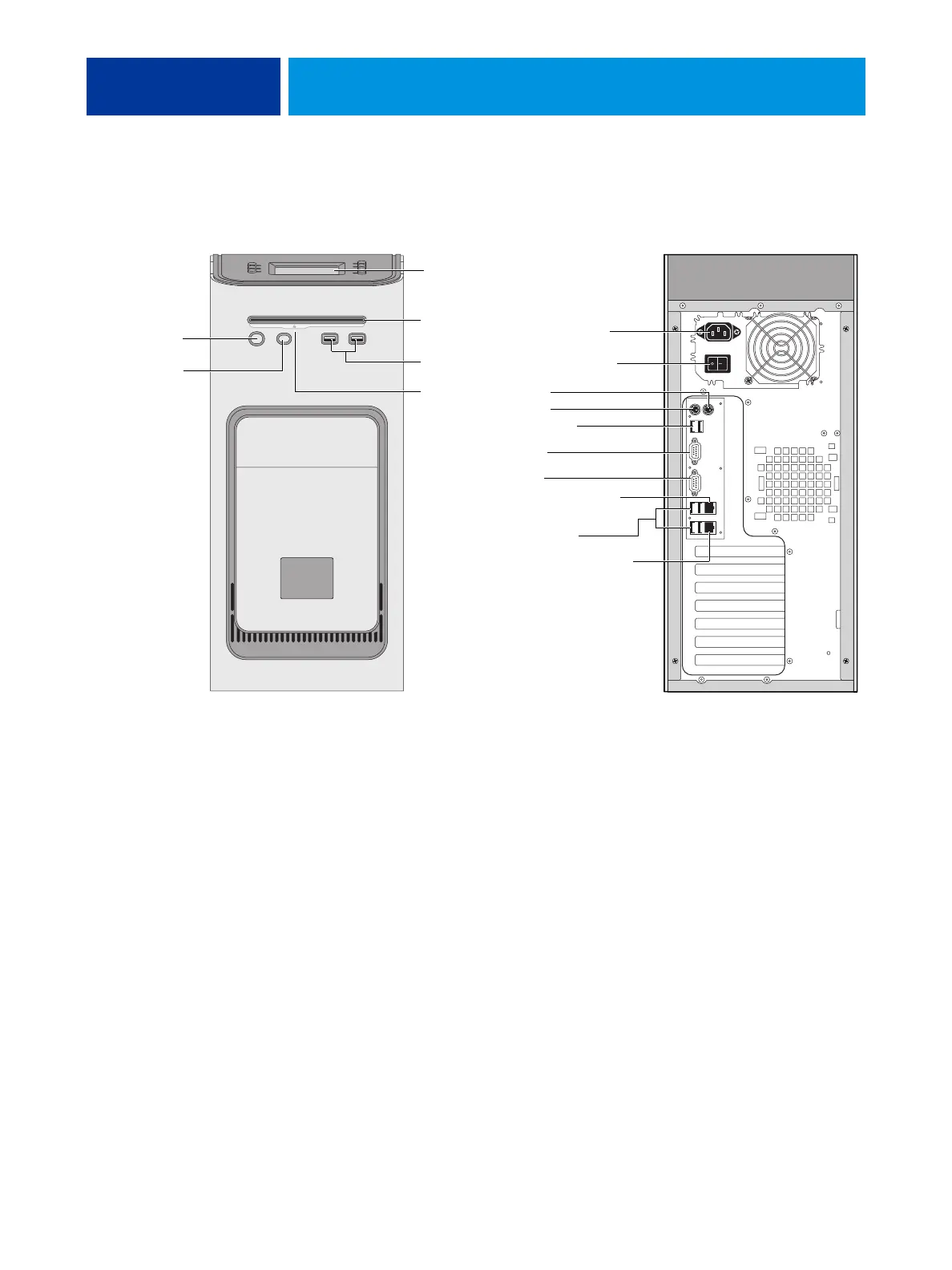

FIGURE 9: Front and back panels
Front panel Back panel
USB ports
Power button
Control panel
DVD drive
Not used
Power cable
Monitor
Not used
Not used
Network port (RJ-45):
Straight-through cable
USB ports (x2)
USB ports (x4)
Copier/printer interface (RJ-45):
Ethernet crossover cable
Reset button
NOTE: Use the
reset button only
if the system is
unresponsive to
keyboard or
mouse actions.
Eject button
Power switch
