Fiery E-41 - FIGURE 10: Back Panel and Internal Side View

SERVICE PROCEDURES 46

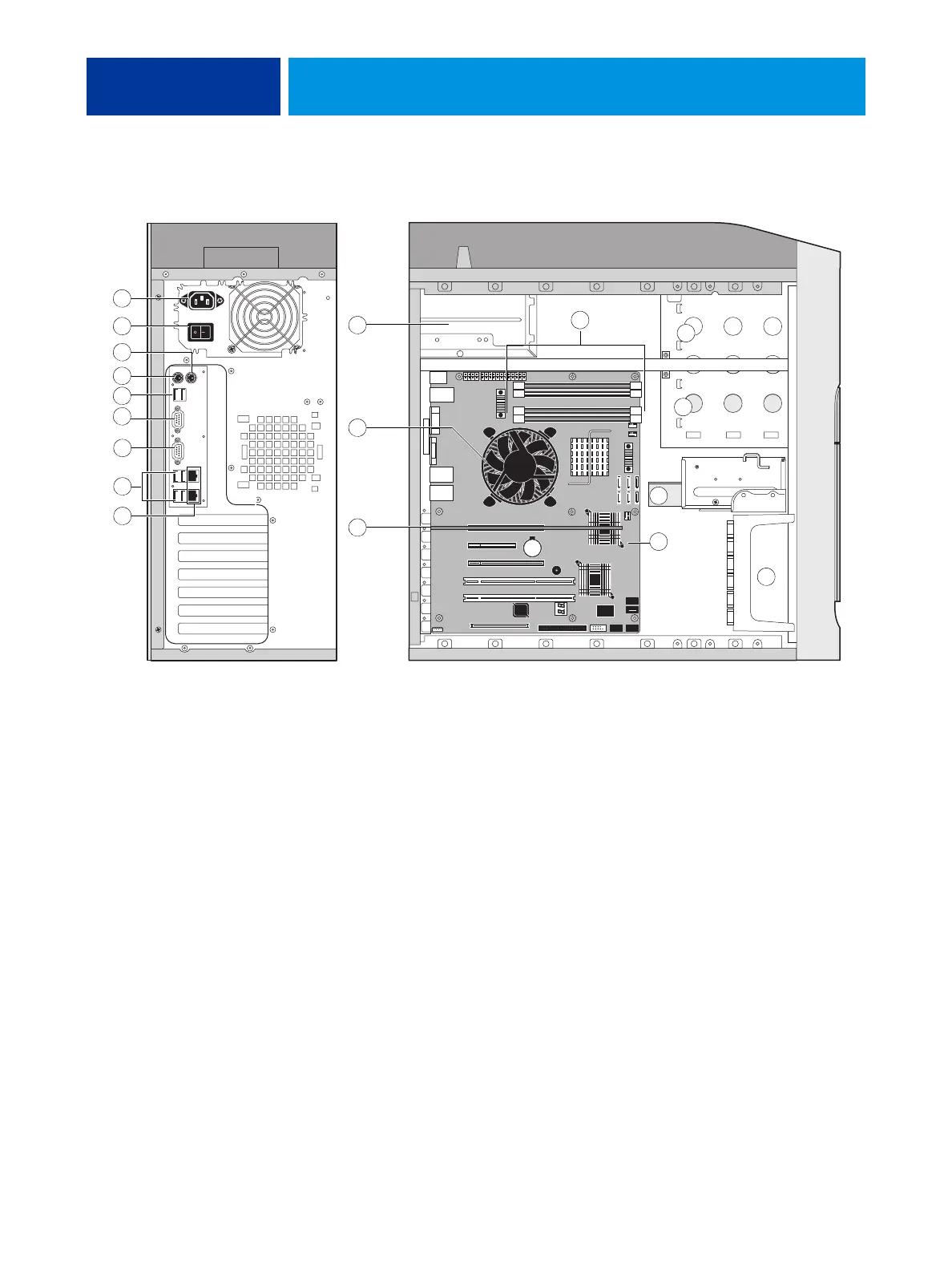

FIGURE 10: Back panel and internal side view
Key
1. Power cable connector
2. Power switch, back panel
3. Not used
4. Not used
5. USB ports (x2)
6. Not used
7. Monitor (option)
8. USB ports (x4)
9. Top = Network; Bottom = Copier/printer interface
10. Power supply
11. CPU cooling assembly
12. Video board (J12)
13. DIMM slots
14. DVD drive
15. Removable drive (option)
16. HDD in bracket
17. Motherboard
18. Front fan
NOT SHOWN: Cables, UIB, or front panel USB ports
1
3
4
5
6
7
8
16
14
15
18
13
9
17
11
10
12
2
