SERVICE PROCEDURES 97
Switch bank assembly
The switch bank assembly attaches to the Component Sled. The switch bank assembly
includes the following components:
•DVD drive
• Power button and cable
• Reset button and cable
•Speaker and cable
• Front USB ports and cables
NOTE: For more information about servicing the DVD drive, see page 101.

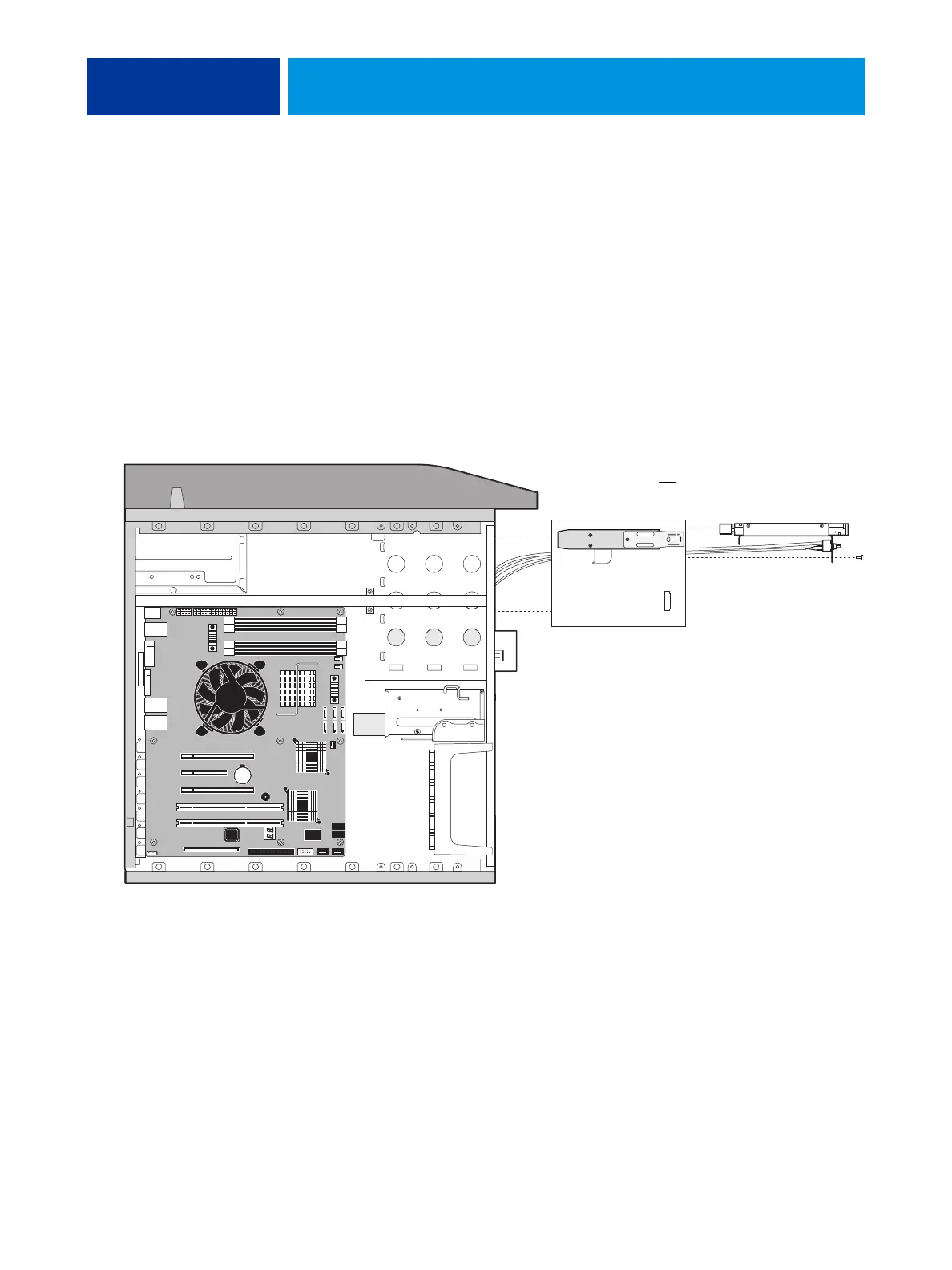

FIGURE 34: Component Sled with switch bank assembly
Switch bank
assembly with
DVD drive
Component Sled
Guide latch
(1 of 2)
NOTE: Video board and internal
cables are not shown.
