Fiery E-41 - FIGURE 22: Connecting the Dongle

SERVICE PROCEDURES 71
Entering Service Mode
Use the following procedure to verify that the system functions properly after installing a new
motherboard.
TO ENTER SERVICE MODE AND VERIFY THE SYSTEM
NOTE: This procedure assumes that the E-41 is powered off, no CD is in the DVD drive, you
have installed a new motherboard, and that you have reassembled the E-41 and attached
external cables.
NOTE: Do not insert the Fiery Options Utility into the DVD/CD-ROM drive yet. You will
install the Fiery Options Utility when you are ready to transfer options to the new
motherboard (page 73) after you verify the system in Service Mode.
1. Make sure the E-41 is connected to the copier/printer (see page 28).
2. Locate the one-time use dongle provided with the new motherboard and connect it to a USB
port on the front or back panel.
3. Remove and set aside all other dongles and USB storage devices (such as a flash or thumb
drive) that may be connected to any other USB port.
Reconnect other dongles and USB devices only after you verify that the E-41 starts up
successfully in Service Mode.

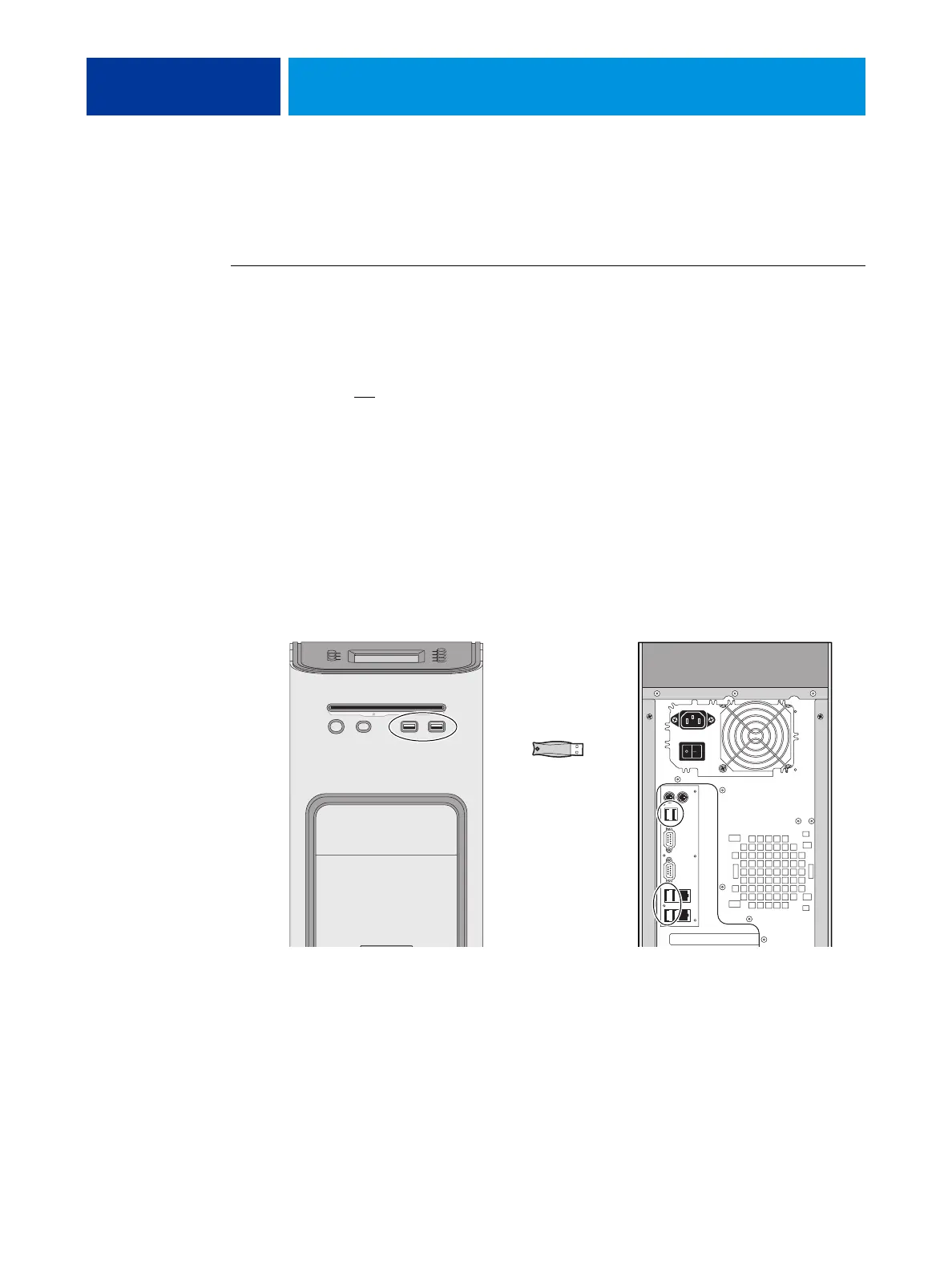

FIGURE 22: Connecting the dongle
Connect to an
available USB port
One-time use
dongle
