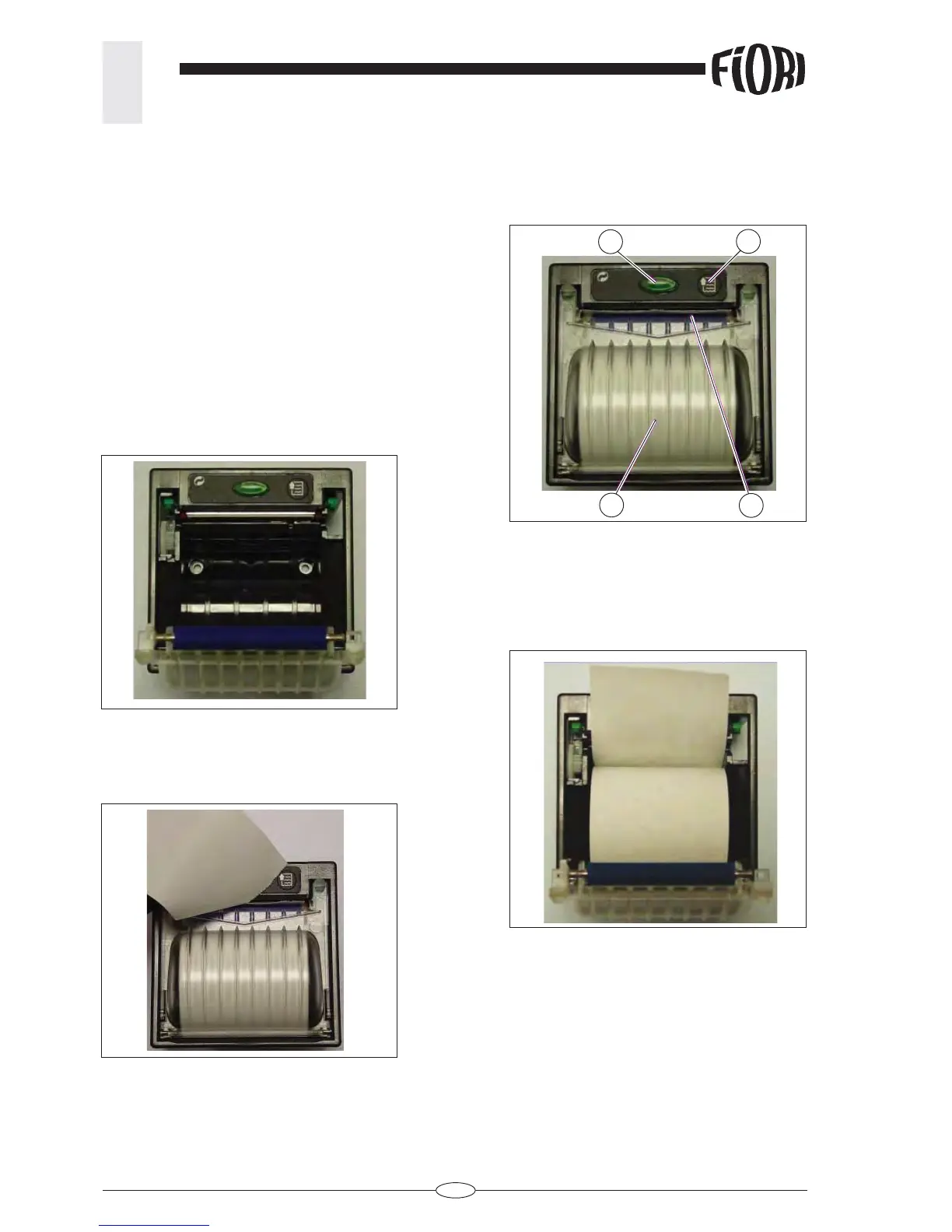

2.4 PRINTER FUNCTIONS AND PAPER ROLL REPLACEMENT
The printer is used to print the the record (of each single load).
1 Button to open the cover to replace the paper roll and a
status LED:
a - When it is on fi xed it means that there is no error.
b -
When it fl ashes slowly it means that the paper has run out.
c - When it fl ashes fast it means that there is an error
(head overheating or power supply fault).
2 FEED button (paper feed).
3 Paper outfeed.
4 Paper roll.
To replace the paper roll:
Press the key “1” to open the cover.
Remove the used paper roll and insert the new one (paper
width 57 mm)
Closing the cover insert the border of the paper roll in the
suitable opening “3”
