56
REV. 00 02/01/2015
id.:
CBV ADVANCED MODE FUNCTIONS
3

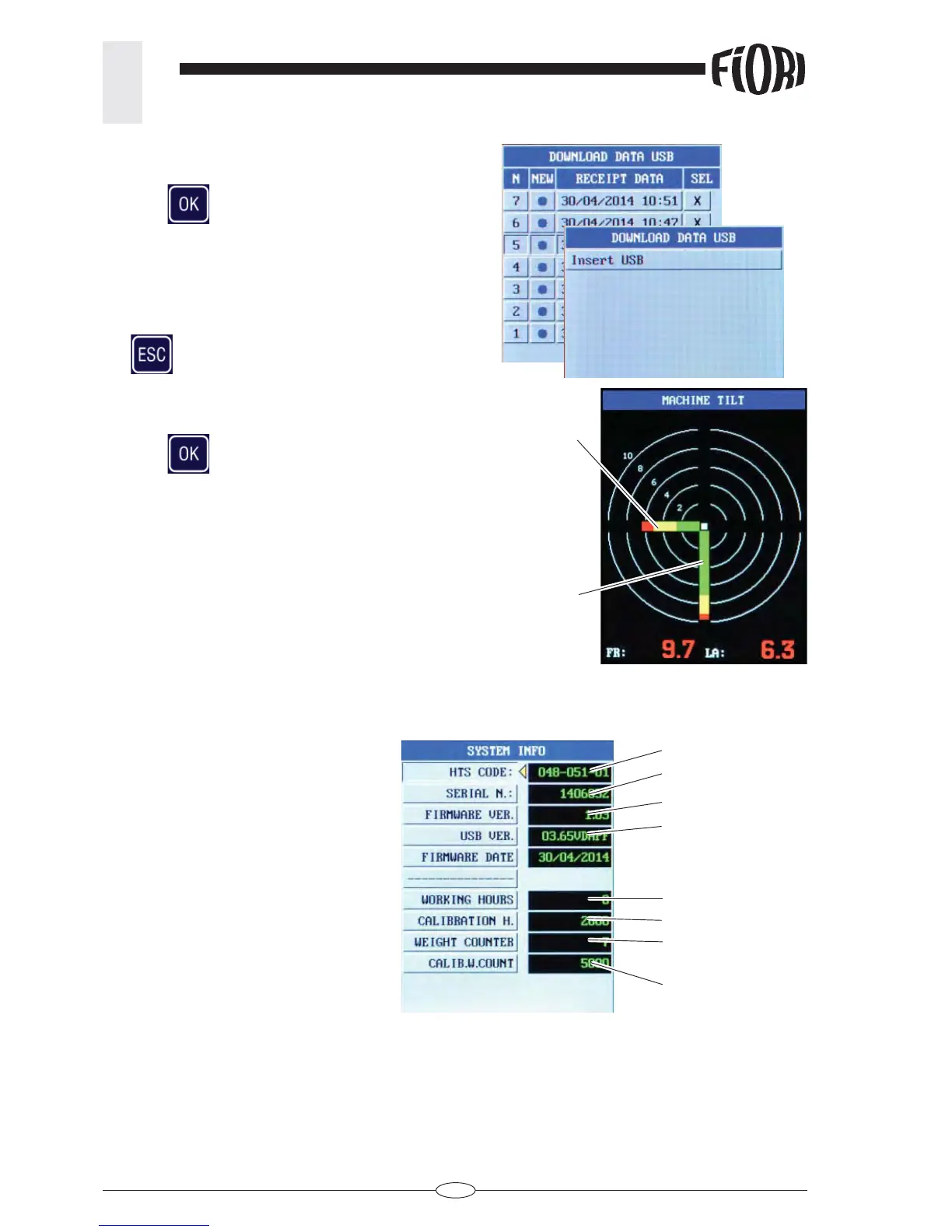

DOWNLOAD
Select one or more fi elds
Press OK Insert the USB memory stick
A message is displayed confi rming that the USB mem-
ory stick has been detected; the download will start
showing the transfer progress status from 0 to 100%
Remove the USB memory stick and carefully put the
cap back in place to ensure the system protection IP
levels.
Esc
to return to the FUNCTION menu.
DETECTING THE MACHINE TILTING
Select the “MACHINE TILTING” fi eld
Press OK
; the tilting graphic page is displayed.
COLOURS:
green = values within tolerance
yellow = Next to the machine overturning danger
threshold
red = danger of machine overturning
N.B: the yellow and red signals are accompanied by a
progressive acoustic alarm depending on the level of
danger.
SYSTEM INFO
To view system information
left tilting
back tilting
Tilting values
FR= front LA= lateral
Print all the components loaded during the day
HTS code
Serial number
Firmware version
USB fi rmware version
INSTRUMENT DATA
Hours of operation
Weighings performed
Schedule of next
calibration (hours)
Schedule of next
calibration (weighings)
3.27 DATA SENT TO GPS AND GPRS SYSTEMS
The following data are sent:
- The receipt printing data, each time that a recipe processing cycle is completed.
- General alarms
- drum rotation pressures.
