Fiori BATCH CONTROLLER - Automatic Additive Loading (CBV Advanced)

47
REV. 00 02/01/2015
id.:
CBV ADVANCED MODE FUNCTIONS
3

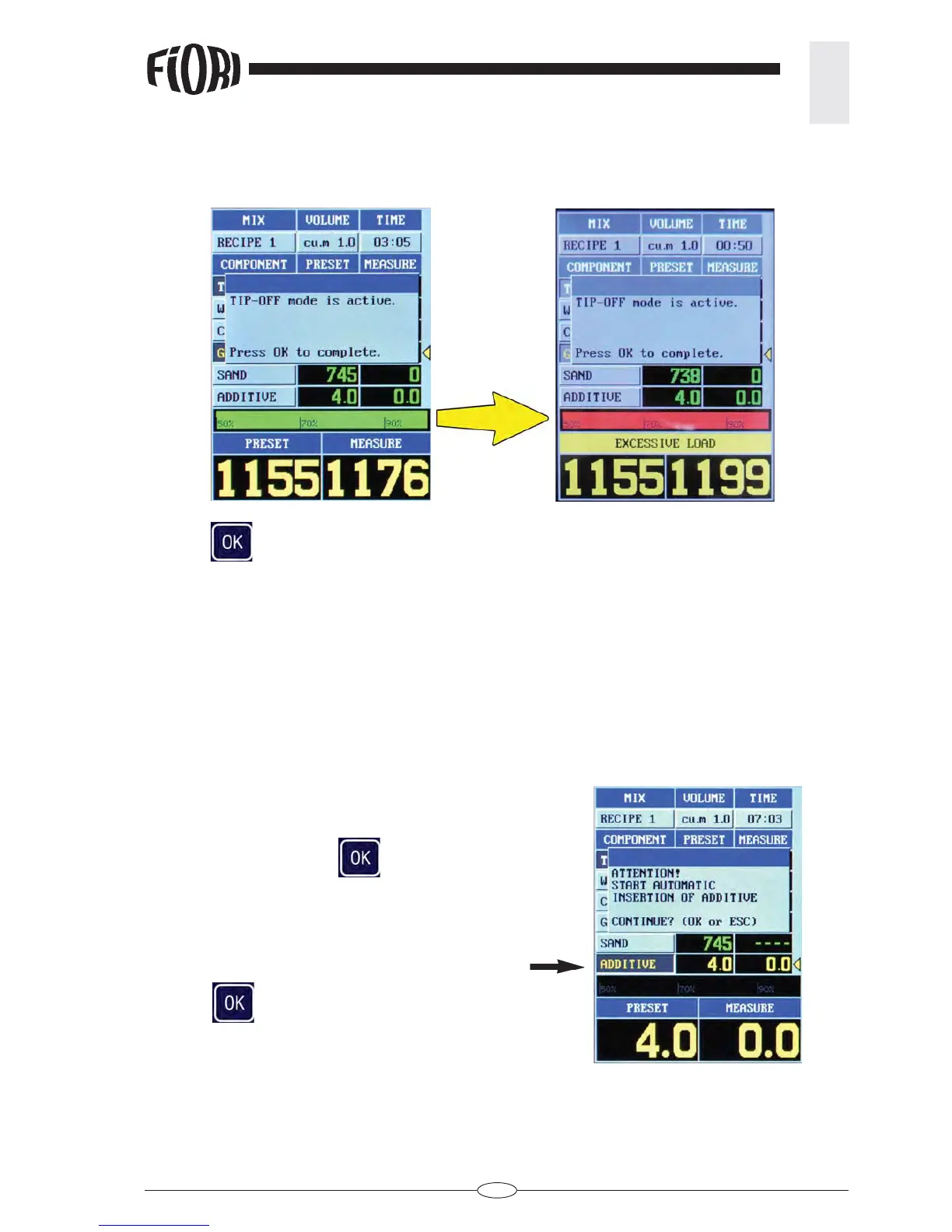

Once the preset loading progress value is reached, as long as it falls within the set tolerance limits, the bar
becomes green
press OK
to confi rm the end of the TIP OFF and pour the product from the drum.
Continue loading the other components by completing the recipe.
Complete the mixing of the fi nal product and pour it.
3.15 AUTOMATICALLY LOADING THE ADDITIVE
The additive is loaded by means of the automatic
management of the relevant pump, in a similar manner
than water loading.
Select “ADDITIVE” Press OK
.
A warning message is displayed
Press OK
to confi rm.
The device will automatically start the additive pump.
The device will automatically stop the additive pump as
soon as the preset value is reached.
