Fiori BATCH CONTROLLER User Manual

23
REV. 00 02/01/2015
id.:
FBC MODE FUNCTIONS
3

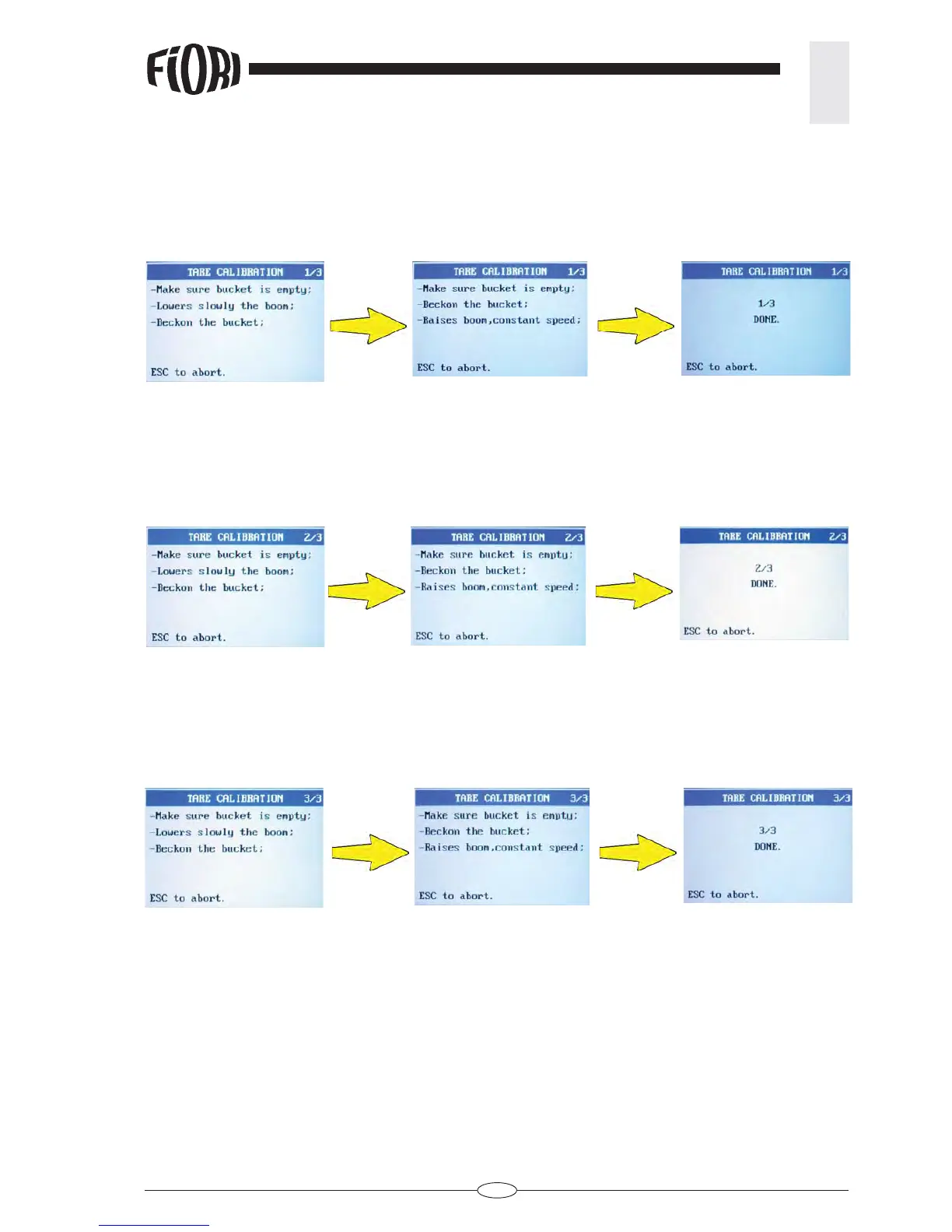

Step 1/3
- Ensure that the bucket is empty
- Slowly lower the boom
- Withdraw the bucket (A)
- Lift the boom at a constant speed
Step 2/3
- Check that the bucket is empty
- Slowly lower the boom
- Withdraw the bucket (A)
- Lift the boom back up
Step 3/3
- Check that the bucket is empty
- Slowly lower the boom
- Withdraw the bucket (A)
- Lift the boom back up
If during calibration the device detects any faults, it will ask to repeat the 3 calibration steps.
