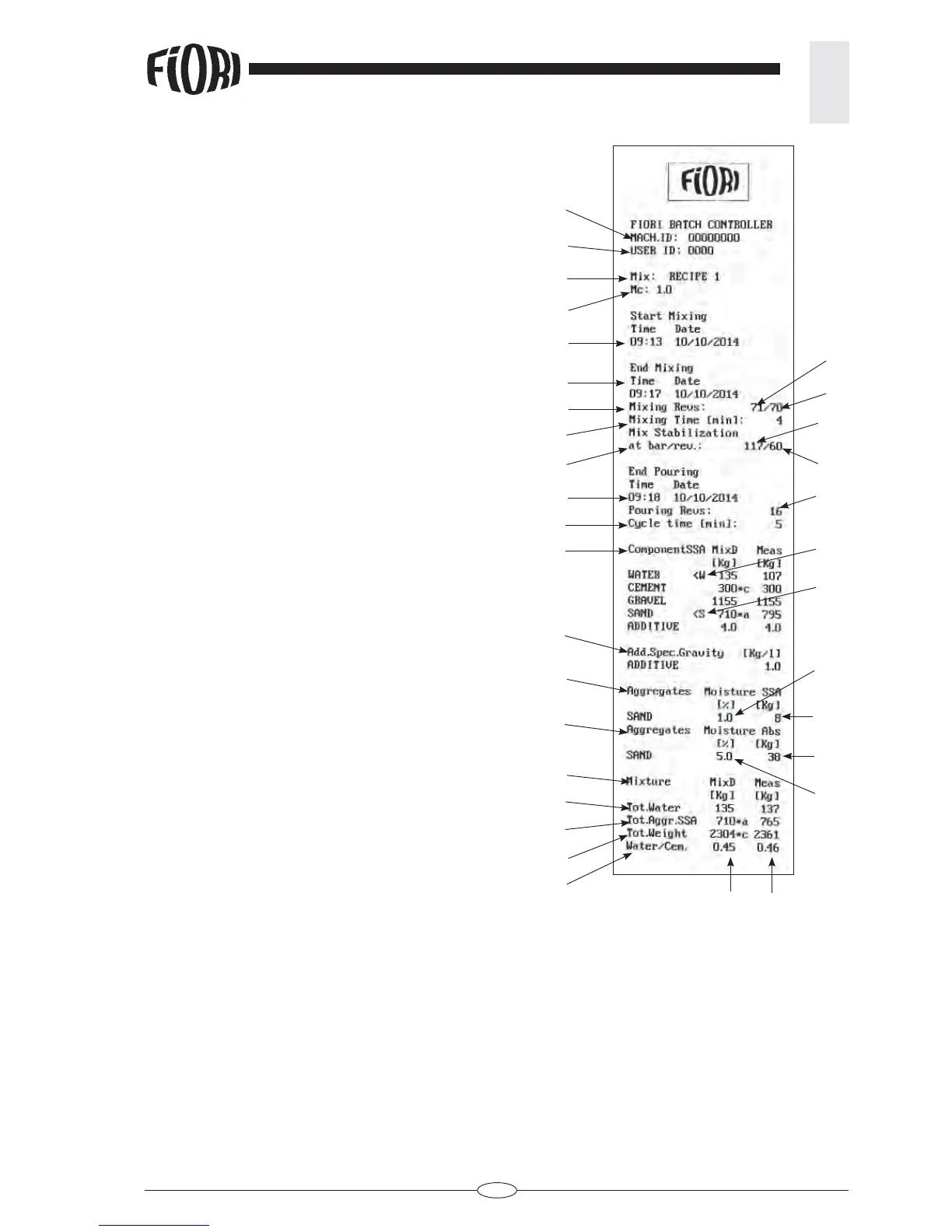

CBV STANDARD MODE FUNCTIONS
1 - Machine code
2 - Operator code
3 - Recipe name
4 - Recipe volume
5 - Start time and date of mixing cycle
6 - End time and date of mixing cycle
7 - Mixing revolutions
8 - Performed
9 - Preset
10 - Mixing time
11 - Stabilized pressure
12 – Pressure
13 - Mixing revolutions at which pressure has stabilized
14 - End time and date of pouring phase
15 - Pouring revolutions
16 - Cycle time
17 - Recipe data
18 - Component marker
19 - Specifi c weight of the additive
20 - Component typical absorption
21 - Water amount in SSA (SSD - Saturated Surface Dry)
22 - Hygroscopic aggregate data
23 - Component name
24 - Moisture %
25 - Water contained in the component
26 - Mix data
27 - Total loaded water
28 - Total hygroscopic components (SSA)
29 - Total weight
30 - Water/cement ratio
31 - Column of data set by recipes
32 - Data column
OTHER MARKERS
*a: component with loaded weight outside the set tolerance limits
*b: component loaded despite the weighing error signalled by the device
*c: indicates that some components have been manually loaded
