Maintenance Instructions
22.10.19 Kapitel/Chapter 6: Maintenance Instructions - Seite/Page 105

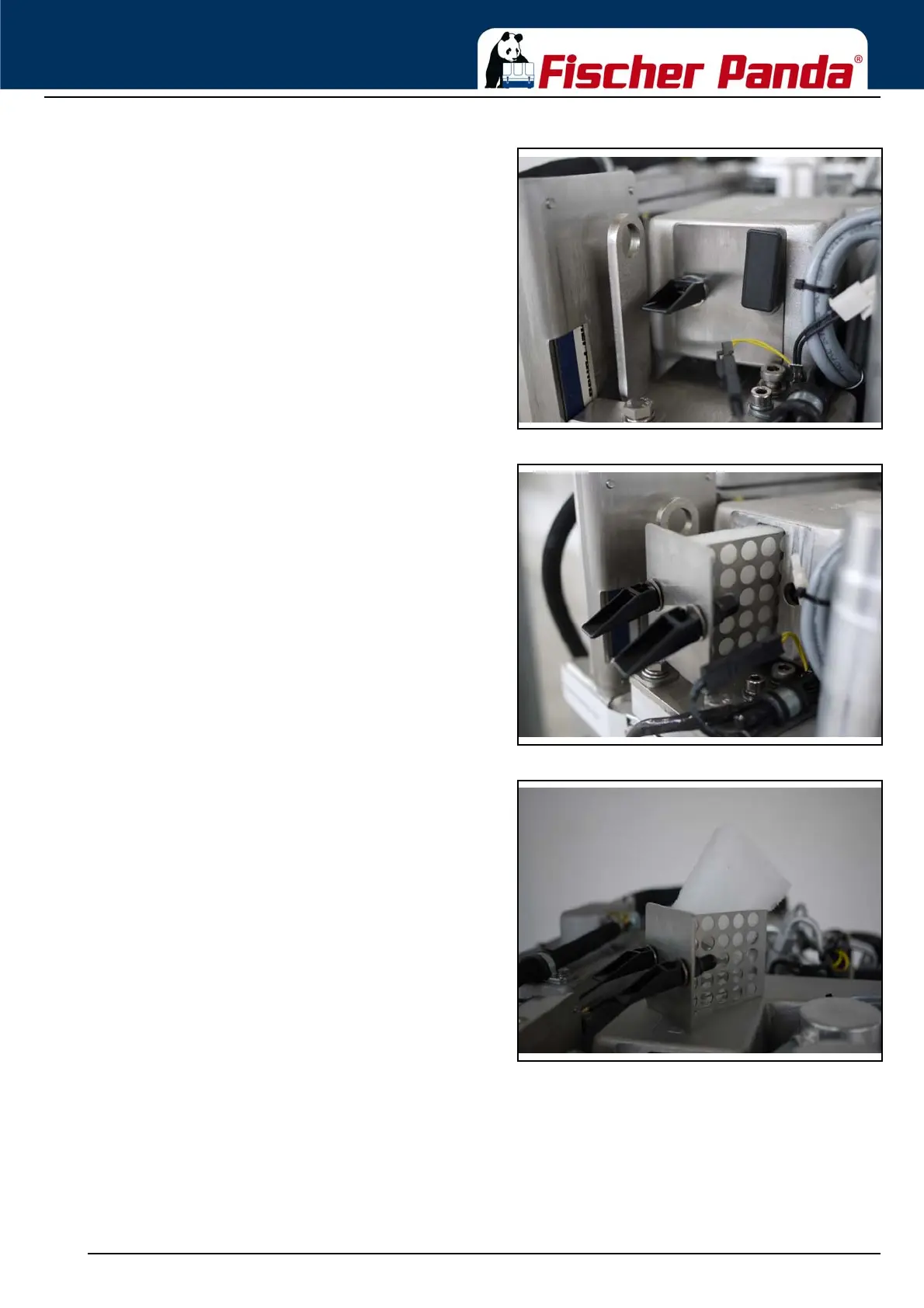

Fig. 6.10.2-2: Air suction housing with pull out holder 2. Tip the two fasteners 90°.
Fig. 6.10.2-3: Air suction housing with pull out holder 3. Pull the filter mat holder out.
Fig. 6.10.2-4: Air suction housing with pull out holder 4. Replace the air filter mat.
5. Re-assembly in reversed order.
