The Panda Generator
Seite/Page 56 - Kaptitel/Chapter 3: The Panda Generator 22.10.19

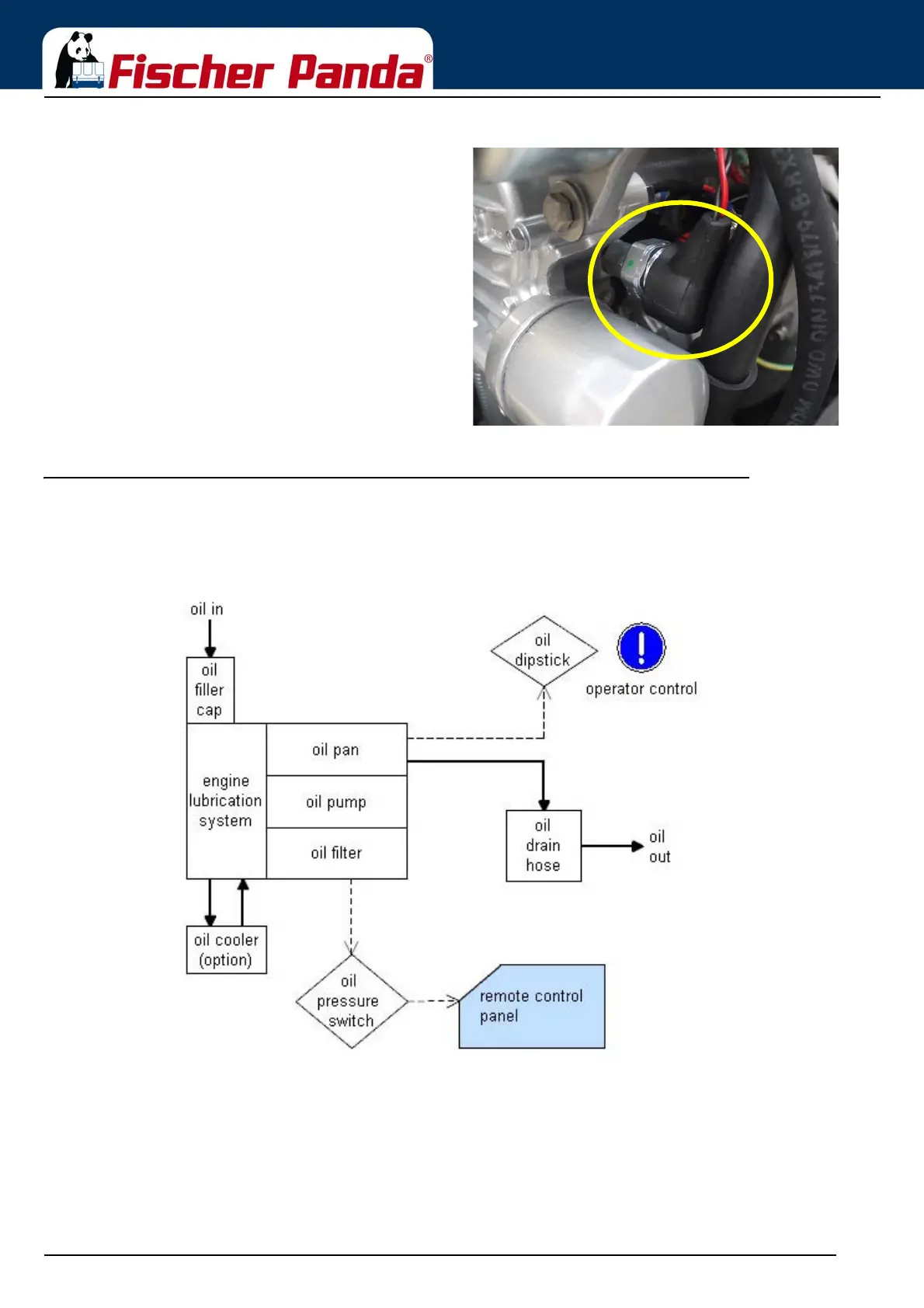

Fig. 3.3.4-4: Oil pressure switchOil pressure switch
In order to be able to monitor the lubricating oil system, an oil
pressure switch is built into the system.
3.3.5 The lubrication circuit
Fig. 3.3.5-1: Lubrication circuit
