Installation Instructions
22.10.19 Kapitel/Chapter 5: Installation Instructions - Seite/Page 67

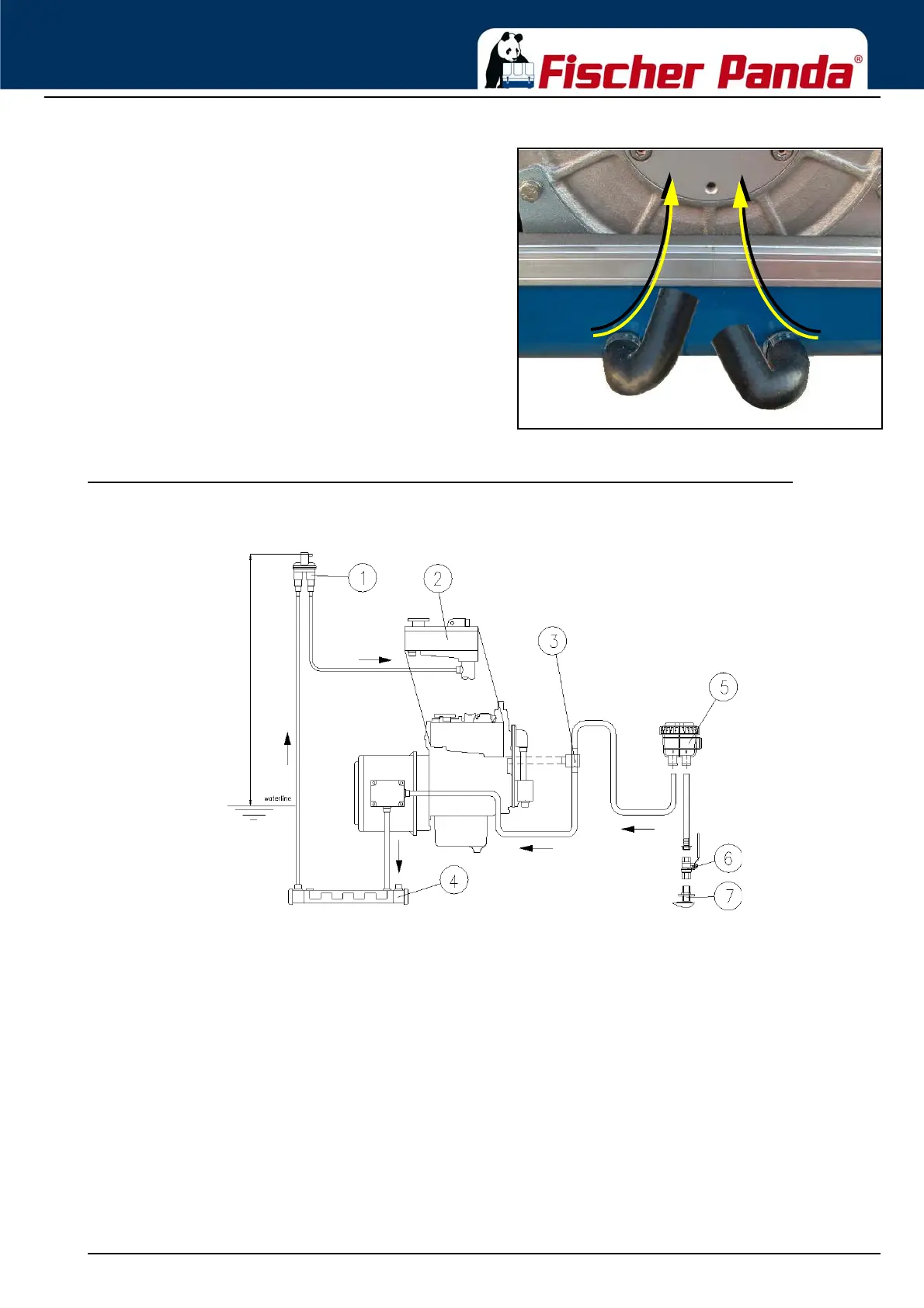

Fig. 5.4.5-3: Connection vent valve...and bend it upwards.
Both hose ends must be led out outside of the sound cover to
one point, if possible 600 mm over the waterline at the mid-
ships line. The valve is connected at the highest place with
the two hose ends.
5.4.6 Generator housing cooled by raw water
Fig. 5.4.6-1: Installation scheme for direct cooling
1. Vent valve
2. Coolant connection block
3. Raw water pump
4. Exhaust manifold
5. Raw water filter ø 1"
6. Water cock ø1“
7. Through hull
