Fischer Panda 7K PMS - Jumper configuration for the input; Jumper J101-J103

Remote Control Panel P4 Control
Seite/Page 164 - Kaptitel/Chapter 9: Remote Control Panel P4 Control 22.10.19
9.5 Jumper configuration
9.5.1 Jumper configuration for the input
9.5.1.1 Jumper J101-J103

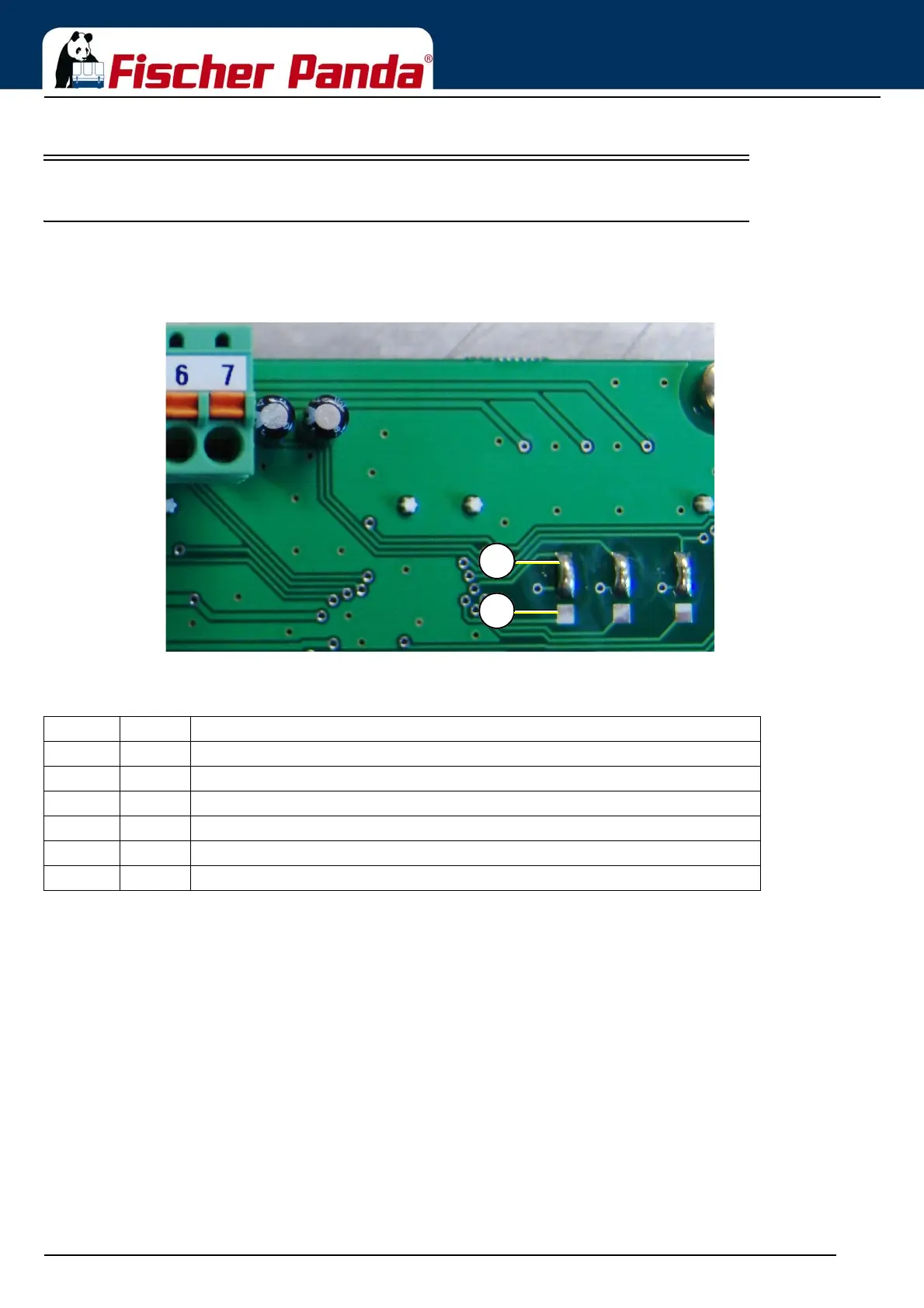

Fig. 9.5.1.1-1: Jumper J101 - J103
At the 3 pin jumpers J101-J103 the pin 3 is at the termination block side.
Jumper Status Desc.
J101 1-2 Temp. switch engine head is NC
2-3 Temp. switch engine head is NO
J102 1-2 Temp switch exhaust elbow is NC
2-3 Temp switch exhaust elbow is NO
J103 1-2 Oil pressure switch is NC
2-3 Oil pressure switch is NO
1
3
