Fischer Panda 7K PMS - Front view - Panda 4 K PMS

The Panda Generator
Seite/Page 40 - Kaptitel/Chapter 3: The Panda Generator 22.10.19
3.2.3 Front view - Panda 4K PMS

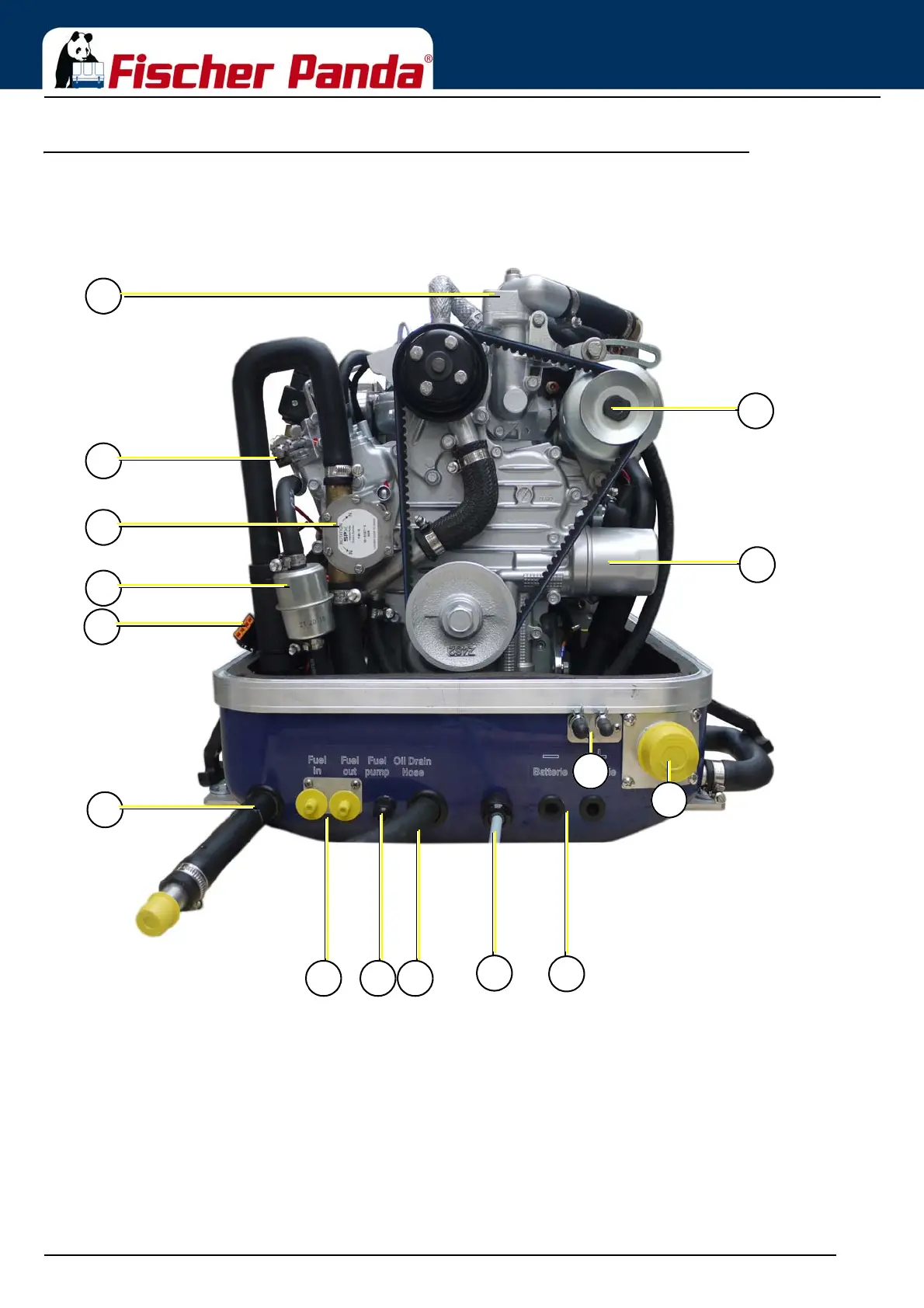

Fig. 3.2.3-1: Front view
15
10
01
02
03
04
05
06
07
11
09
12
13
14
08
01) Thermostat housing
02) Ventilation screw solenoid valve
03) Raw water pump
04) Fuel filter
05) Connection plug for the boost electronic
06) Raw water in
07) Fuel in/out
08) Passage for fuel pump cable
09) Oil drain hose
10) Cable for remote control panel
11) Passage for starter battery cables
12) Connections to external expansion tank
13) Exhaust out
14) Oil filter
15) DC alternator
