Fischer Panda 7K PMS - Left side view - Panda 4 K PMS

The Panda Generator
22.10.19 Kapitel/Chapter 3: The Panda Generator - Seite/Page 39
3.2.2 Left side view - Panda 4K PMS

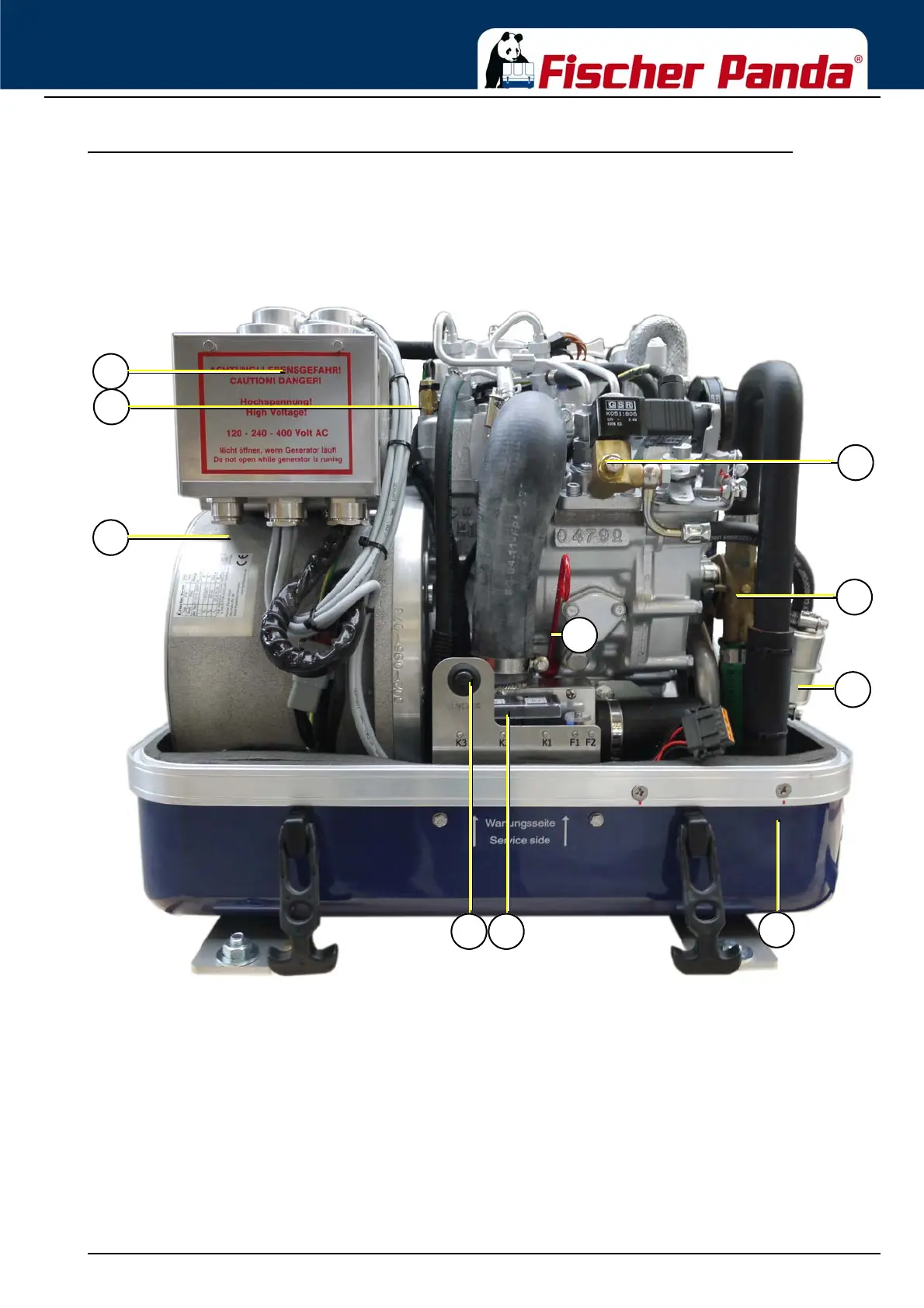

Fig. 3.2.2-1: Left side view
01
02
07
03
06
09
08
10
04 05
01) Gernerator terminal box
02) Thermo switch at cylinder head
03) Generator housing with coil
04) Failure bypass switch
05) DC terminal with relays and fuses
06) Sound cover base part
07) Fuel filter
08) Oil dipstick
09) Raw water pump
10) Fuel solenoid valve
