The Panda Generator

22.10.19 Kapitel/Chapter 3: The Panda Generator - Seite/Page 43

3.2.6 Right side view - Panda 5K PMS

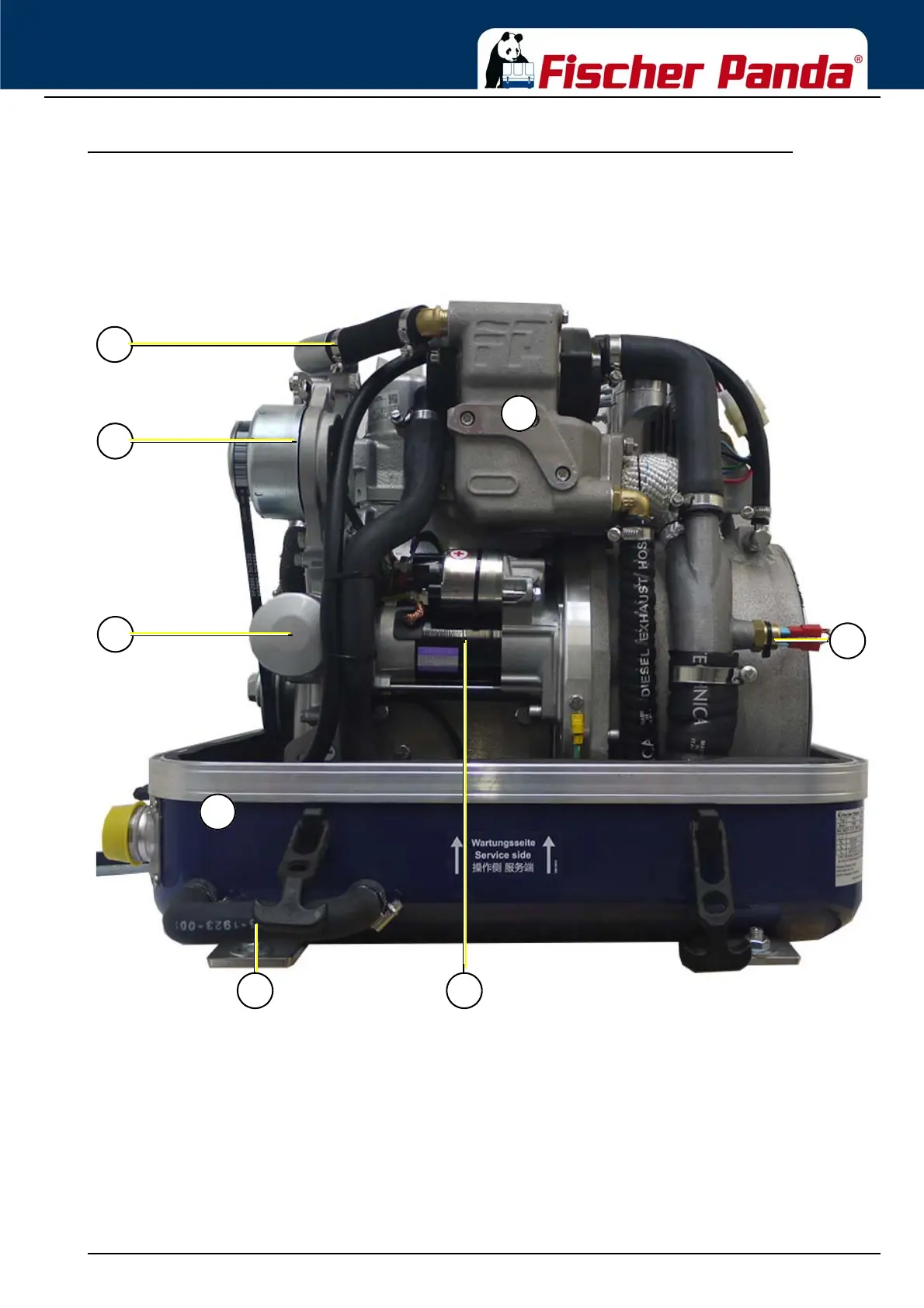

Fig. 3.2.6-1: Right side view

05 06

01) Thermostat housing

02) DC alternator

03) Oil filter

04) Sound cover base part

05) Connection point for external ventilation valve

06) Starter motor

07) Thermo switch

08) Heat exchanger
