2.4.2 Opening the MPL sound insulation capsule

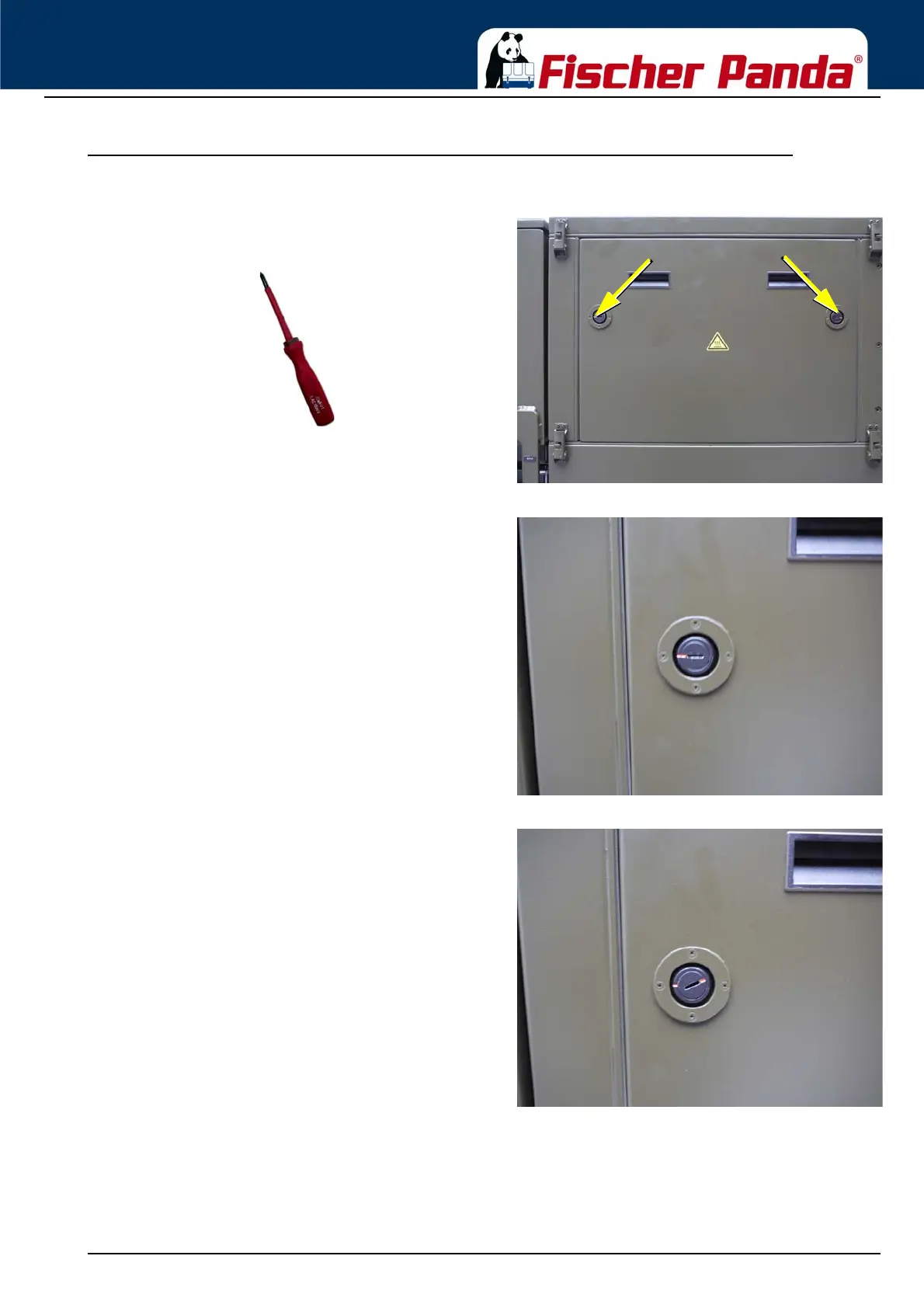

Fig. 2.4-1: Sound insulation capsule, side partTo open the sound insulation capsule, the closures must
be rotated roughly 180° counter-clockwise. Use a flat
head screwdriver. Pull the sidewalls out by gripping into
the slots.
Fig. 2.4.2-2: Closure lockedClosure locked
Fig. 2.4-3: Closure openClosure open
