3.2.8 Front view - Panda 5K PMS

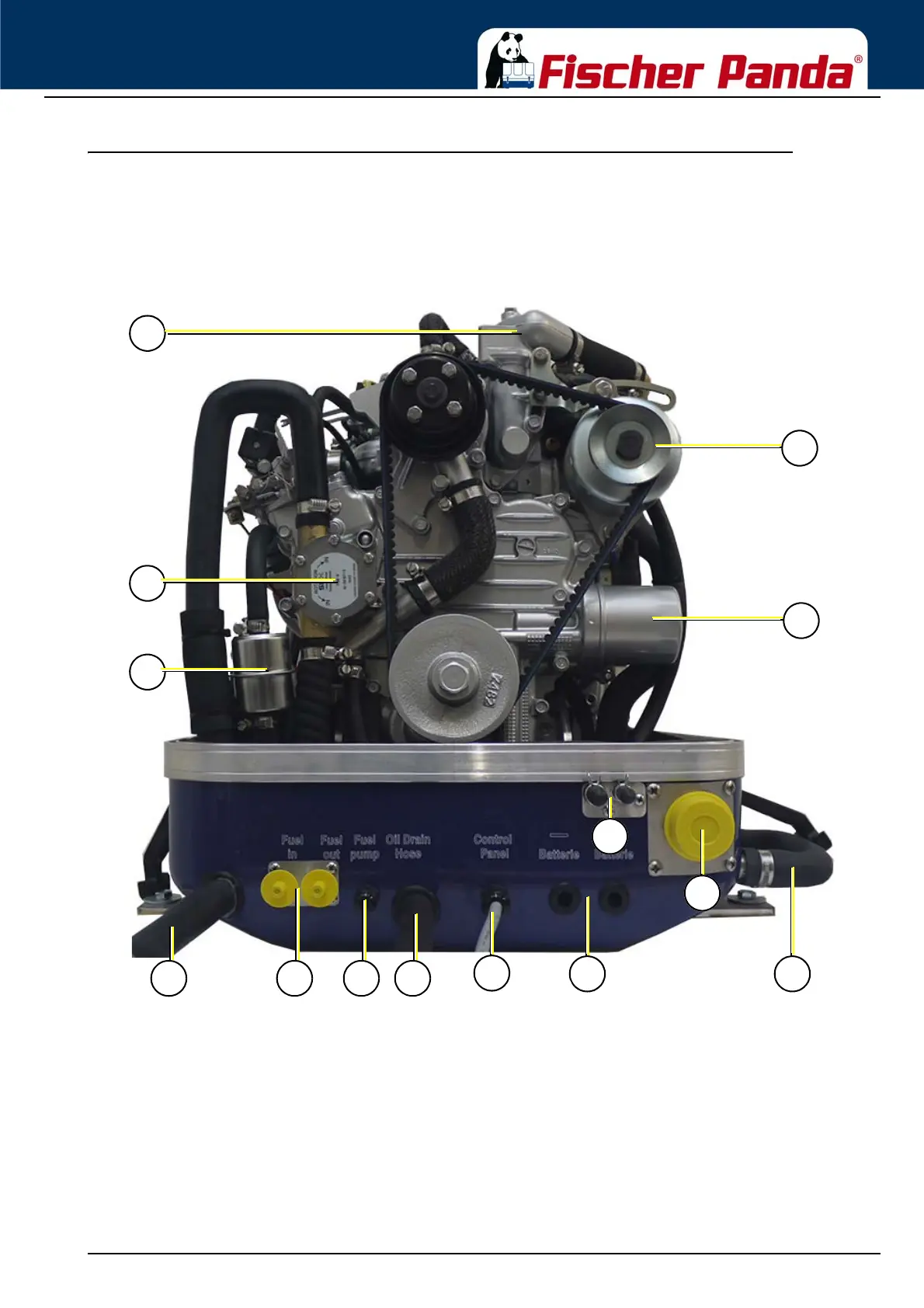

Fig. 3.2.8-1: Front view
14
08
01
02
03
05
09
07
10
11
13
04 06
12
01) Thermostat housing
02) Raw water pump
03) Fuel filter
04) Raw water in
05) Fuel in/out
06) Passage for fuel pump cable
07) Oil drain hose
08) Cable for remote control panel
09) Passage for starter battery cables
10) Connections to external expansion tank
11) Exhaust out
12) Connection point for external ventilation valve
13) Oil filter
14) DC alternator
