mounted next to the through-hull fitting. Additionally there is a component at Fischer Panda, which acts as both an
„exhaust goose neck“, and water separator. With this „exhaust/water separator“ the cooling water is derived over a
separate pipe. The exhaust noises emanating from the exterior of the yacht are strongly decreased. Particularly the
„water splash“.

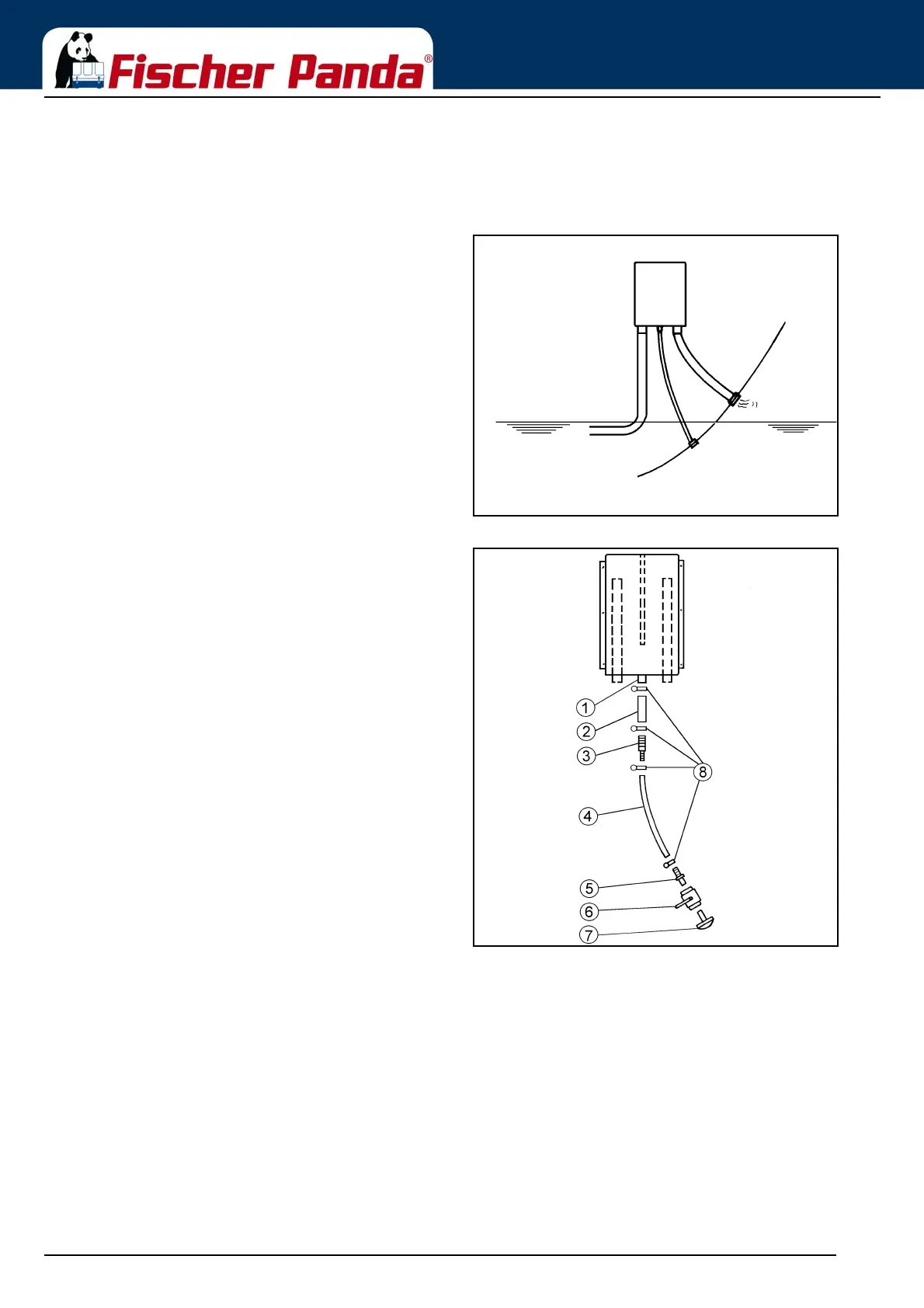

Fig. 5.8-1: Water flow exhaust water separatorWater flow exhaust water separator
Fig. 5.8-2: Exhaust water separatorExhaust water separator
(1) Raw water outlet
(2) Hose connector
(3) Reducer (if required)
(4) Hose
(5) Hose connector
(6) Sea cock
(7) Hull outlet
(8) Hose Clips
