Installation Instructions
22.10.19 Kapitel/Chapter 5: Installation Instructions - Seite/Page 85

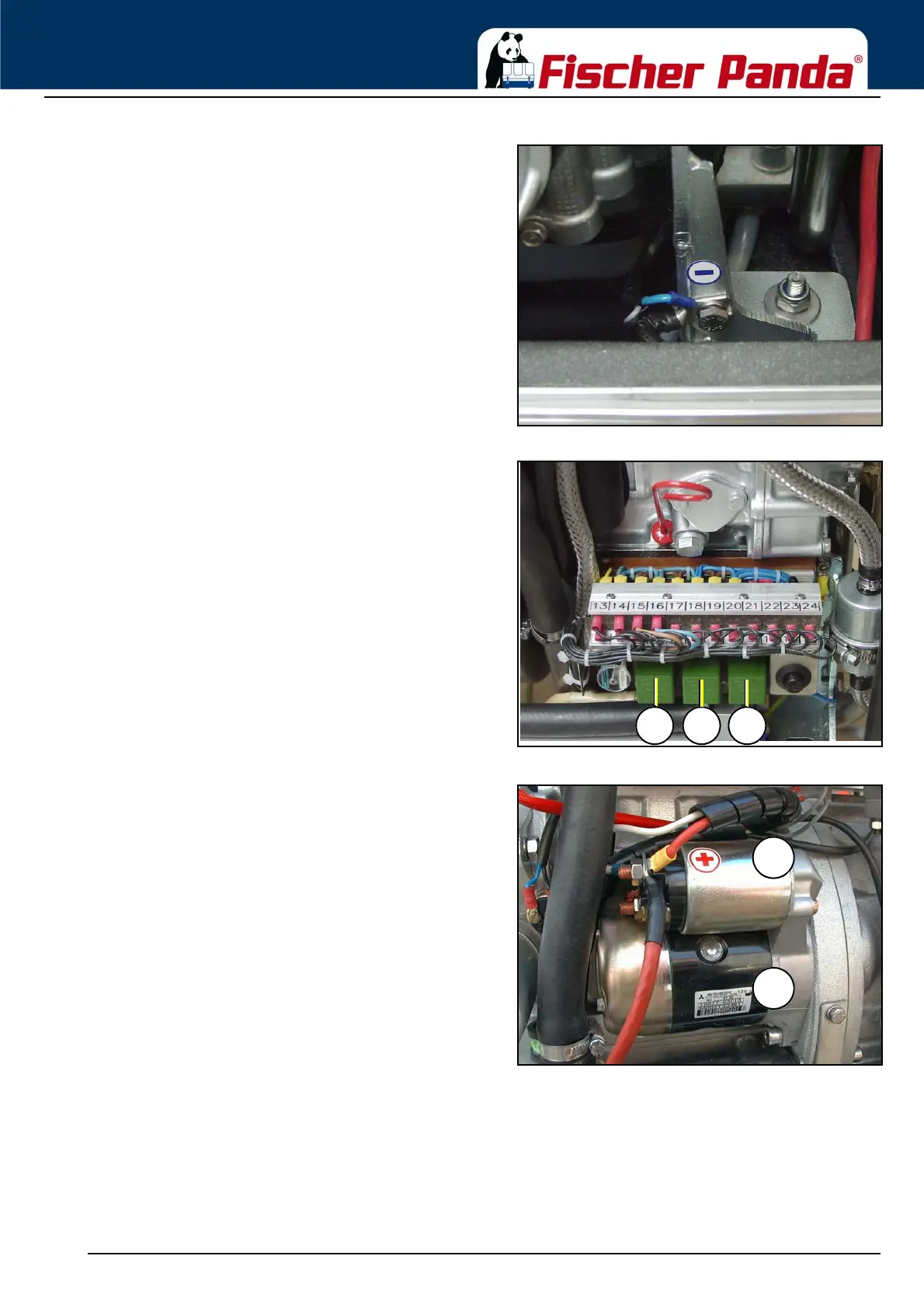

Fig. 5.10.1-2: Negative battery cableNegative battery cable
The negative (-) battery cable is connected to the engine
foot.
Note! The battery negative pole may not be connected
with the boat ground or with the protective grounding of
the 120 V installation!
Fig. 5.10.1-3: DC-relayDC-relay
The Panda generators 8000 to 30 are equipped with various
DC-relays, which can be found under the terminal strip. The
various relays have the following tasks (also see the DC
circuit diagram)
1. Starter motor relay
2. Pre-glow relay (glow plugs)
3. Fuel pump relay
Sample Picture - See wiring diagram
Fig. 5.10.1-4: DC starter motor DC starter motor
All Panda generators are equipped with an independent DC
starter motor.
1. Solenoid switch for starter motor
2. Starter motor
