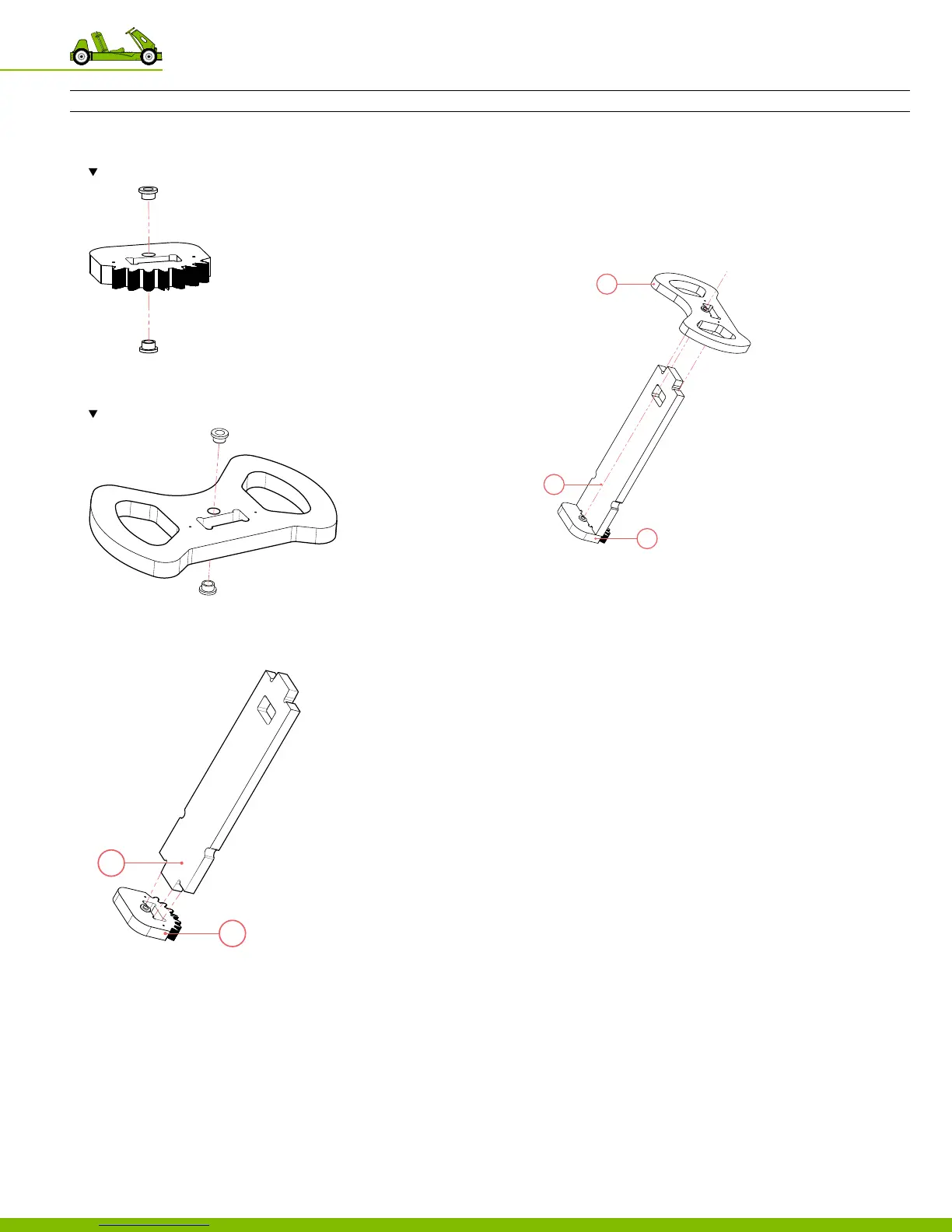

Assembling the steering shaft
INSTRUCTIONS
1. Press bushings into each side of part 20.
Note there are 2 bushings, 1 bushing per side.
2. Hammer securely until the top of each bushing is ush.
3. Press bushings into each side of part 21.
Note there are 2 bushings, 1 bushing per side..
4. Hammer securely until the top of each bushing is ush
5. Using a mallet, tap part 19 to part 20.
Note The orientation of the parts.
6. Secure the parts using screws.
‒ Use 2 screws on part 20
‒ Total of 2 locations.
7. Using a mallet, tap part 21 to the assembly.
Note the location and orientation of part 21.
The bushings should point in the same direction.
8. Secure the parts using screws.
‒ Use 2 screws on part 21.
‒ Total of 2 locations.
20
19
21
14
4 Steering Column Assembly
