Flatworks plyfly - Plywood Sheet Reference

150718 PLYFLY rev A_Steer spindle | A ug us t 7, 20 15 5: 06 PM

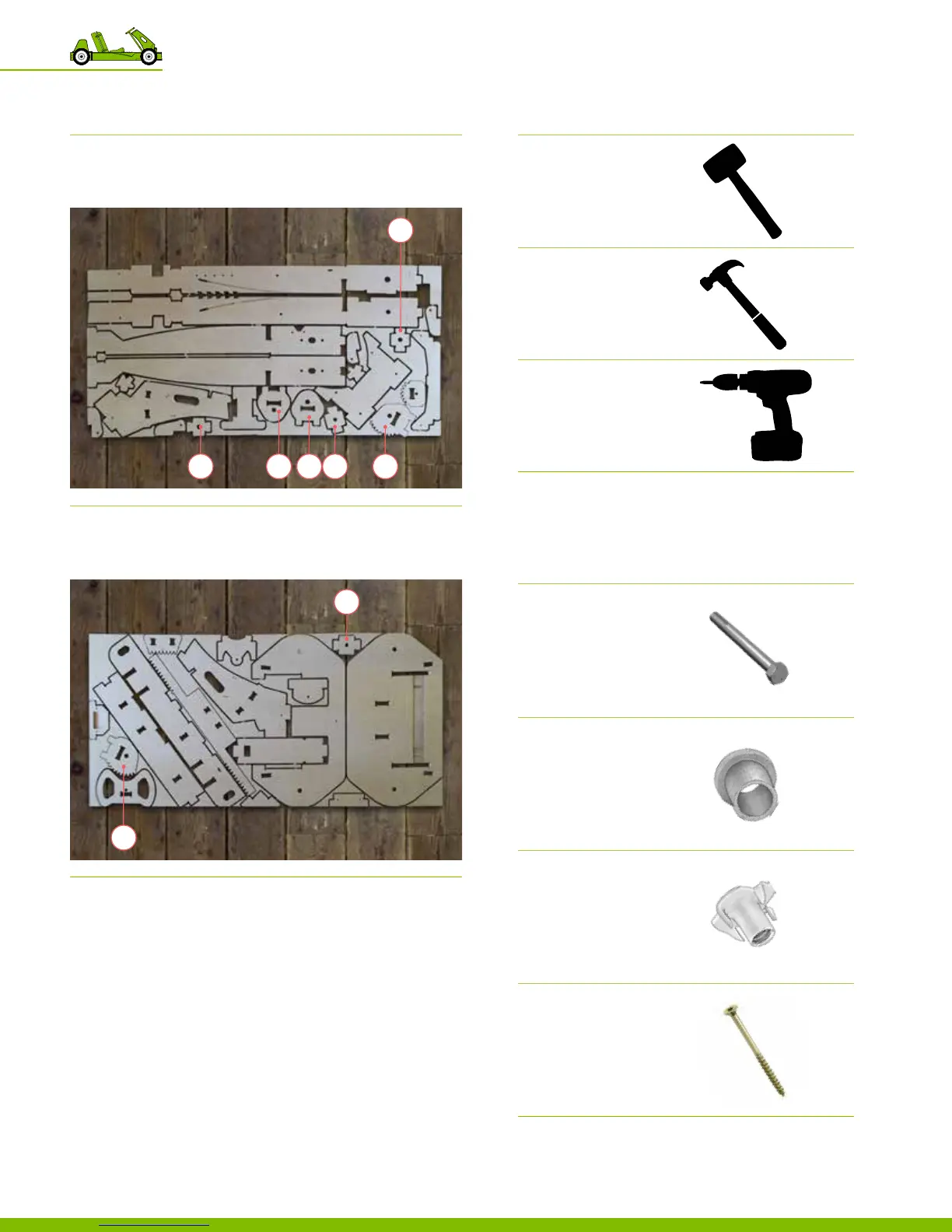

Plywood sheet reference
DESCRIPTION REFERENCE
Sheet 1
3/4” Plywood Sheet
‒ Part 1
‒ Parts 3‑4
‒ Parts 6‑8
3
61874
Sheet 2
3/4” Plywood Sheet
‒ Part 2
‒ Part 5
2
5
Recommended tools
DESCRIPTION REFERENCE
Dead blow hammer
or mallet
Hammer
Electric Driver
Required hardware
№ DESCRIPTION REFERENCE
2 Short Hex Bolt
Grade 5, 5/8”‑11, 6.5” L
PN 12503
6 Large Metal Bushing
Flanged, 3/4” OD, 5/8” ID
P N 125 0 4
2 Small Tee Nut
Zinc Plated, 5/16”‑18
P N 12510
20 Spax Screw
#8, 1‑1/2” L
P N 12519
22
7 Steering Spindle Assemblies
