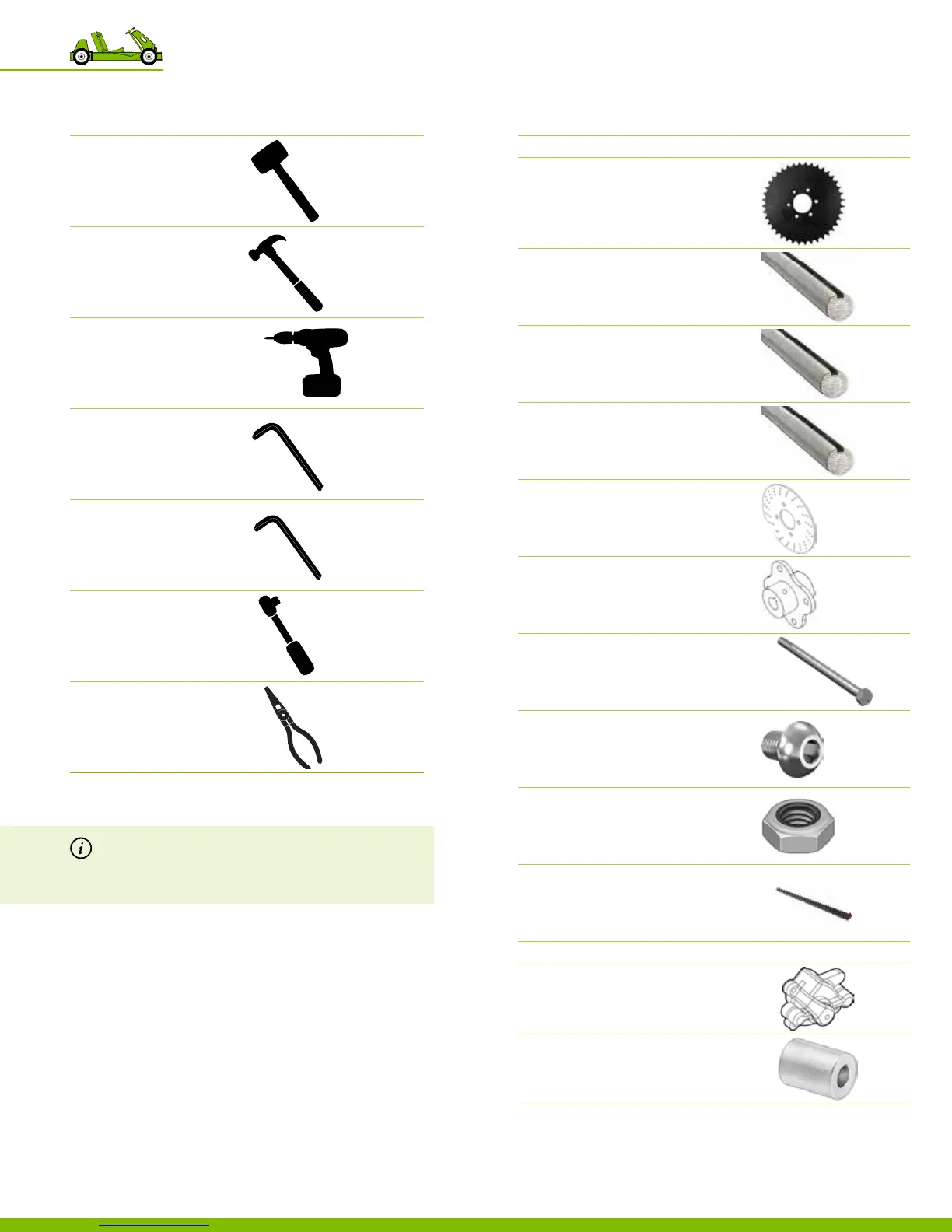

Overview of the recommended tools
DESCRIPTION REFERENCE
Dead blow Hammer
or mallet
Hammer
Electric Driver
Allen Wrench
or ratcheting Allen wrench
Metric Allen Wrench
included with mounted bearing
Socket Wrench
Needle Nose Pliers
Overview of the required hardware
№ DESCRIPTION REFERENCE
PART 1
1 Sprocket
5/8” bore diameter
60 Tooth, #35 Chain
P N 1252 2
1 Drive Shaft
Steel, Keyed, 5/8” D, 18” L
SINGLE WHEEL KIT P N 125 8 0
1 Drive Shaft
Steel, Keyed, 5/8” D, 33” L
LIVE AXLE KIT – 10” WHEELS P N 125 81
1 Drive Shaft
Steel, Keyed, 5/8” D, 36” L
LIVE AXLE KIT – 12” WHEELS P N 12 58 2
1 Brake Disc
P N 125 32
1 Brake Disc Hub
P N 125 33
1 Long Hex Bolt
Axle Grade 5, 5/8”‑11, 11” L
SINGLE WHEEL KIT P N 125 02
4 Button Socket Head Cap Screw
Zinc Plated, Steel, 5/16”‑24, 1/2” L
TOTAL OF 4 PROVIDED PN 125 59
4 Thin Nut
Grade 5, 5/16”‑24
P N 1252 0
1 Key
3/16” square, 1”L
P N 125 39
PART 2
1 Brake Caliper
P N 125 31
1 Short Aluminum Spacer
1/2” OD, 1/4” ID, 7/8” L
P N 125 47
Note There are 2 types of button socket head cap screws
provided in every kit. They appear to be similar in
size but are not. The easiest way to dierentiate the
2 sizes, is by the number of screws provided.
38
10 Putting the go‑kart together
