Flatworks plyfly - List of Loose Contents

1 50718 P LY F LY rev A_EM | August 7, 2015 5:06 PM

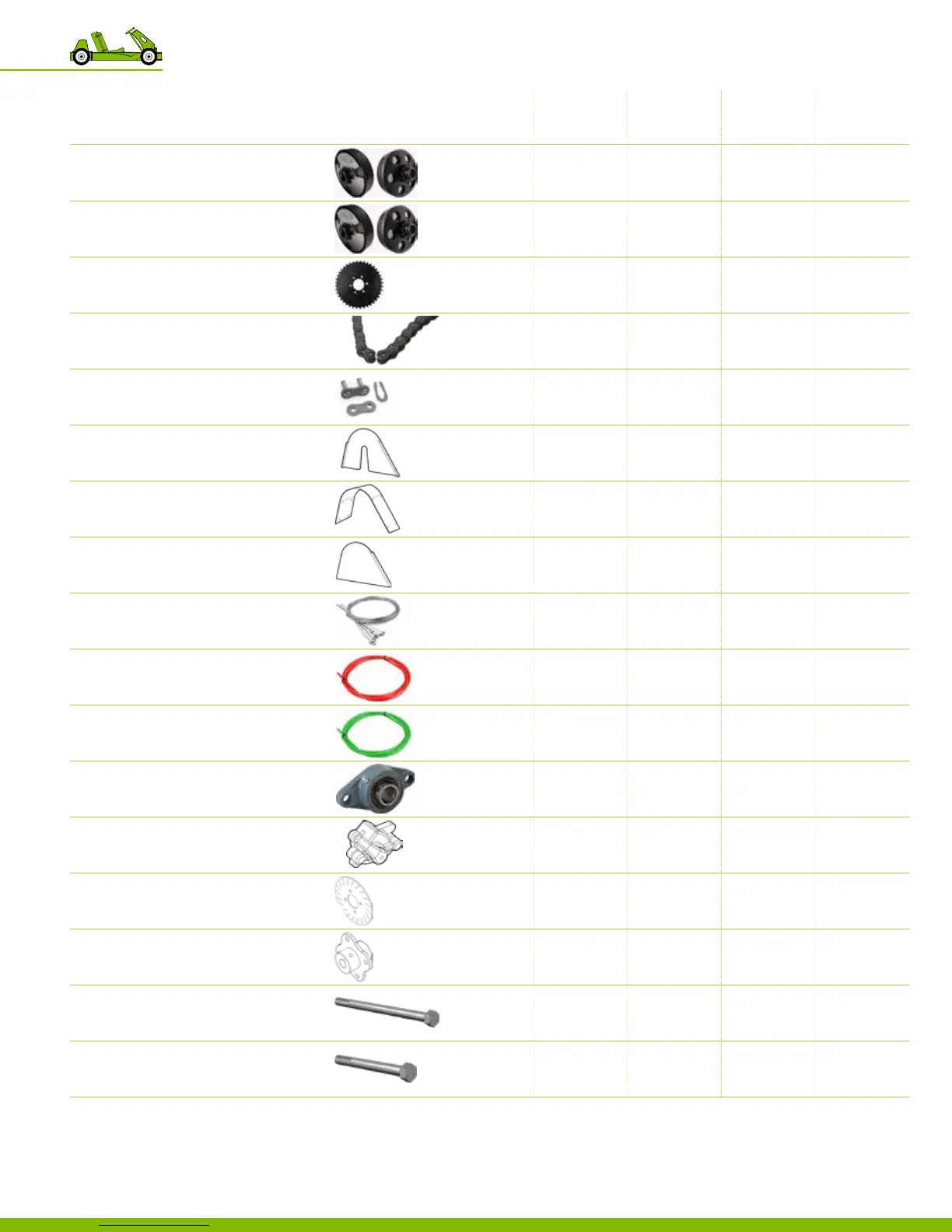

List of loose contents
2.5 HP 4.0 HP 4.0 HP 4.0 HP 4.0 HP
SINGLE WHEEL SINGLE WHEEL SINGLE WHEEL LIVE AXLE LIVE AXLE
№
KIT DESCRIPTION 10” WHEELS 10” WHEELS 12” WHEELS 10” WHEELS 12” WHEELS
12576
Clutch
#35 Chain, 11 Tooth Pulley for 5/8” D
2.5 HP MODEL
1
― ― ― ―
12577
Clutch
#35 Chain, 12 Tooth Pulley for 3/4” D
4.0 HP MODEL
―
1 1 1 1
12522
Sprocket
#35 Chain, 60 Tooth, 5/8” D bore
1 1 1 1 1
12524
Roller Chain
#35 Chain, 29‑5/8” L
1 1 1 1 1
12534
Master Chain Link
#35 Roller Chain connector
1 1 1 1 1
12005
Part 56
Clutch Guard Side
Engine Mounting Plate
1 1 1 1 1
12006
Part 57
Clutch Guard Top
Top Cover
1 1 1 1 1
12007
Part 58
Clutch Guard Cover
Outside Cover
1 1 1 1 1
12525
Control Cable
1/16” D, throttle & brake control cable
2 2 2 2 2
12527
Red Throttle Cable
Brake conduit, 5’ L
1 1 1 1 1
12528
Green Throttle Cable
Gas conduit, 6’ L
1 1 1 1 1
12521
VXB Mounted Bearing
5/8” ID
3 3 3 3 3
12531
Brake Caliper
1 1 1 1 1
12532
Brake Disc
1 1 1 1 1
12533
Brake Disc Hub
1 1 1 1 1
12502
Long Hex Bolt
Grade 5, 5/8”‑11, 11” L
SINGLE WHEEL KIT
1 1 1
― ―
12503
Short Hex Bolt
Grade 5, 5/8”‑11, 6.5” L
4 4 4 4 4
