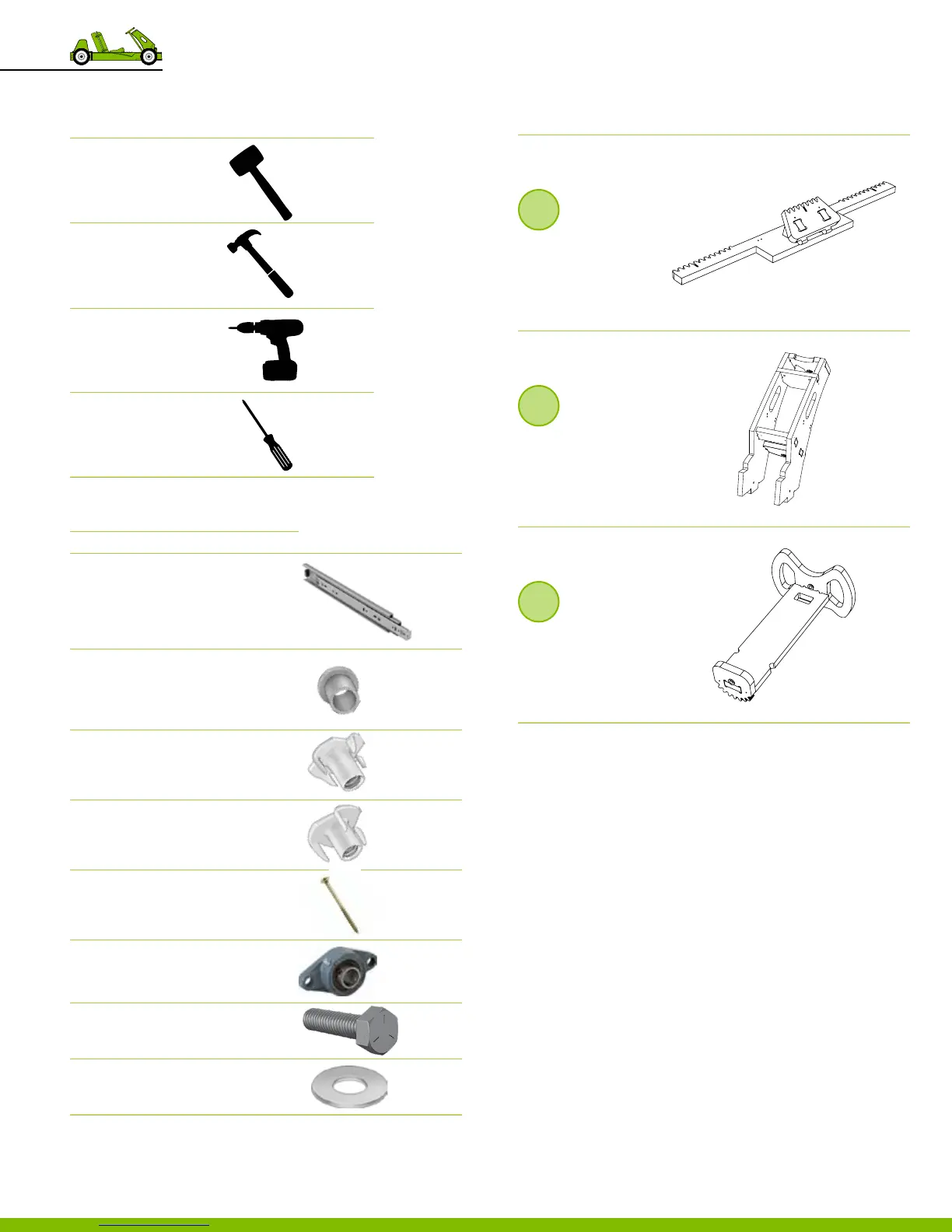

Flatworks plyfly - Recommended Tools; Required Hardware; Required Assemblies

150718 PL YFLY rev A_Frame | Aug us t 7, 20 15 5:0 6 P M
Recommended tools
DESCRIPTION REFERENCE
Dead blow Hammer
or mallet
Hammer
Electric Driver
Screwdriver
Required hardware
№ DESCRIPTION
REFERENCE
1 Drawer Slide
Hardware included, 10” L
P N 125 0 8
Large Metal Bushing
Flanged, 3/4” OD, 5/8” ID
5
SINGLE WHEEL KIT P N 125 0 4
4 LIVE AXLE KIT P N 125 0 4
10 Large Tee Nut
Zinc Plated, 3/8”‑16
P N 125 45
10 Small Tee Nut
Zinc Plated, 5/16”‑18
P N 12510
30 Spax Screw
#8, 1‑1/2” L
P N 12519
3 VXB Mounted Bearing
5/8” ID
P N 12521
4 Hex head cap screw
5/16”‑18, 1.25 L
P N 125 43
4 Flat Washer
5/16” ID, 7/8” OD
P N 12516
Required assemblies
DESCRIPTION REFERENCE
1
Steering rack
Assembly
Parts 9‑12
2
Fixed steering column
Assembly
Parts 13‑18
3
Steering column
Assembly
Parts 19‑21
30
9 Frame Assembly
