Flatworks plyfly - Part 7 Install the Engine and Drive Train

150718 PLYFLY rev A_GoKart | Aug ust 7, 2 015 5 :08 PM

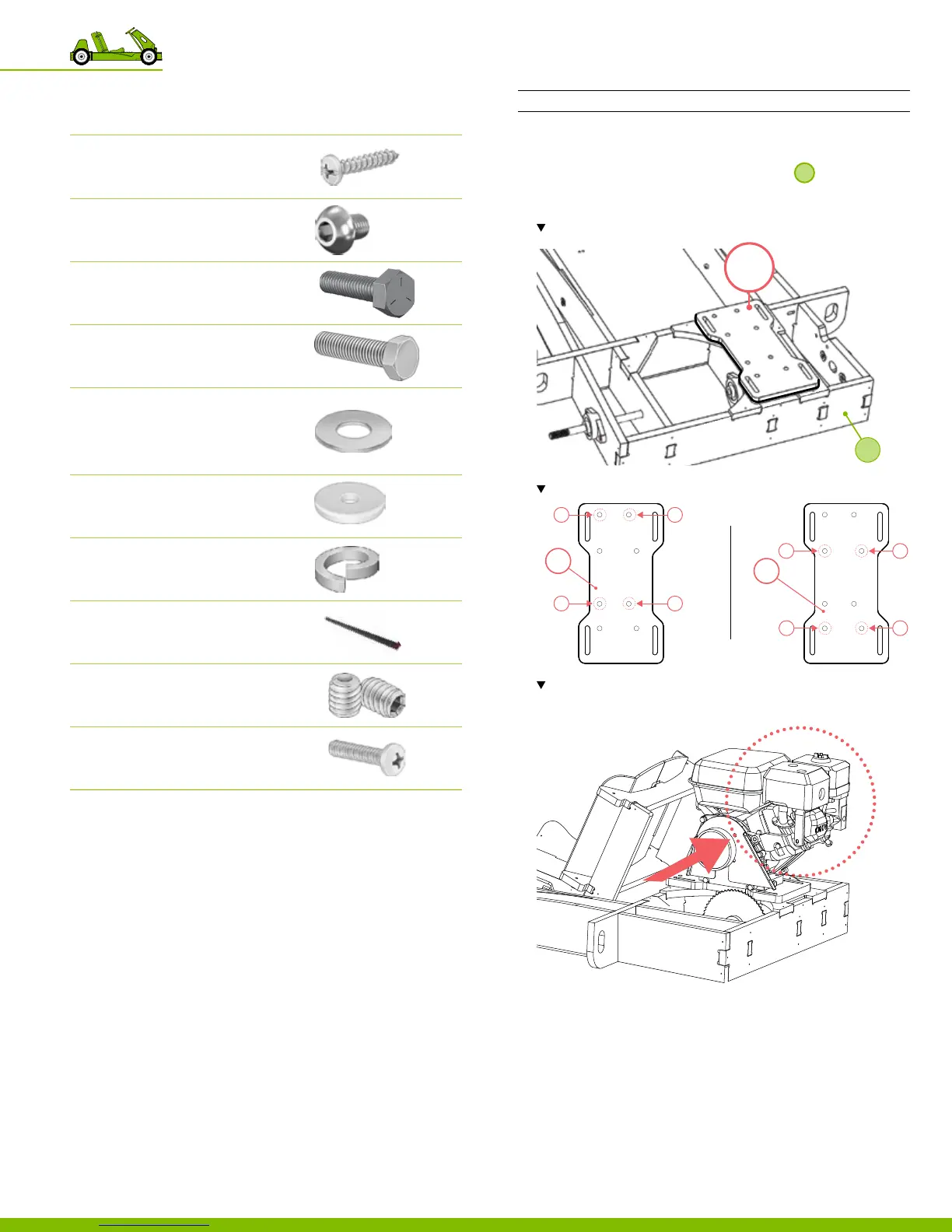

Required hardware
№ DESCRIPTION REFERENCE
8 Sheetmetal Screw
Galvanized, #6
P N 125 51
5 Button Socket Head Cap Screw
Zinc Plated, Steel, M8, 12mm L
TOTAL OF 5 PROVIDED PN 12515
1 Hex head cap screw
5/16”‑18, 1.25 L
4.0 HP MODEL PN 125 43
1 Hex Cap Screw
1/4”‑20, 1” L
2.5 HP MODEL PN 12554
1 Flat Washer
5/16” ID, 7/8” OD
P N 12516
1 Fender washer
5/16” ID, 1‑1/8” OD
PN 12555
1 Lock washer
5/16” ID
1 Clutch Key
3/16”, 1/2” L
P N 125 57
2 Set Screw
Clutch
P N 125 63
1 Pan head
M6, 12 mm L
4.0 HP MODEL PN 125 64
Part 7 Install the engine and drive train
The engine arrives with no oil, no conguration is required.
INSTRUCTION
1. Stand the engine on part 50 located on
9
,
aligning the engine mounting holes to the tee nut pattern
(installed previously) appropriate for the engine model.
Note the location of the engine mount.
Note the location of the tee nut bolting pattern on part 50.
Note the direction and orientation of the engine within the go-kart.
2. For next installation step:
‒
2.5 HP MODEL continue to step 3.
‒
4.0 HP MODEL continue to step 4.
50
9
2
1
4
3
2.5 HP
4.0 HP
2
1
4
3
50
50
52
10 Putting the go‑kart together
