Chapter 10
7
PART

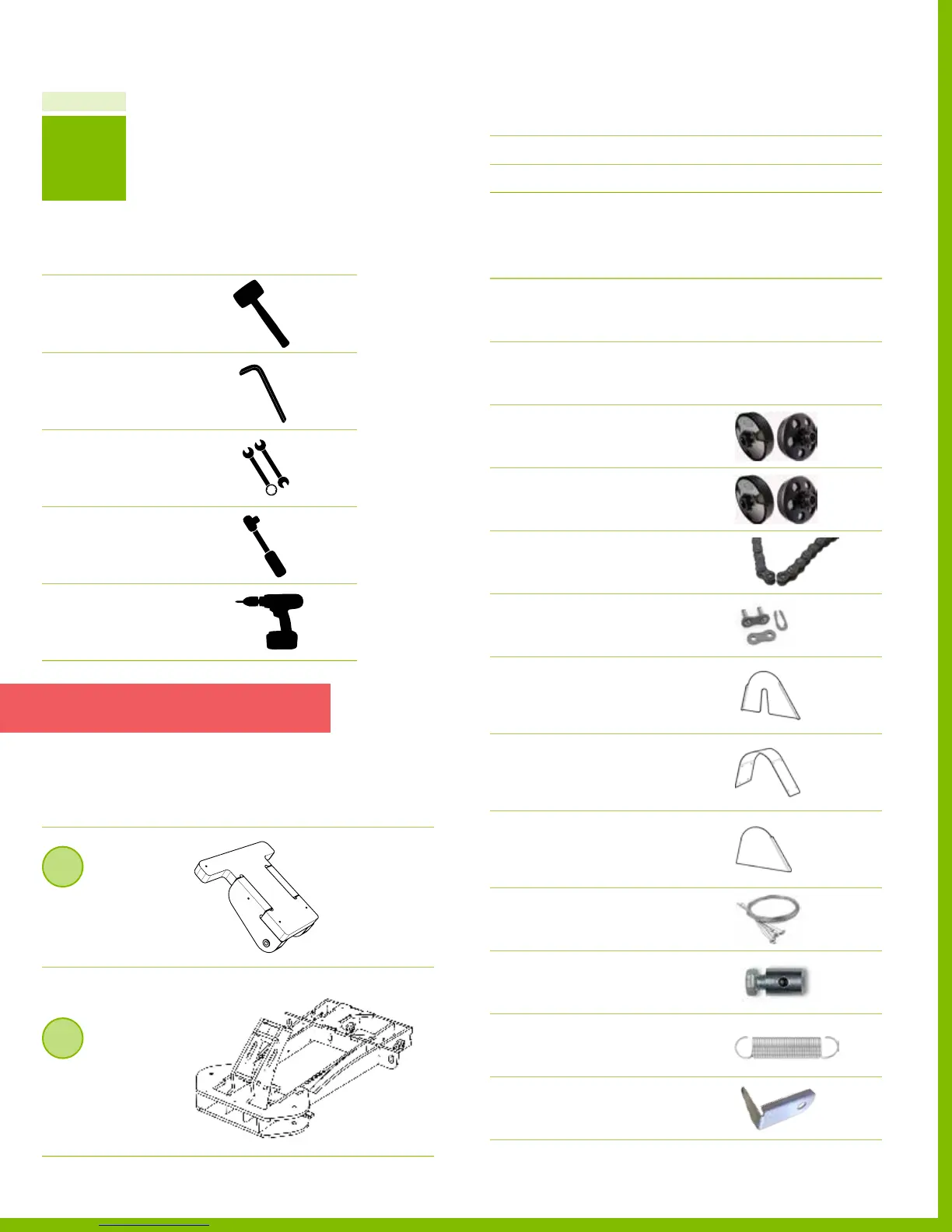

Recommended tools
DESCRIPTION IMAGE REFERENCE
Dead blow Hammer
or mallet
Metric Allen Wrench
included with mounted bearing
Wrench
Socket Wrench
Electric Driver
Required assemblies
DESCRIPTION REFERENCE
5
Gas Pedal
Assembly
Parts 34, 36‑37
9
Frame
Assembly
PARTS 21‑28
Required but not provided
№ DESCRIPTION REFERENCE
Oil Type & Amount
TYPE & AMOUNT
Gas Type
TYPE
Required hardware
№ DESCRIPTION REFERENCE
1
Gas Powered Engine
2.5 HP MODEL
Box 2
1
Gas Powered Engine
4.0 HP MODEL
Box 2
1 Clutch
#35 Chain, 11 Tooth Pulley for 5/8” D
2.5 HP MODEL P N 12576
1 Clutch
#35 Chain, 12 Tooth Pulley for 3/4” D
4.0 HP MODEL PN 1257 7
1 Roller Chain
#35 Chain, 29‑5/8” L
P N 12524
1 Master Chain Link
#35 Roller Chain connector
P N 125 34
1 Part 56
Clutch Guard Side
Engine Mounting Plate
P N 12005
1 Part 57
Clutch Guard Top
Top Cover
P N 12006
1 Part 58
Clutch Guard Cover
Outside Cover
P N 12007
1 Control Cable
1/16” D, throttle & brake control cable
PN 12525
1 Throttle cable clamp
P N 125 37
1 Extension Spring
Black‑Oxide, Precision
P N 125 60
1 Throttle Return Clip
4.0 HP MODEL
P N 125 61
Note Be sure not to lose attached key,
set screws and bolt to hold clutch in place.
51
PlyFly Go‑Kart Instruction Guide • 2015 Release
