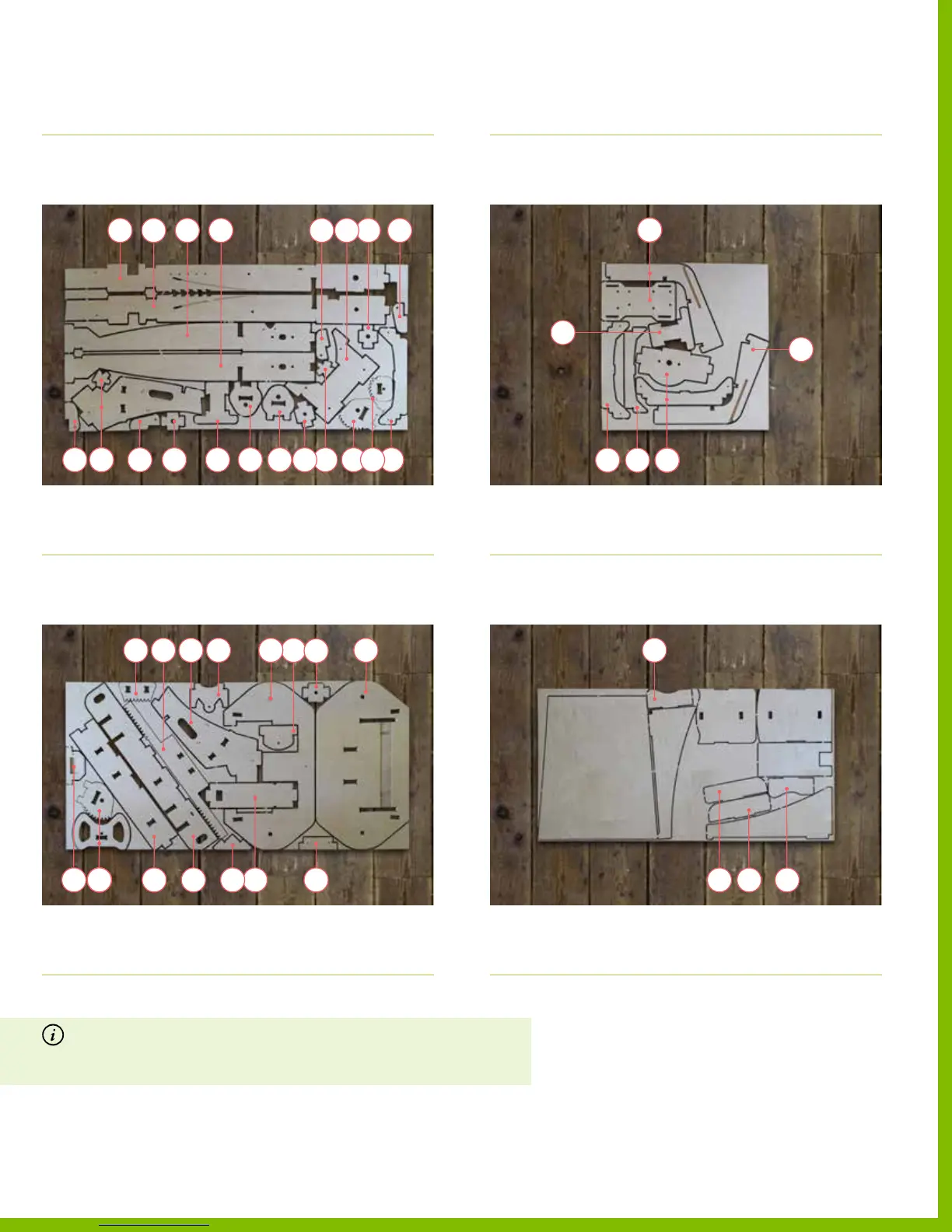

Visual reference of the plywood sheets
DESCRIPTION REFERENCE
Sheet 1
3/4” Plywood Sheet
24
10913 34
38 39
3736
3
61874 20
4941 40 43 42
‒ Parts 1, 3‑4
‒ Parts 6‑10
‒ Part 13
‒ Parts 20
‒ Parts 24
‒ Parts 34
‒ Parts 36‑43
‒ Parts 49
Sheet 2
3/4” Plywood Sheet
12 11 15 1814
1716
2
5521 19
45 44
46 5248
‒ Parts 2, 5
‒ Parts 11‑12
‒ Parts 14‑18
‒ Parts 20‑21
‒ Parts 44‑46
‒ Parts 48
‒ Parts 52
Visual reference of the plywood sheets
DESCRIPTION REFERENCE
Sheet 3
3/4” Plywood Sheet
22
23
252726
35
50
47
‒ Parts 22‑23
‒ Parts 25‑27
‒ Parts 35
‒ Part 47
‒ Parts 50
Sheet 4
1/4” Plywood Sheet
31
302829
‒ Parts 28‑33
‒ Parts 51
‒ Parts 53‑55
Note If you received a 1/4” plywood sheet that is nished on one side and you
intend to paint the Plyy go-kart seat or fairings; reverse wooden parts 28-33 and
parts 53-55 (so the unnished side is outward facing and ready to receive paint).
For a complete list of wooden parts, go to “List of the wooden parts” on page 62.
61
