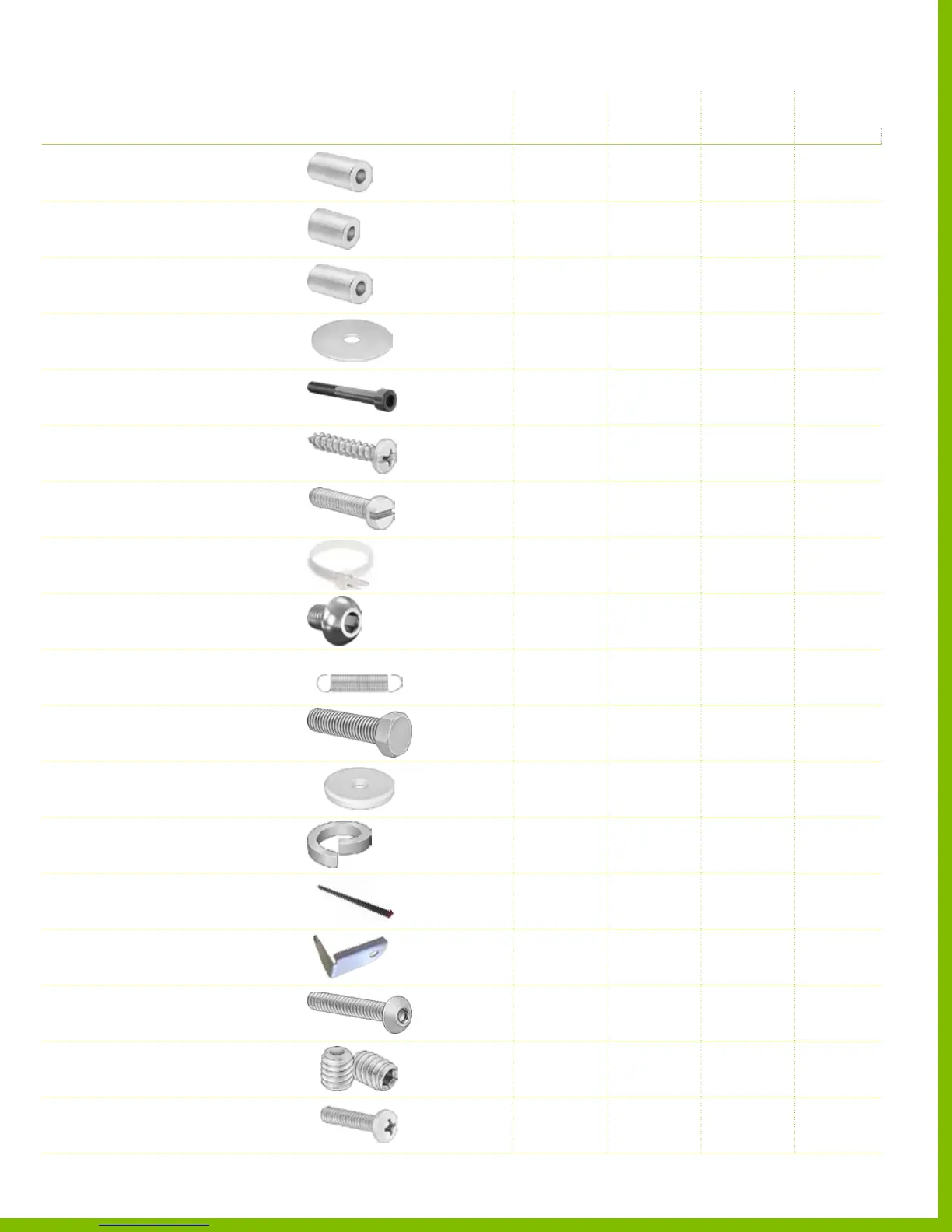

List of the packaged contents
2.5 HP 4.0 HP 4.0 HP 4.0 HP 4.0 HP
SINGLE WHEEL SINGLE WHEEL SINGLE WHEEL LIVE AXLE LIVE AXLE
№
KIT DESCRIPTION 10” WHEELS 10” WHEELS 12” WHEELS 10” WHEELS 12” WHEELS
12546
Nylon Spacer
3/4” OD, 3/8” ID, 1‑1/4” L
1 1 1 1 1
12547
Short Aluminum Spacer
1/2” OD, 1/4” ID, 7/8” L
1 1 1 1 1
12548
Long Aluminum Spacer
1/2” OD, 1/4” ID, 1‑1/16” L
1 1 1 1 1
12549
Oversized Flat Washer
Zinc, M6
2 2 2 2 2
12550
Socket Head Cap Screw
Black oxide, M6, 55mm L
2 2 2 2 2
12551
Sheetmetal Screw
Galvanized, #6
8 8 8 8 8
12553
Fillister Head Screw
5/16”‑18, 3/4” L
2 2 2 2 2
12558
Zip Tie
10lb Nylon, White, 7/8” D, 4” L
6 6 6 6 6
12559
Button Socket Head Cap Screw
Zinc Plated, Steel, 5/16”‑24, 1/2” L
4 4 4 4 4
12560
Extension Spring
Black‑Oxide, Precision
1 1 1 1 1
12554
Hex Cap Screw
1/4”‑20, 1” L
2.5 HP MODEL
1
― ― ― ―
12555
Fender washer
5/16” ID, 1‑1/8” OD
1 1 1 1 1
12556
Lock washer
5/16” ID
1 1 1 1 1
12557
Clutch Key
3/16”, 1/2” L
1 1 1 1 1
12561
Throttle Return Clip
4.0 HP MODEL
―
1 1 1 1
12562
Button Head Cap Screw
5/16”‑24, 3/4” L
―
1 1 1 1
12563
Set Screw
Clutch
2 2 2 2 2
12564
Pan head
M6, 12 mm L
4.0 HP MODEL
―
1 1 1 1
71
PlyFly Go‑Kart Instruction Guide • 2015 Release
