8 Installation of FLUXUS ADM 8127B FLUXUS ADM 8027, F801, ADM 8127B
UMFLUXUS_F8V4-6-1EN, 2018-10-10 49
8 Installation of FLUXUS ADM 8127B
8.1 Location
• Select the measuring point according to the recommendations in chapter 3 and 5.
• Select the location of the transmitter within the range of the cable of the measuring point.
The ambient temperature at the location has to be within the operating temperature range of the transmitter and the trans-
ducers (see Technical Specification).
If the measuring point is within an explosive atmosphere, the danger zone and gases that may be present have to be de-
termined. The transducers and the transmitter have to be appropriate for these conditions.
8.2 Opening and Closing the Housing
The transmitter has a countersunk screw which has to be unscrewed before the housing can be opened.
After the installation, make sure that the housing is closed correctly and that the countersunk screw is tightened.
8.3 Installation
8.3.1 Wall Installation
• Fix the instrument mounting plate (2) to the wall with the 4 screws (4) (see Fig. 8.1).
• Fix the transmitter to the instrument mounting plate (2) with the 2 screws (3).
8.3.2 Pipe Installation
Installation on a 2" pipe
• Position the shackles (1) at the pipe (see Fig. 8.1).
• Fix the instrument mounting plate (2) to the shackles with the 4 screws (4).
• Fix the transmitter to the instrument mounting plate (2) with the 2 screws (3).
Attention! Observe the "Safety Instructions for the Use in Explosive Atmosphere" (see document SIFLUXUS).
Attention! Observe the "Safety Instructions for the Use in Explosive Atmosphere" (see document SIFLUXUS).

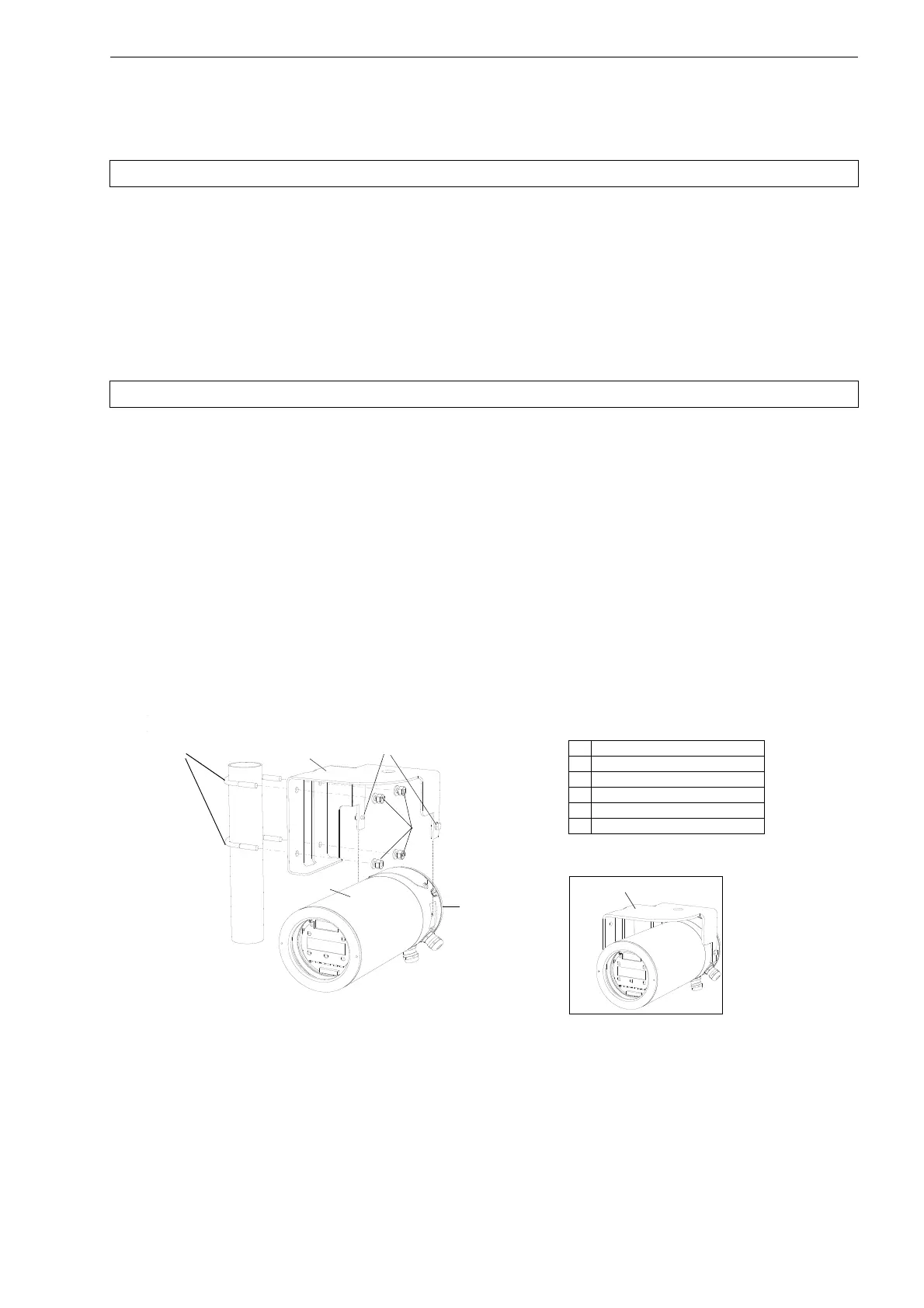

Fig. 8.1: Pipe mounting kit
1
2
1
2
3
4
5
6
1shackle
2 instrument mounting plate
3screw
4screw
5 front plate
6 housing cover
