9 Mounting of the Transducers FLUXUS ADM 8027, F801, ADM 8127B
UMFLUXUS_F8V4-6-1EN, 2018-10-10 71
The cover can be removed from the mounted transducer mounting fixture Variofix C as follows:
• Use a lever tool to remove the cover.
• Insert the lever tool in one of the four openings of the cover (see Fig. 9.48).
• Press the lever tool against the fixture.
• Bend the cover outwards and release it from the anchoring.
• Repeat the steps for the other three openings.
• Remove the cover from the rail.
9.5 Installation of the Transducers for Mines with FLEXIM Clasps for Mines
• Cut the tension straps to the appropriate length.
• Insert approx. 20 mm of the tension strap into the slot of part (1) of the clasp (see Fig. 9.49). Bend the end of the tension
strap back.
• Insert the tension strap into the metal spring.
• Insert the other end of the tension strap into the groove on the upper side of the transducer shoe (see Fig. 9.50).
• Position the clasp on the side of the pipe and place the tension strap around the pipe. Turn the tension strap around the
pipe while placing the transducer on the pipe. The metal spring should be positioned on the pipe at some distance to the
clasp.

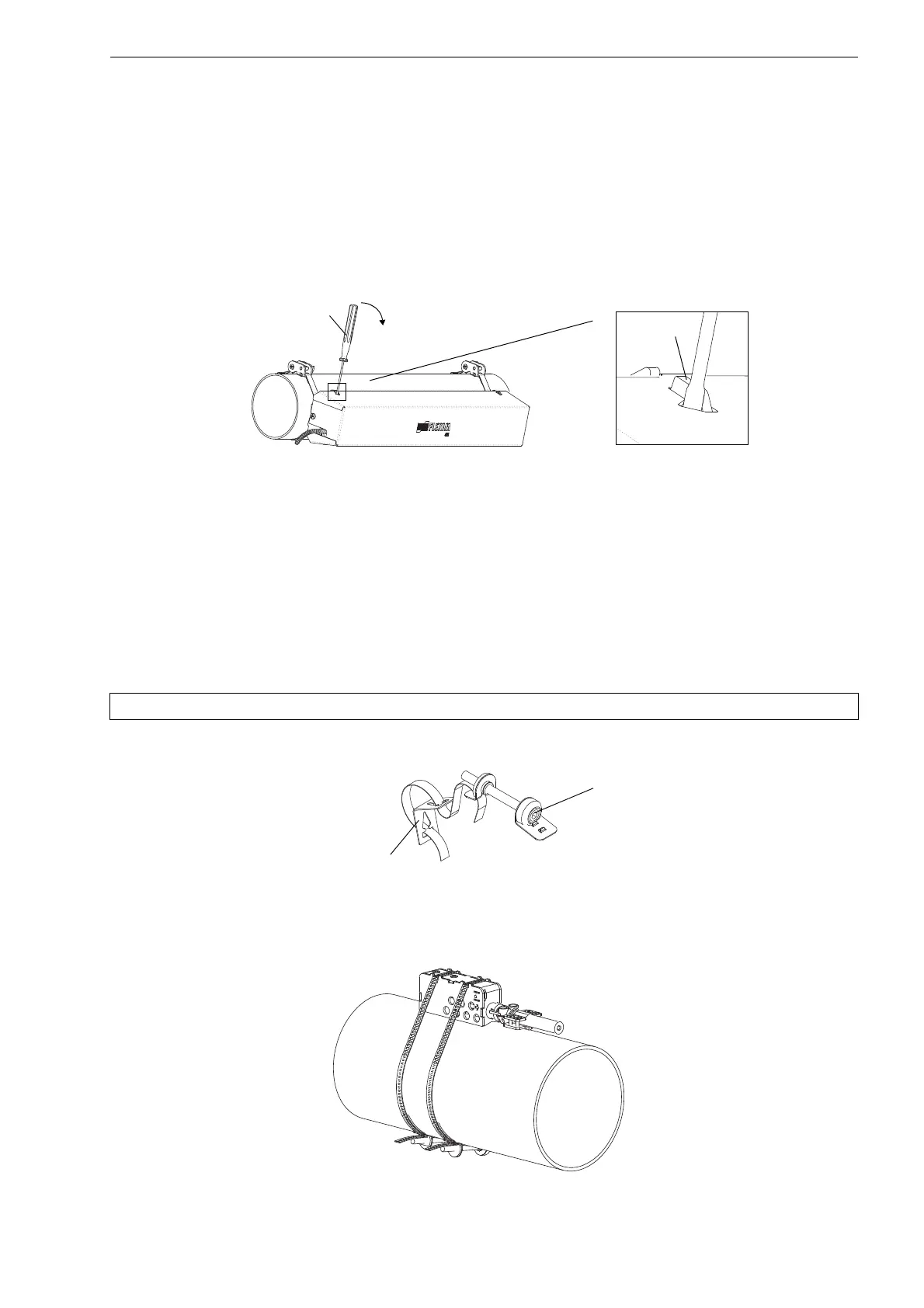

Fig. 9.48: Removal of the cover
Note! The clasp and the metal spring have to be in firm contact with the pipe to ensure a good fixation.
Fig. 9.49: Clasp, metal spring with tension strap
Fig. 9.50: Transducer in the mounting shoe, installed with tension strap and clasp
