9 Mounting of the Transducers FLUXUS ADM 8027, F801, ADM 8127B
UMFLUXUS_F8V4-6-1EN, 2018-10-10 63
• Repeat the steps for fixing the second rail (see Fig. 9.26).

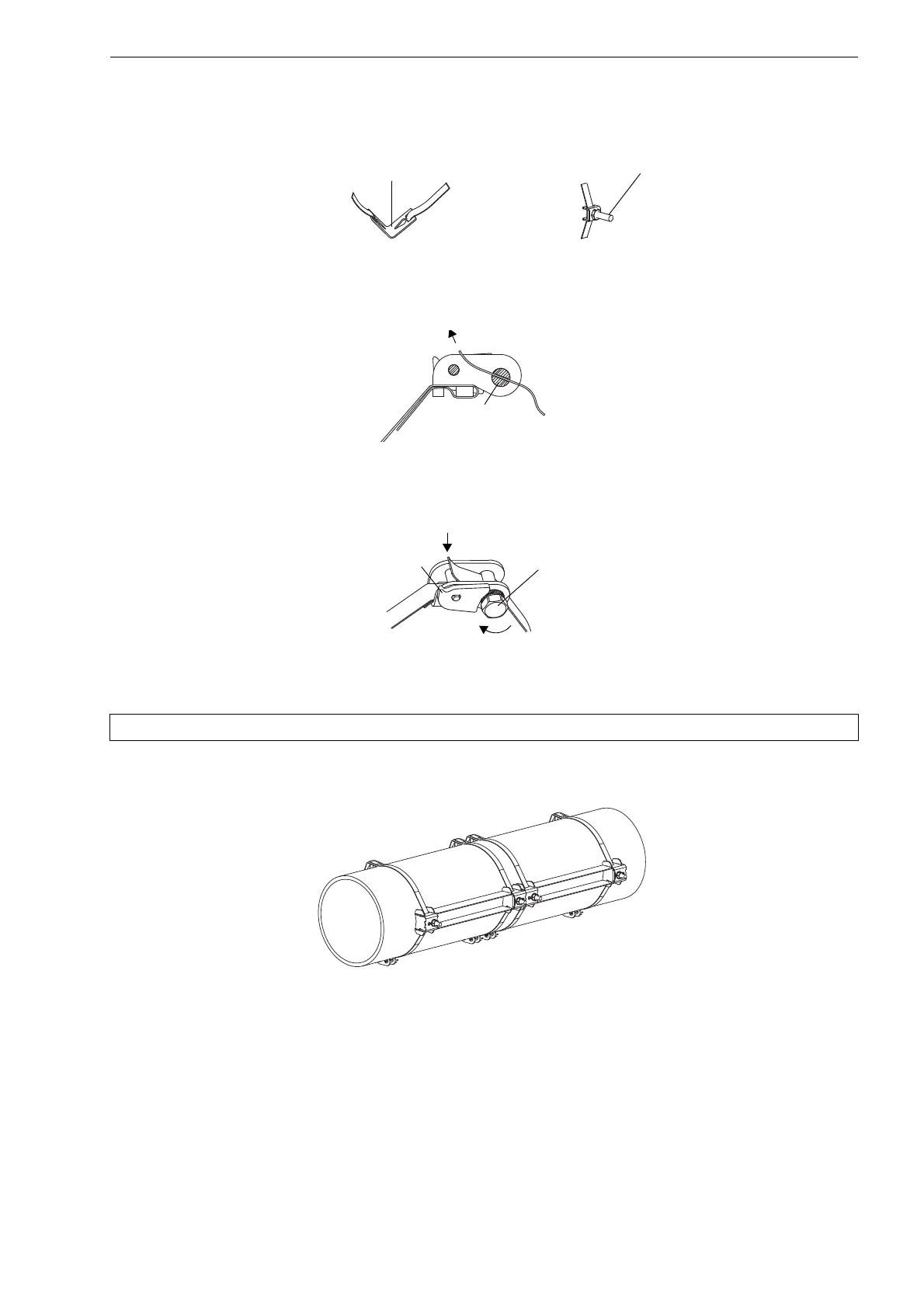

Fig. 9.23: Tension strap with the metal spring and the tension strap clamp
Fig. 9.24: Ratchet clasp with tension strap
Fig. 9.25: Ratchet clasp with tension strap
Note! To release the screw and the tension strap, press the lever down (see Fig. 1.21).
Fig. 9.26: Pipe with two rails
metal spring
tension strap
3
lever
sense of rota-
cut
screw of
the clasp
