9 Mounting of the Transducers FLUXUS ADM 8027, F801, ADM 8127B
UMFLUXUS_F8V4-6-1EN, 2018-10-10 67
• Position the metal spring (if mounted) and the tension strap clamp (see Fig. 9.37):
– On a horizontal pipe, mount the tension strap clamp on the side of the pipe, if possible.
– Mount the metal spring (if necessary) on the opposite side of the tension strap clamp.
• Insert the long end of the tension strap into the second slot of the tension strap clamp (see Fig. 9.37 a).
• Tighten the tension strap and bend it.
• Bend both ends of the tension strap (see Fig. 9.37 b).
• Repeat the steps for the second tension strap. Position the tension strap at the distance s (see Fig. 9.37).
• Put the rail on the tension strap clamps.
• Use the screws to fix the rail to the tension strap clamps (see Fig. 9.38).
• Tighten the screws.

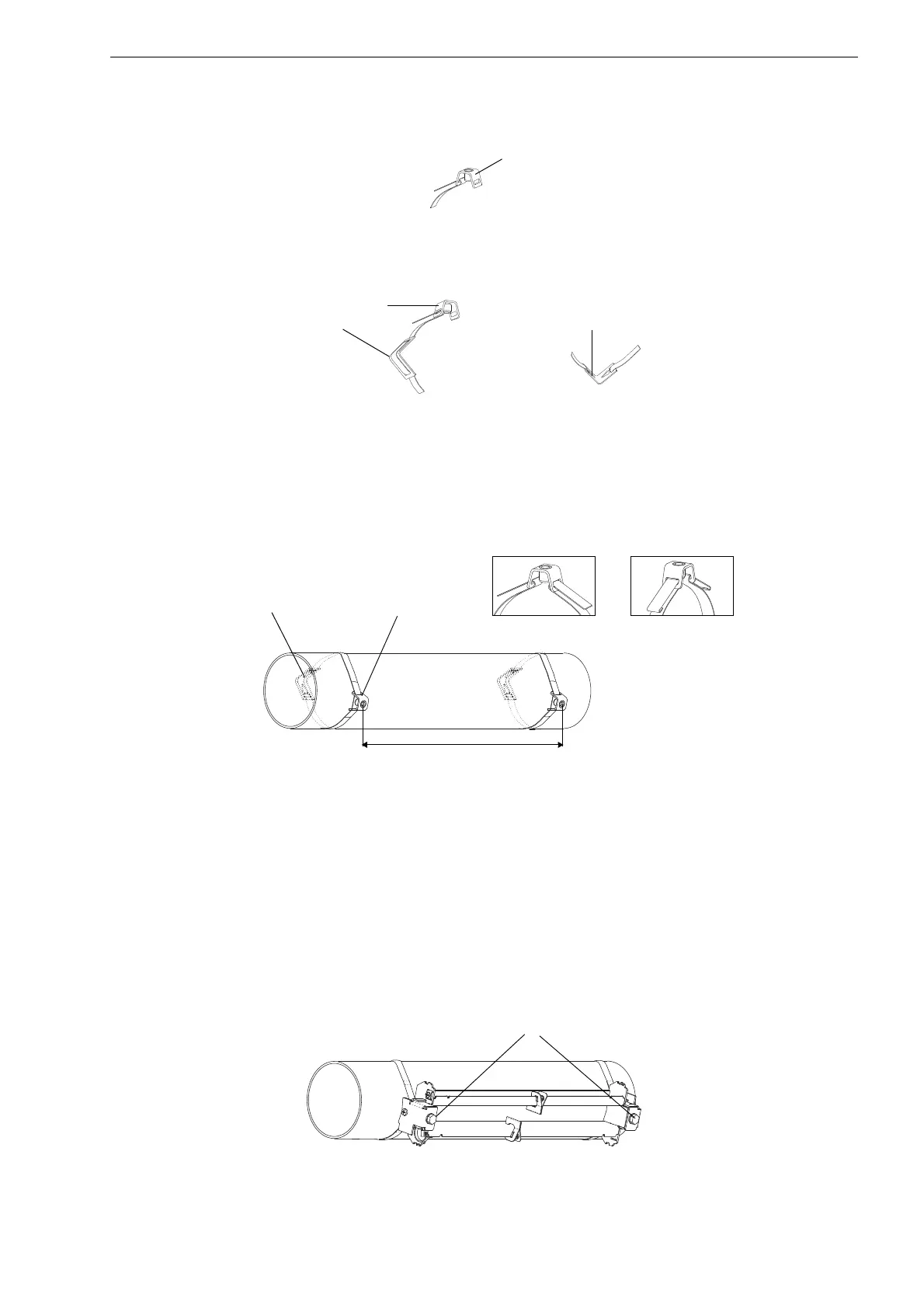

Fig. 9.35: Tension strap with tension strap clamp
Fig. 9.36: Tension strap with the metal spring and the tension strap clamp
Fig. 9.37: Tension strap with the metal spring and the tension strap clamp on the pipe
Fig. 9.38: Rail on the pipe
s
ab
tension
strap
metal spring
s = length of the rail – 33 mm
