9 Mounting of the Transducers FLUXUS ADM 8027, F801, ADM 8127B
UMFLUXUS_F8V4-6-1EN, 2018-10-10 69
• Put the rail on the tension strap clamps (see Fig. 9.44).
• Fix the rail to the tension strap clamps with the screws.
• Tighten the screws.

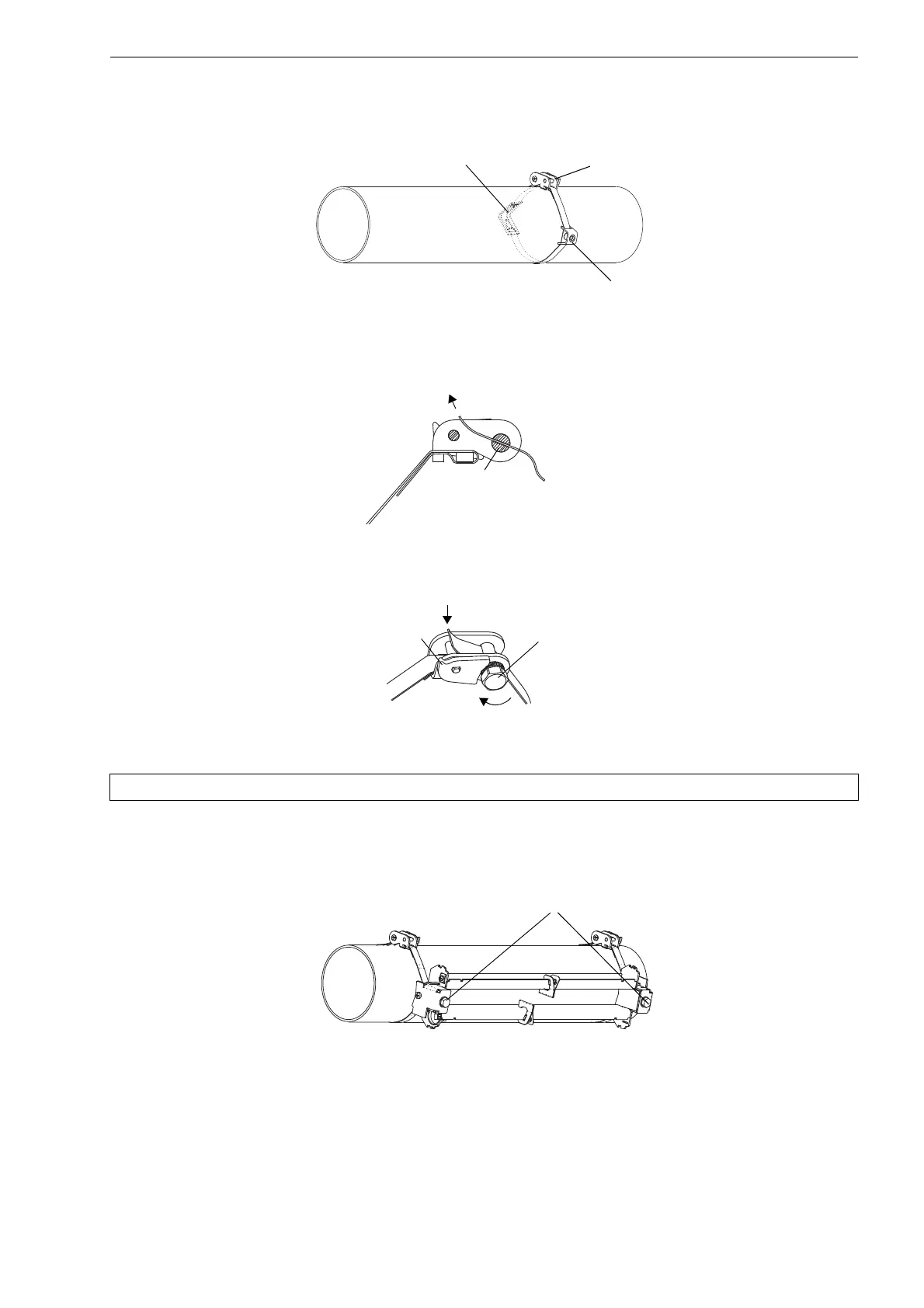

Fig. 9.41: Tension strap with the metal spring, the ratchet clasp and the tension strap clamp on the pipe
Fig. 9.42: Ratchet clasp with tension strap
Fig. 9.43: Ratchet clasp with tension strap
Note! To release the screw and the tension strap, press the lever down (see Fig. 9.43).
Fig. 9.44: Rail on the pipe
tension strap clamp
metal spring
ratchet clasp
3
lever
sense of rotation
cut
screw of
the clasp
bolts
